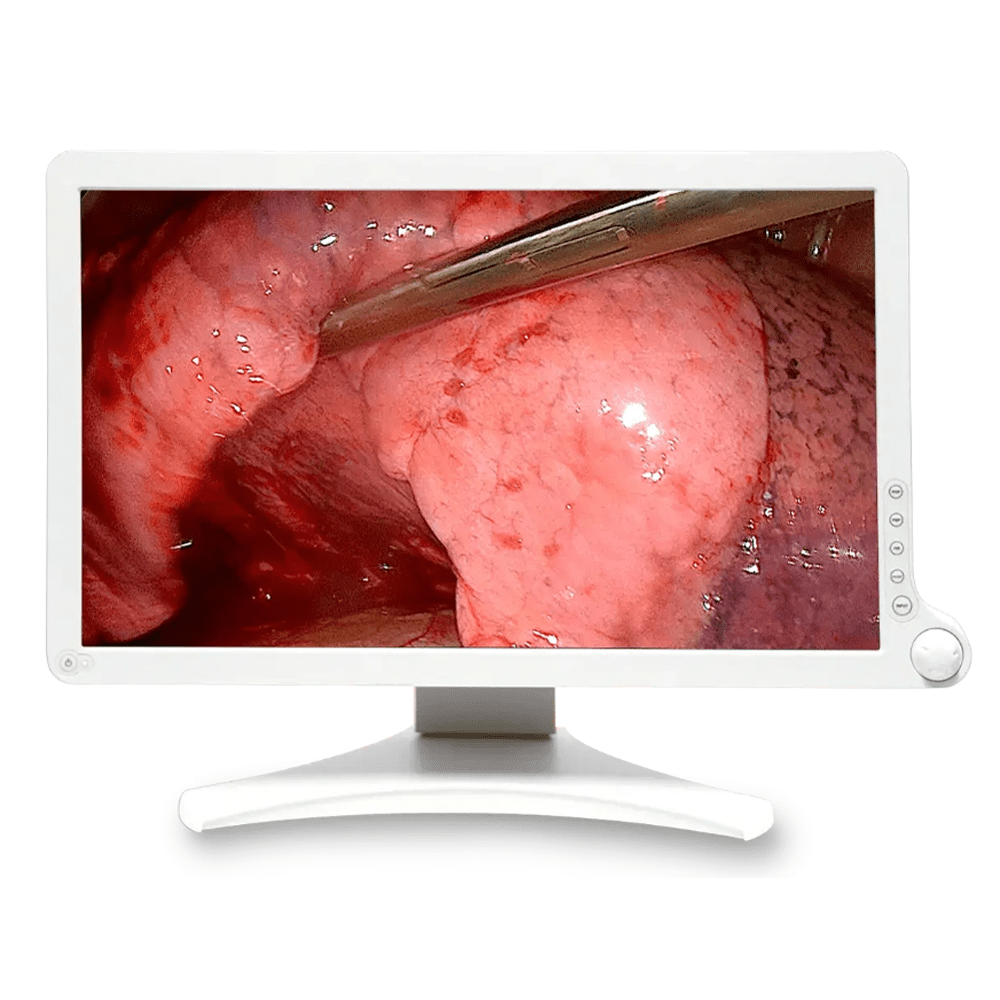

Barco AMM 215WTD 21.5″ FHD Surgical Display

  • Compact size for routine screening procedures in GI Endoscopy or Colonoscopy
  • High-quality, cost-effective
  • Antimicrobial Seolforbio Technology™
Article number: 215EFZEU

Description

Barco AMM 215WTD 21.5″ FHD Surgical Display

Major quality in a compact size

With its compact 21.5″ size and high pixel density, the Barco AMM 215WTD is the perfect match for endoscopy cameras. Featuring true 10-bit real-time processing, motion adaptive SD and HD de-interlacing, advanced 3D noise reduction, and accurate chromatic data reproduction, this surgical display meets the highest image quality standards.

All-round connectivity

The AMM 215WTD supports a broad range of input types including VGA, DVI, Composite & S-Video, RGB, Component, HD/SD SDI.

Safety guaranteed

The 21.5″ surgical display comes with proprietary Antimicrobial Seolforbio Technology™ to prevent bacterial cultivation and odor on the LCD display. This plastic injection technology makes the AMM215WTD compliant with the ISO22196 standard for antimicrobial activity of antibacterial treated plastics.

  • Superb quality high resolution LCD
  • Energy-efficient LED backlight
  • Wide range of inputs supported
  • Sealed design to meet IP23
  • Antimicrobial Seolforbio Technology™
  • Arm mountable VESA compliance
  • Picture-by-Picture mode with independent adjustment
  • Protective filter
  • DC powered
  • Intuitive rotary control

About Barco

Specifications



Screen technology TFT AM LCD / LED Backlight
Active screen size (diagonal) 21.46" inches (545.2 mm)
Active screen size (H x V) 475 x 267 mm (18.7 x 10.5")
Aspect ratio 16:9
Resolution 1920x1080
Pixel pitch 0.2475 mm
Color support 16.7 million
Viewing angle 178°
Luminance 250 cd/m2
Contrast ratio 1000:1
Video inputs 2xDVI-I, VGA, RGBS / YPbPr, S-video, Composite video, 3G-SDI
Video outputs SDI / S-video /Composite Video, RGBS / YPbPr
External power supply AC 100 ~ 240V 50-60Hz, 2.0A DC 13V, 6.92A
Power consumption 50W
Dimensions (W x H x D) 662 x 630 x 232 mm (packaged)
Net weight Monitor: 5.46Kg (approximately) AC adaptor: 720g
Mounting standard VESA (100 x 100 mm)
Screen protection Double-side anti-reflective PMMA protective cover
Operating temperature 32° ~ 95°F (0°~ 35°C)
Storage temperature -4° ~ 140°F (-20° ~ 60°C)
Operating humidity 20% ~ 80%, non-condensing
Storage humidity 10% ~ 85%, non-condensing
Certification and compliance FDA & EC: Endoscopic and Surgical imaging (Class I) Safety: UL (UL60601-1), cUL (CAN/CSA-C22.2 No.6011-M90), CE
(EN60601-1), AS/NZS 3200-1-0. CCC (GB4943-2001), CB-ITE (IEC60950-1), IP23 Compliance EMC: FCC (Part Class B),
CE (EN60601-1-2), AS/NZS 3200-1-2, VCCI (Class B), CCC (GB9254, GB17625.1)
Warranty 2 years
