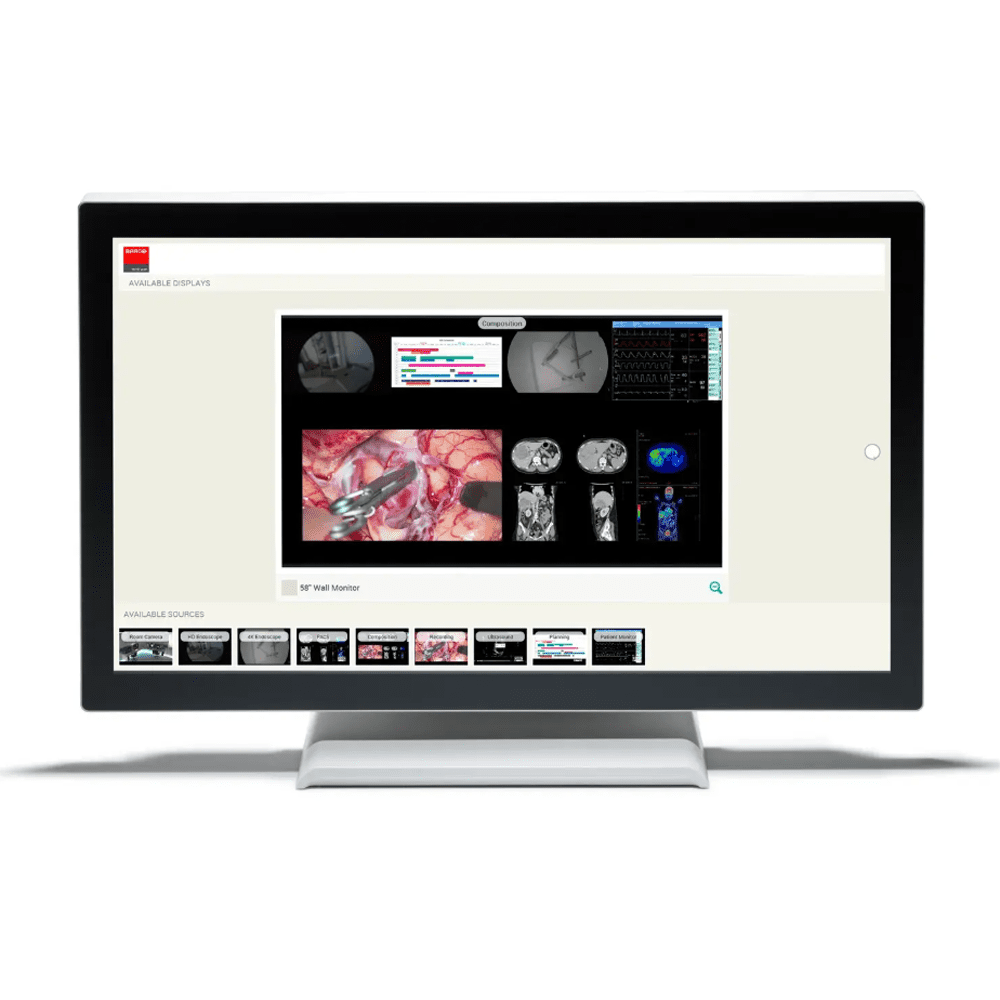

Barco AMM 215WTTP 21.5″ FHD Medical Touchscreen Display

  • Accurate touchscreen
  • Ergonomic and easy to operate
  • Medically certified
Article number: 215ETTWZE
SKU: BARCO-AMM215WTTP Categories: , , Brand:

Description

Barco AMM 215WTTP 21.5″ FHD Medical Touchscreen Display

The Barco AMM 215WTTP is a 21.5” touchscreen designed for medical professionals that demand accurate and reliable touch User Interface interaction.

Ergonomic interaction

The AMM 215WTTP has been built with ergonomics in mind. The 21.5” screen is easy to operate and the perfect size and format for a variety of applications, including the digital OR and medical carts. Thanks to its Full HD resolution, clinicians have access to rich and detailed information.

The display features Projected Capacitive Touch screen technology with multi- and single-touch functionality. It allows clinicians to smoothly interact with the user interface on the monitor, even when wearing surgical gloves.

Designed for medical environments

The AMM215WTTP is medically certified and fit for use in a highly demanding, mission-critical environment, such as the operating room. The bezel-free design allows for easy cleaning and disinfection, a major prerequisite in all surgical and clinical environments.

Easy to install

The AMM 215WTTP allows for easy installation onto a variety of computing platforms. It is Microsoft® Windows® HID (Human Interface Device) compatible if you use the USB touchscreen interface. No additional software driver is required for general operation of the touchscreen.

  • Project Capacitive touchscreen with multi-touch and gesture input application
  • Full High Definition resolution
  • Medically certified
  • Bezel-free design
  • HID compliant for easy installation & integration on computing devices
  • Easy cleaning
  • Table stand allowing for wide tilt angle
  • VESA mounting holes on touch monitor unit for mounting on surgical boom arms, monitor arm and medical carts
  • Mounting holes on the table stand for various mounting options
  • Multilingual OSD user control

About Barco

Specifications



Screen technology TFT AM LCD / LED Backlight
Active screen size (diagonal) 21.46" inches (545.2 mm)
Active screen size (H x V) 476 x 267 mm (18.7 x 10.5")
Aspect ratio 16:9
Resolution 1920 x 1080
Pixel pitch 0.248 x 0.248 mm
Color support 16.7 million colors
Viewing angle 178° Hor / 178° Ver
Luminance 250 cd/m² (typical)
Contrast ratio 1000:1 (typical)
Touch sensor Projected Capacitive Touch Technology (PCT) 10 points
Video inputs 1xDVI-D
1xVGA (D-Sub 15pin)
Video formats Up to 1920x1080, 60 Hz
31.47-82.3 kHz (Horizontal) 56-75Hz (Vertical)
Interface USB 2.0, type B
Touchscreen driver Windows
Embedded Linux
Apple Mac OS
External power supply AC input: 100 – 240 VAC / 50-60 Hz
DC output: +12VDC / 4.2 A
Power consumption Operating: 27W
Sleep:2 W - Off : 1 W
Dimensions (W x H x D) 518 x 314 x 46 mm
Net weight 7 kg (approx.)
Mounting standard Removable display stand
Operating temperature 0°C-40°C
Storage temperature -20°C-60°C
Operating humidity 20%-80% RH, non-condensing
Storage humidity 10%-80% RH, non-condensing
Certification and compliance CE (Medical Device Class I) and EMC (EN60601-1-2)
UL/cUL (ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1)
FCC (Part 15 Class B)
CCC (GB4943.1, GB9254, GB17625.1)
PSE
Green Compliance:
RoHS, REACH
Warranty 2 years
