Barco AMM240ED

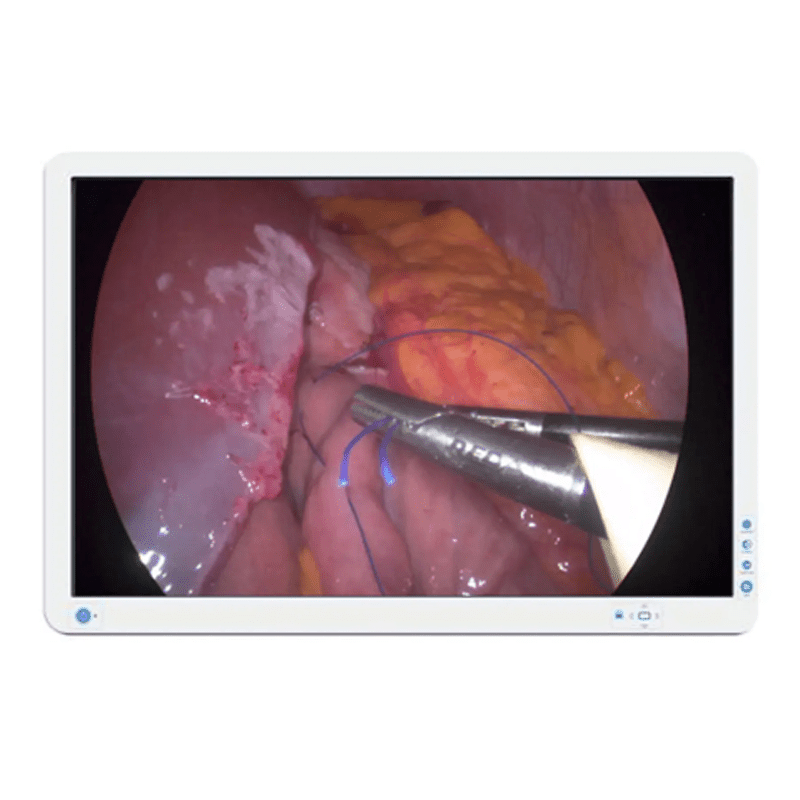

Barco AMM240ED 24″ WUXGA Surgical Display

  • 24″ Surgical Display
  • Built for endoscopy imaging
  • All-round connectivity
  • Safe for near-patient us
Article number: 240EFDZ
SKU: BARCO AMM240ED Categories: , , , , , Brand:

Description

Barco AMM240ED 24″ WUXGA Surgical Display

The Barco AMM240ED is a 24-inch near-patient surgical display with LED backlights, featuring a 1920×1200 resolution. Purpose-built for endoscopy imaging, the AMM240ED is a cost-effective but extremely reliable display. Surgical video and images can be placed in Picture-by-Picture mode with independent adjustments.

All-round connectivity

The AMM240ED supports a broad range of input types including DVI, VGA, RGB, Component & Composite Video as well as HD/SD SDI.

Barco AMM240ED Safe for daily use near patients

Thanks to the sealed design (rated IP22), a protective filter and cable cover, the AMM240ED is safe for use near patients. It also ensures safe and easy mounting onto surgical arms thanks to the VESA compliance.

Hiliex Inc. is a Barco Authorized Reseller

Specifications

Screen technology TFT AM LCD / LED Backlight
Active screen size (diagonal) 611.3 mm (24.07")
Active screen size (H x V) 520.4 x 326 mm (20.46 x 12.83")
Aspect ratio 16:10
Resolution 1920 x 1200
Pixel pitch 0.27 mm
Color support 16.7 Mio (8 bit)
Viewing angle 178° Hor /178° Ver
Luminance 300 cd/m²
Contrast ratio 1000:1
Gamma curve 1.8, 1.9, 1.95, 2.1,2.2, 2.3, 2.4
Front protection screen anti-reflective PMMA protective cover
Video inputs 1xDVI-I
1x HD15
1x Y/C
1x 3G-SDI
1x RGBS / YPbPr
Video outputs 1x DVI-I
1x 3G-SDI
Features Picture in Picture
External power supply AC input : 90-264 VAC / 47-63 Hz auto-switch
DC Output : ±24VDC / 1.7A
Dimensions (W x H x D) 570 x 386.9 x 63.2 mm (22,4 x 15.2 x 2.5")
Net weight 7.35 Kg
Mounting standard 75x75 VESA / 100x100 mm VESA
Operating temperature 10°C-40°C
Storage temperature -18°C-60°C
Operating humidity 25%-75% non-condensing
Storage humidity 15%-90% non-condensing
Certification and compliance Medical Safety Compliance:
CE (Medical Device Class I)
IEC 60601-1: 2012 Edition 3.1
EN 60601-1: 2006 +A1:2013
ANSI/AAMI ES 60601-1: 2005/(R)2012
A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012
CAN/CSA-C22.2 No. 60601-1: 14
AS/NZS 3200-1:1988
CCC (GB4943.1-2011)
CB-ITE (IEC 60950-1:2005 (2nd Ed); Am1:2009 +Am2:2013
Green Compliance:
RoHS-2, REACH, WEEE
Protection rating IP22
Warranty 2 years
