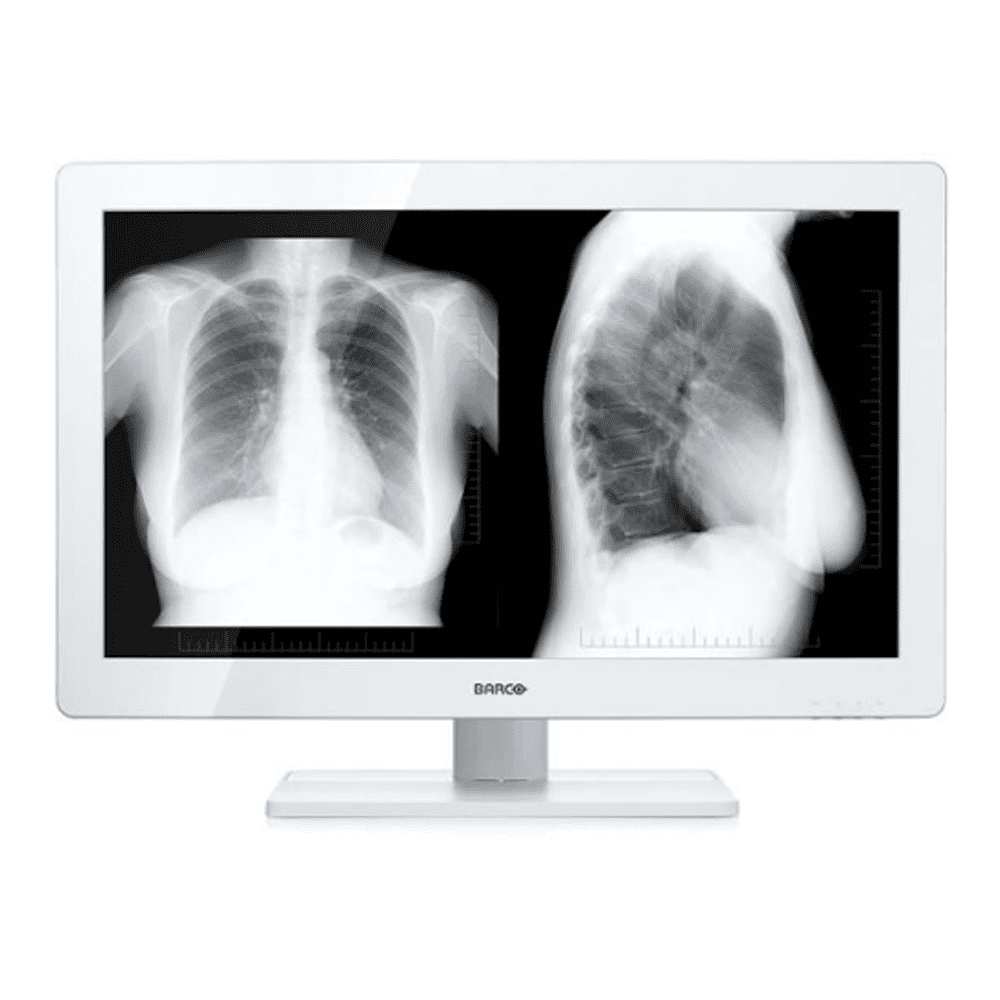

Barco MAAC-2123 24″ FHD All-In-One Display

Workstation and display in one
Built for a wide variety of modality applications
Optional touchscreen for excellent user experience

Article number:
K9309004A – MAAC-2123 5TW: Standard model, P-CAP multi-touch
K9309005A – MAAC-2123 5NW: Standard non-touch model

Description

Barco MAAC-2123 24″ FHD All-In-One Display

Fit for image acquisition in multiple healthcare environments
The Barco MAAC-2123 is a user interface designed for the review of multimodality images
at acquisition systems – both mobile and fixed. It’s an all-in-one 24” device that
combines workstation (PC) and display in one single enclosure, for easy handling. Its
thin and white design makes it easy to include in your healthcare environment.

Flexible and confident use
The display is DICOM-compliant and offers Backlight Output Stabilization and
consistent image quality for confident use. The MAAC-2123 offers an extremely
powerful CPU, which makes it fit for a wide variety of modality applications. Thanks
to its long lifecycle, you’ll be able to use this device with peace of mind for many
years to come!

Optional touchscreen
With the MAAC-2123 5TW, you’ll get the user interface with p-cap multi-touch
screen and anti-glare coated glass, completing an excellent user experience. The
MAAC-2123 5NW is a non-touch version without glass cover.
The MAAC2123 comes with a standard warranty of 2 years, which can be extended
through our ExtendedCare offering. Don’t hesitate to contact us in case you have
any question!

About Barco

Specifications

Screen technology	AHVA ( IPS alike)
Backlight	WLED
Active screen size (diagonal)	23.8” ( 604.7mm)
Active screen size (H x V)	527.04mm(H) x 296.46mm(V)
Aspect ratio (H:V)	16:09
Resolution	1920x1080 60Hz
Color imaging	Yes
Pixel size	0.275mm x 0.275mm
Response time	14ms
Color depth	16.7M colors (true 8 bits)
Brightness	400 nits ( cd/m2) (Typical); 320nits ( Min.)
Contrast ratio	1000:1 (Typical)
Touch screen	For Option: 5TW Projected-Capacitive 10 points Multi Touch, USB interface. Surface Hardness: > 6H (P-CAP)
DICOM calibrated luminance	Light Sensor on the Rear Side of Panel Brightness for Calibration and Light sensor enable spec: 200 cd/m2
CPU	6th Generation Intel® Core™ processor LGA 1151 socket type, Factory default: Intel® Core™ i5-6500TE Processor; 6M Cache, up to 3.30 GHz
Cooling	Smart FAN design
Graphics	Integrated Intel® HD Graphics
Ambient Light Compensation (ALC)	Preset values in OSD
Power	19V DC Input, 6.32A current rating, medical-grade 100V~240V 50/60Hz AC input power supply
Power consumption	45W (typ. WIN10 OS loaded only without peripherals connection) / 3W (stand-by)
Storage capacity	Two Removable 2.5" Storage bay with easy access mechanical lock design Factory default: 1 x 500G SATA HDD
System memory	2 x DDR4-1866/ 2133 SO-DIMM socket, support up to 16GB capacity: Factory default: 1x DDR4 8GB Memory
Operating system	Windows® 10 LTSB 2016 64 bit
I/O ports	5 x LAN Ports: All support PXE and WOL (Factory default PXE Disable) 1 x Display Port (V1.2) 1 x Reset push button 1 x RS232 DB9 Male connector
USB ports	4 x USB 2.0 type A female, stackable 2x2 connector 2 x USB 3.0 type A female, stackable 1x2 connector 1 x Mini USB for Scalar Board Firmware Update 2 x USB 2.0 type A female on side panel
Audio	H110 embedded HDA, with ALC886 codec No Internal Mic 1 x Earphone Jack Support Mic-in / Stereo Audio-out on Bottom I/O Integrated stereo speakers, 2 x 2Watt
Mounting	VESA 100 mm standard; Fixed with 4 screws on stand Stand screws: M4X14mm
Functionality	Height adjustable (100 mm +/-50 mm), title (-8° / +30°) and swivel (-45° / +45°), Pivot (portrait/ landscape; 90°)
Certifications	China RoHS ROHS-2 REACH WEEE
Safety	CE safety (IEC 60601-1:2012 3.1 edition) and EMC (IEC 60601-1-2: 2014, EN 60601-1-2:2015) UL/cUL (ANSI/AAMI ES60601-1, CAN/SA-C22.2 No. 60601-1) FCC (CFR47 part 15 Class B) CCC (GB4943.1, GB9254, GB17625.1)
Mechanical	Material: Plastic
Dust-water protection	IP 33 front ( touch model only)
Operating temperature	0 ~ 35°C (Still Air)
Storage -transport temperature	-20 °C to 60 °C
Storage humidity	20% -85% (non-condensing)
Storage -transport humidity	5% to 85% (non-condensing)
Operating pressure	70 to 106 kPa
Storage -transport pressure	50 to 106 kPa
