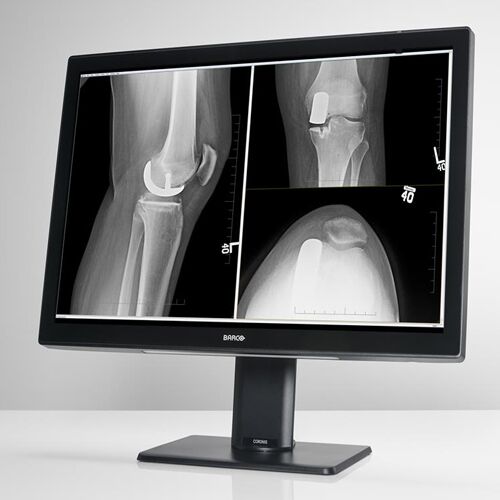

Barco MDCC-4430 Coronis Fusion 4MP Diagnostic Display

Barco MDCC-4430 Coronis Fusion 4MP multimodality diagnostic display system features an exclusive LCD panel with the latest IPS technology, offering best-in-class image quality. Its high brightness and high contrast ratio help unveil the subtlest of details so you can make the most accurate diagnosis. Its large 30″ screen real estate, wide aspect ratio, and full ACR compliance make this display the perfect fit for diagnostic imaging.

  • Color fusion display for flexible multimodality imaging
  • With toolset to boost productivity
  • Automated QA and calibration

Article number:
K9602933 – one 2560*1600 color display MDCC-4430. QAWeb software (download). All cables and accessories
K9602975 – one MDCC-4430 Color Diagnostic Display, one MXRT-6700 card, required cables and accessories
K9602938 – two MDCC-4430 Color Diagnostic Displays, required cables and accessories

Description

Barco MDCC-4430 Coronis Fusion 4MP Diagnostic Display

A brighter diagnosis

Barco MDCC-4430 Coronis Fusion 4MP, Barco’s renowned multi-modality display for radiologists, now comes in a new, energy-efficient, and lightweight design. Bright on so many levels, Coronis Fusion has been designed to help radiologists provide care with confidence. See more details quickly thanks to the high brightness, high contrast ratio, and best-in-class image quality. What’s more, the wide color gamut in combination with SteadyColor™ calibration technology helps you see even more colors and more details on the 30-inch screen.

Smart workflow

Designed for your comfort and to boost productivity, Coronis MDCC-4430 Fusion comes with smart image-enhancing features and clinical workflow tools. The MDCC4430 display’s wide viewing angle combined with the SoftGlow™ task and wall light help reduce eye strain. Thanks to SpotView™, a proven clinical tool, radiologists can further improve detection accuracy as well as reading productivity.

Effortless quality & compliance

Like all of Barco’s medical display systems, Coronis Fusion comes with QAWeb, cloud-based technology for automated calibration, Quality Assurance, and compliance to ensure maximum uptime of the display with no need for human
intervention. A one-stop-shop solution Barco medical display systems include exclusive display controllers that are validated
with the latest workstations and with all major PACS applications. All components are under the full 5-year warranty (including the display backlight) for complete peace of mind.

 A one-stop-shop solution

Barco medical display systems include exclusive display controllers that are validated with the latest workstations and with all major PACS applications. All components are under the full 5-year warranty (including the display backlight) for complete peace of mind.

About Barco

Specifications

Screen technology IPS
Active screen size (diagonal) 772 mm (30.4")
Active screen size (H x V) 655 x 410 mm (25.8 x 16.1")
Aspect ratio (H:V) 16:10
Resolution Native 4MP (2560 x 1600 pixels)
Configurable to 2 x 2MP+ (1280 x 1600 pixels)
Configurable to 2 x 2MP (1200 x 1600 pixels)
Pixel pitch 0.256 mm
Color imaging Yes
Gray imaging Yes
Bit depth 30 bit
Viewing angle (H, V) 178°
Uniformity correction Color PPU
SteadyColor Yes, when used as system with MXRT-x600 display controller or later, using Barco MXRT driver 10.171.1.0 or later and with QAWeb Enterprise 2.2 or later.
Ambient light presets Yes, reading room selection
Ambient light sensor Yes
Front sensor Yes, I-Guard (Coronis)
Maximum luminance (panel typical) 1050 cd/m²
DICOM calibrated luminance 600 cd/m²
Contrast ratio (panel typical) 2000:1
Response time ((Tr + Tf)/2) (typical) 18 ms
Housing color Black / White
Video input signals 2x DisplayPort 1.2
Video output signals 1x DisplayPort (MST)
USB ports 1x USB 2.0 upstream (endpoint)
2x USB 2.0 downstream
1x USB 2.0 downstream with high-power charging functionality
Power rating 100-240 Vac, 50/60 Hz, 3.6-1.6 A
Power consumption 75 W (nominal) @ calibrated luminance of 600 cd/m²
< 0.5 W (hibernate)
< 0.5 W (standby)
Dimensions with stand (W x H x D) 714 x 524~624 x 240 mm
Dimensions w/o stand (W x H x D) 714 x 478 x 74 mm
Dimensions packaged (W x H x D) 800 x 650 x 295 mm
Net weight with stand MDCC-4430: 17.7 kg
MDCC-4430 NC: 16.3 kg
Net weight w/o stand MDCC-4430: 13.1 kg
MDCC-4430 NC: 11.7 kg
Net weight packaged MDCC-4430: 22.3 kg (without optional accessories)
MDCC-4430 NC: 20.9 kg (without optional accessories)
Tilt -5° to +25°
Swivel -30° to +30°
Pivot N/A
Height adjustment range 100 mm
Mounting standard VESA (100 mm)
Screen protection MDCC-4430: Protective, anti-reflective glass cover
MDCC-4430 NC: No glass cover
Recommended modalities All digital images, except digital mammography
Certifications FDA 510(k) K191845
CE0123 (Medical Device)
CCC (China)
INMETRO (Brazil - Product numbers K9301626B(1X), K9301628B(1X)
KC (Korea)
BIS (India)
EAC (Russia, Kazakhstan, Belarus, Armenia and Kyrgyzstan)
Safety specific:
IEC 60950-1:2005 + A1:2009+A2:2013
EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013
IEC 62368-1:2018
EN IEC 62368-1:2020 + A11:2020
IEC 60601-1:2005 + A1:2012+A2:2020
EN 60601-1:2006 + A1:2013 + A12:2014+A2:2021
AAMI ES 60601-1:2005 + A1:2012+A2:2021
CAN/CSA C22.2 No. 60601-1:2014 (Reaffirmed 2022)

EMI specific:
IEC 60601-1-2:2014+A1:2020 (ed.4.1)
EN 60601-1-2:2015+A1:2021 (ed.4.1)
FCC part 15 Class B
ICES-001 Level B
VCCI (Japan)

Environmental:
China Energy Label
EU RoHS
China RoHS
REACH
Canada Health
WEEE
Packaging Directive

Supplied accessories User guide
Documentation disc
System sheet
Video cables
Mains cables
USB cable
Optional accessories Graphics board
Touch pad
QA software QAWeb
Warranty 5 years, including 40000 hrs backlight warranty
Operating temperature 0 °C to 35 °C (10 °C to 30 °C within specs)
Storage temperature -20 °C to 60 °C
Operating humidity 20% to 85% (non-condensing)
Storage humidity 20% to 85% (non-condensing)
Operating pressure 70 kPa minimum
Storage pressure 50 to 106 kPa
