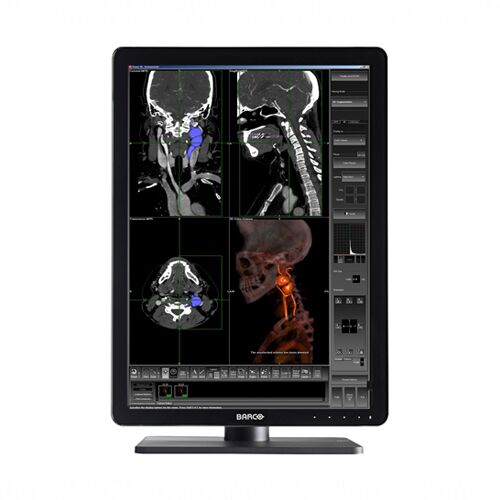

Barco MDNC-3421 Nio Color 3MP LED Color Diagnostic Display

  • Color medical display with 2048 x 1536 resolution
  • Barco LED technology to unveil the subtlest details
  • Front sensor for on-demand image quality checks
  • High-bright and power-efficient LED backlights Accurate grayscale and color rendering
  • Front sensor and MediCal QAWeb for easy DICOM conformance High-performance 3D rendering with full 3D, OpenGL and DirectX support
  • High-performance 3D rendering with full 3D, OpenGL and DirectX support
Article number:
  • K9300340B – Barco MDNC3421 Nio Color 3MP
  • K9602861 – Barco MDNC3421 Nio Color 3MP
  • K9602856 – Barco MDNC3421 LED Nio Color 3MP Diagnostic Display Sys, 3MP 1-Head, No Card
  • K9602989 – Barco MDNC3421 LED Nio Color 3MP Diagnostic Display Sys, 3MP 2-Head, MXRT-6700 PCIe Card
  • K9306043 – Barco MDNC3421 LED Nio Color 3MP Diagnostic Display Sys, 3MP 4-Head, MXRT-5600 PCIe Card
  • K9306044 – Barco MDNC3421 LED Nio Color 3MP Diagnostic Display Sys, 3MP 4-Head, MXRT-7600 PCIe Card
  • K9306047 – Barco MDNC3421 LED Nio Color 3MP Diagnostic Display Sys, 3MP 4-Head, MXRT-6700 PCIe Card

Description

Barco MDNC-3421 Nio Color 3MP LED Color Diagnostic Display

Barco MDNC-3421 Nio Color 3MP is a 3-megapixel high-bright color display system with LED backlights, providing excellent image quality for confident diagnoses. Its exceptional brightness (calibrated at 500 cd/m2) helps you discern even the tiniest detail – even after many years of use.

The best 3MP color solution on the market
The new Nio Color 3MP offers the best image quality in the market for a 3MP color solution. Its high brightness and high contrast ratio enable you to unveil even the subtlest details and make accurate diagnoses. With the integrated smart features, you can easily take control and improve your productivity. SpotView™, for example, allows you to focus on an area of interest to unveil even more details. And with DimView™, any auxiliary displays can be automatically dimmed. The Nio Color 3MP is also an excellent solution for radiologists who want to angle their desktop: it lets you choose your preferred viewing angle and offers a highly ergonomic display configuration.

Stable image quality, durable investment
Using Barco’s integrated front sensor, the Barco MDNC-3421 Nio Color 3MP works perfectly with Barco’s online MediCal QAWeb solution for automated Quality Assurance and calibration. QAWeb guarantees stable DICOM images throughout the display’s lifetime. By default, Barco displays are equipped with a protective cover to safeguard your investment. Thanks to the high-performance LED backlights, the Nio MDNC-3421 Color 3MP requires less power, even at higher calibrated luminance. This has a positive impact on both maintenance and operational costs.

Ultimate peace of mind
Barco is the only company that provides complete system solutions, from display and controllers to workflow tools and calibration via QAWeb. All components are covered by our full 5-year warranty. At product release, Barco extensively tests the display’s compatibility with all major PACS applications.

Our service and repair center offers expert repairs!
Model: MDNC-3421
Barco Support

Specifications

Screen technology IPS-TFT Color LCD
Active screen size (diagonal) 540 mm (21.3")
Active screen size (H x V) 432 x 324 mm (17.0 x 12.8")
Aspect ratio (H:V) 4:3
Resolution 3MP (2048 x 1536 pixels)
Pixel pitch 0.2109 mm
Color imaging Yes
Gray imaging Yes
Bit depth 30 bit
Viewing angle (H, V) 178°
Uniformity correction ULT
Ambient light presets Yes, reading room selection
Backlight Output Stabilization (BLOS) No
Front sensor Yes
Maximum luminance (panel typical) 900 cd/m²
DICOM calibrated luminance 500 cd/m²
Contrast ratio (panel typical) 1400:1
Response time (Tr + Tf) (typical) 20 ms
Housing color RAL 9003 / RAL 9004
Video input signals DVI-D Dual
Link DisplayPort
USB ports 1x USB 2.0 upstream (endpoint)
3x USB 2.0 downstream
Power rating 24 VDC, 4 A
Power requirements This device shall only be powered by the following medical approved power supply: Sinpro Electronics, type CPU110-201
Ratings marked on the medical power supply:
Input rating: 100–240 VAC, 1.5 A, 47–63 Hz
Output rating: 24 VDC, 4.58 A
Power consumption 50 W (nominal)
< 0.5 W (standby)
Dimensions with stand (W x H x D) Portrait: 378 x 528~628 x 235 mm
Landscape: 491 x 472~572 x 235 mm
Dimensions w/o stand (W x H x D) Portrait: 378 x 491 x 84 mm
Landscape: 491 x 378 x 84 mm
Dimensions packaged (W x H x D) 500 x 280 x 670 mm
Net weight with stand With protective cover: 11.2 kg
Without protective cover: 10.7 kg
Net weight w/o stand With protective cover: 6.2 kg
Without protective cover: 5.7 kg
Net weight packaged With protective cover: 15.7 kg (without accessories)
Without protective cover: 15.2 kg (without accessories)

Additional information

Manufacturer

BARCO

Model

MDNC3421

P/N

K9300340B, K9306043, K9306044, K9306047, K9602856, K9602861, K9602989
