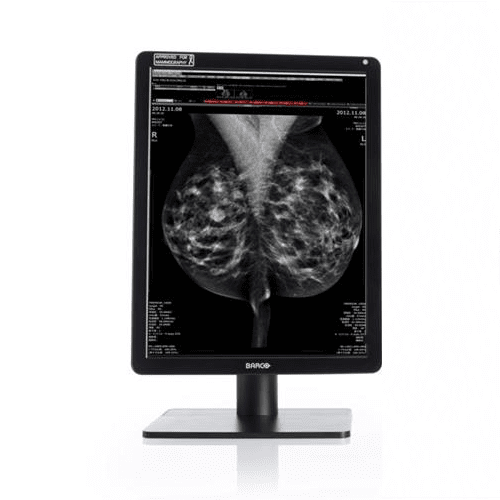

Barco MDNC-6121 Nio Color 5.8MP Diagnostic Display

Barco Nio MDNC-6121 5.8MP Color Diagnostic Display offers super bright, color calibrated and the most detailed medical images, including mammography and breast tomosynthesis. It’s how we help you improve your workflow and make more confident diagnoses.

  • Designed for radiology and mammography
  • High-bright, steady colors and grays
  • Front sensor and MediCal QAWeb for always-on compliance
  • No detail goes unnoticed

Article number:
K9602868 – one MDNC-6121, QAWeb software, all cables and accessories
K9602870 – two MDNC-6121, QAWeb software, all cables and accessories
K9602987 – two MDNC-6121 Color Diagnostic Displays, one MXRT-6700 card, required cables and accessories
K9602897 – three MDNC-6121 Color Diagnostic Displays, required cables and accessories
K9602873 – four MDNC-6121 Color Diagnostic Displays, one MXRT-8700 card, required cables and accessories
K9602872 – four MDNC-6121 Color Diagnostic Displays, required cables and accessories

Description

Barco MDNC-6121 Nio Color 5.8MP Diagnostic Display

Barco MDNC-6121 Nio Color 5.8MP renders excellent color and grayscale images used in general radiology as well 2D and 3D mammography. Its high brightness (600 cd/m2) and high contrast ratio help you discern the most subtle image details for an accurate diagnosis. And the additional resolution allows you to fit more of the image on the screen for reduced panning and zooming.

Using Barco’s integrated front sensor, the Barco MDNC-6121 Nio Color 5.8MP Diagnostic Display works perfectly together with Barco’s online MediCal QAWeb solution for automated Quality Assurance and calibration. QAWeb guarantees stable DICOM grayscale images and, with SteadyColor, consistent calibrated color images throughout the display’s lifetime.



Work smarter

With the integrated smart features, you can easily take control and improve your productivity. SpotView™, for example, allows you to focus on an area of interest to unveil even more details. And with DimView™, auxiliary displays can be dimmed automatically so they don’t interfere with your reading experience.

The MDNC6121 Nio Color 5.8MP is also an excellent solution for radiologists who want to angle their desktops: it lets you choose your preferred viewing angle and offers a highly ergonomic display configuration. It’s also possible to switch between Clearbase and Bluebase viewing modes on-the-fly. Whether to suit the image type or to change reading preferences, you decide which color you want, and when.



Ultimate peace of mind

Thanks to the high-performance LED backlights, the Nio Color 5MP has a positive impact on both maintenance and operational costs. By default, Barco displays are equipped with an integrated glass cover to safeguard your investment.

Barco is the only company that provides complete system solutions, from display and controllers to workflow tools and calibration via QAWeb. All components are covered by our full 5­year warranty. At product release, Barco extensively tests the display’s compatibility with all major PACS applications.

SEE ALL BARCO PRODUCTS

Specifications



Screen technology LCD
Active screen size (diagonal) 541 mm (21.3")
Active screen size (H x V) 324.45 x 432.6 xmm (12.77" x 17")
Aspect ratio (H:V) 3:4 for each display in portrait mode, 3:2 overall
Resolution 5.8MP (2100 x 2800 pixels)
Pixel pitch 0.1545 mm
Color imaging Yes
Gray imaging Yes
Bit depth 30 bit
Viewing angle (H, V) 178°
Uniformity correction ULT
SteadyGray Yes
SteadyColor Calibration Yes, when used as system with MXRT display controller
I-Luminate Yes
Ambient Light Compensation (ALC) Yes
Front sensor Yes
Maximum luminance 1300 cd/m²
DICOM calibrated luminance 600 cd/m²
Contrast ratio (panel typical) 1400:1
Response time ((Tr + Tf)/2) (typical) 12.5 ms
Housing color RAL 9003 / RAL 9004
Video input signals DVI-D Dual Link (2x), DisplayPort(2x)
USB ports 1x USB 2.0 upstream (endpoint)
2x USB 2.0 downstream
Power rating 24 VDC, 5 A; 5 VDC, 0.1 A
Power requirements This device shall only be powered by the following medical approved power supply:
Adapter Technology, type CMD160-P240
Ratings marked on the medical power supply:
- Input rating: 100–240 VAC, 1.9–0.8 A, 50/60 HZ
- Output rating: 24 VDC, 6.3 A; 5 VDC, 0.5 A
Power consumption 60 W (nominal)
< 0.5 W (standby)
Dimensions with stand (W x H x D) Portrait: 378 x 528~628 x 235 mm
Landscape:491 x 472~572 x 235 mm
Dimensions w/o stand (W x H x D) Portrait: 378 x 491 x 84 mm
Landscape:491 x 378 x 84 mm
Dimensions packaged (W x H x D) 500 x 280 x 670 mm
Net weight with stand [MDNC-6121]
11.6 kg
[MDNC-6121 NC]
10.2 kg
Net weight w/o stand [MDNC-6121]
6.6 kg
[MDNC-6121 NC]
5.2 kg
Net weight packaged [MDNC-6121]
17 kg (without optional accessories)
[MDNC-6121 NC]
15.7 kg (without optional accessories)
Tilt -10° to 30°
Swivel -45° to +45°
Pivot 90°
Height adjustment range 100 mm
Mounting standard VESA (100 mm)
Screen protection
  [MDNC-6121]
Protective cover: yes
Anti-Reflective coating: yes
Material: glass
[MDNC-6121 NC]
Protective cover: no
Anti-Reflective coating: no
Material: NA
Recommended modalities All digital images, including digital mammography.
Certifications FDA 510(K) K170476 for General Radiology, Digital Mammography and Breast Tomosynthesis
CE0123 (Medical Device)
CCC (China), KC (Korea), INMETRO (Brazil - K9300360B, K9300361B), BIS (India)
EAC (Russia, Kazakhstan, Belarus, Armenia and Kyrgyzstan)
Safety specific:
IEC 60950-1:2005+A1:2009+A2:2013
EN 60950-1:2006+A1:2010+A11:2009+A12:2011+A2:2013
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
IEC 60601-1:2005+A1:2012+A2:2020
EN 60601-1:2006+A1:2013+A12:2014+A2:2021
AAMI ES 60601-1:2005+A1:2012+A2:2021
CAN/CSA C22.2 No. 60601-1:2014 (Reaffirmed 2022
EMI specific:
IEC 60601-1-2:2014+A1:2020 (Ed.4.1)
EN 60601-1-2:2015+A1:2021 (Ed.4.1)
FCC part 15 Class B
ICES-001 Level B
VCCI (Japan)
Environmental
EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive
Supplied accessories User Guide
Documentation disk
System sheet
Video cable (1x DisplayPort)
Mains cable(s)
USB 2.0 cable
External power supply
Optional accessories Graphics board
QA software QAWeb
Warranty 5 years, including 40000 hours backlight warranty
Operating temperature 0 °C to 40 °C (15 °C to 30 °C within specs)
Storage temperature -20 °C to 60 °C
Operating humidity 8 % to 80 % (non-condensing)
Storage humidity 5 % to 85 % (non-condensing)
Operating pressure 70 kPa
Storage pressure 50 to 106 kPa
