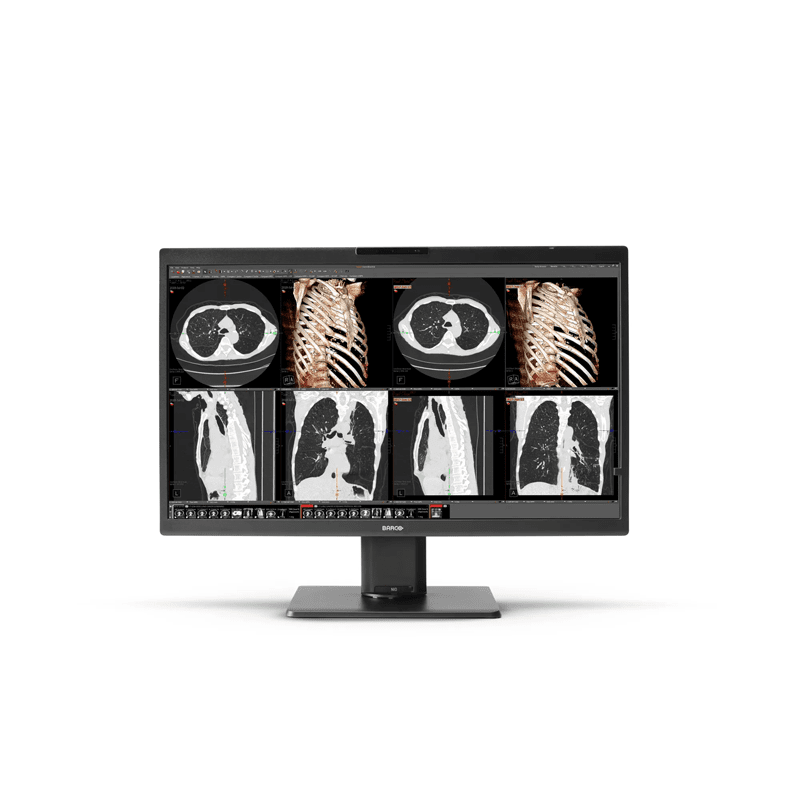

Barco MDNC-8132 32″ 8MP Color Diagnostic Display

  • Large 32” display
  • 8MP screen resolution
  • Integrated multimedia functionalities
  • One display for multiple workstations
  • Automated, remote QA and compliance
Article number: K9611020B – Nio Color 8MP, 32″ 1H no DC card

Description

Barco MDNC-8132 32″ 8MP Color Diagnostic Display

Barco’s Nio Color 8MP display is the ideal choice for radiology image interpretation in various settings. It seamlessly merges our acclaimed image quality and detail with built-in features that make collaboration with peers – from any location – easy and clutter-free.

Excellent 8MP image quality on a large 32” screen

Whether you’re working in an office, at home, or any other location, a solid setup is crucial. With its remarkable 8MP resolution and generous 32” screen, Nio Color 8MP empowers you to combine the information and images you need on a single screen.

The Barco MDNC-8132 monitor includes Intuitive Workflow Tools and cutting-edge technologies:

  • SteadyGray for precise and consistent representation of grays
  • SteadyColor for accurate and consistent representation of colors
  • I-Guard for stable performance across the display’s full lifetime
  • Uniform Luminance Technology for screen-wide uniformity correction
  • Ambient Light Compensation for optimal viewing in various lighting conditions
  • RapidFrame for sharp and fast image rendering when scrolling through cine images



Your perfect fit for reading radiology images, anywhere

In addition to the MDNC8132 Nio Color 8MP’s exceptional core features, you also get:

  • Integrated camera, speaker, and microphone
  • Our advanced screensharing tool Multi-Display Confer, for smooth virtual collaboration
  • KVM functionality for effortless switching between multiple workstations
  • Daisy chaining to keep your desk free of cable clutter



Stable performance, remotely managed

Enjoy automated QA and compliance for a stable performance anywhere, during the full lifetime of your monitor, thanks to QAWeb Enterprise. Finally, Barco’s all-inclusive warranty assures you a full return on investment over at least 5 to 7 years of your display.

About Barco

Specifications



Screen technology IPS
Active screen size (diagonal) 812.80 mm (32.0")
Active screen size (H x V) 708.48 x 398.52 mm (27.9 x 15.7")
Aspect ratio (H:V) 16:9
Resolution 8MP (3840 x 2160 pixels @ 60 Hz)
Pixel pitch 0.1845 mm
Color imaging Yes
Gray imaging Yes
Bit depth 30 Bit
Viewing angle (H, V) 178°
Uniformity correction ULT
SteadyGray Yes
SteadyColor Yes (in MXRT Display Controller), when used as a system with MXRT Display Controller & QAWeb Enterprise
Pathology Setting Yes
Color gamut NTSC 94%
Color gamut sRGB 132%
sRGB Delta E2000 (typical) Average: < 3 Max: < 5
RapidFrame Yes
Ambient light presets Yes, reading room selection
Ambient light sensor Yes
Front sensor Yes, I-Guard
Presence sensor Yes
Maximum luminance (panel typical) 850 cd/m²
DICOM calibrated luminance 420 cd/m²
Contrast ratio (panel typical) 1350:1
Response time ((Tr + Tf)/2) (typical) 12.7 ms
Housing color Black (RAL 9004) / White (RAL 9003)
Video input signals 2x DisplayPort 1.4
Video output signals 1x DisplayPort (MST)
USB ports 2x USB-B 2.0 upstream (endpoint) 5x USB-A 2.0 downstream (of which 1 charge port)
KVM switch Yes
Power rating 24 Vdc, 8.3 A
Power requirements This device shall only be powered by the medical approved power supply of Adapter Tech., type ATM200T-P240
Input: 100-240 Vac, 50-60 Hz, 2.5-0.9 A
Output: 24 Vdc, 8.3 A
Power consumption 60 W (nominal)
<0.35 W (hibernate)
< 0.35 W (switched off)
Dimensions with stand (W x H x D) 743 x 518~618 x 238 mm
Dimensions w/o stand (W x H x D) 743 x 459 x 63 mm
Dimensions packaged (W x H x D) 898 x 752 x 358 mm
Net weight with stand 13 kg
Net weight w/o stand 8.4 kg
Net weight packaged 21 kg (without optional accessories)
Tilt -5° to +25°
Swivel -30° to +30°
Pivot N/A
Height adjustment range 100 mm
Mounting standard VESA (100 mm)
Screen protection N/A
Recommended modalities All digital images, except digital mammography.
Certifications CE0123 (Medical Device)
FDA 510(k) K233693
CCC(China), KC (Korea), INMETRO (Brazil), BIS (India), EAC (Russia) (Pending)
Safety specific:
IEC 60950-1:2005 + A1:2009 + A2:2013
EN60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013
IEC 62368-1:2018
EN IEC 62368-1:2020 + A11:2020
IEC60601-1:2005 + A1:2012 + A2:2020
EN 60601-1:2006 + A1:2013 + A12:2014 + A2:2021
AAMI ES 60601-1:2005 + A1:2012 + A2:2021
CAN/CSA C22.2 No. 60601-1:2014 (Reaffirmed 2022)
EMI specific:
IEC 60601-1-2:2014+A1:2020 (ed4.1)
EN 60601-1-2:2015 + A1:2021 (ed4.1)
FCC part 15 Class B
ICES-001 Level B
VCCI (Japan) (Pending)
Environmental:
EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive
Supplied accessories User Guide
Quick Install Sheet
Documentation disc
System sheet
Video cables
Mains cables
USB cable
External power supply
Optional accessories Display controller
QA software QAWeb Enterprise
Warranty 5 years, including 20000 hours backlight warranty
Operating temperature 0 °C to 35 °C (20 °C to 30 °C within specs)
Storage temperature -20 °C to +60 °C
Operating humidity 8 % to 70 % (non-condensing)
Storage humidity 5 % to 70 % (non-condensing)
Operating pressure 70 kPa
Storage pressure 50 to 106 kPa
