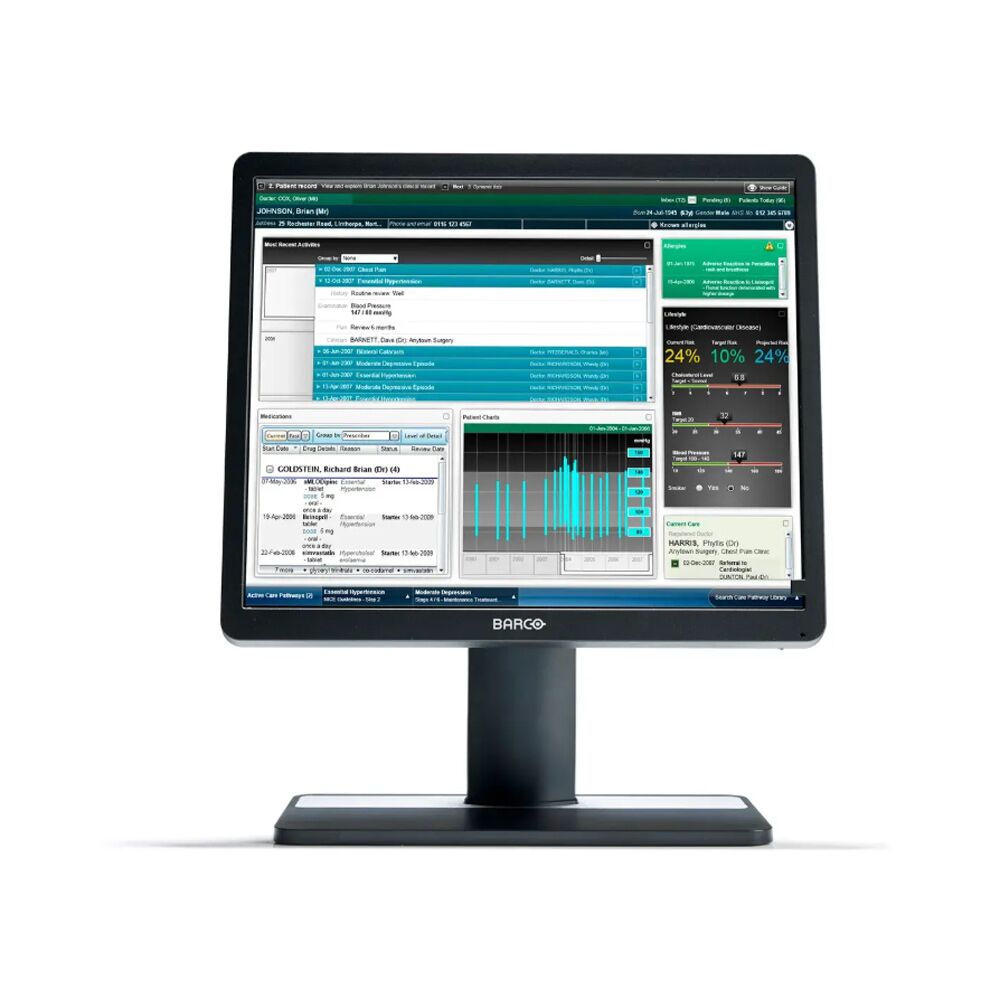

Barco MDRC-1419 Eonis 19-inch Clinical Review Display

  • 19” display for reviewing clinical images
  • Front sensor for consistent images
  • Automated calibration & QA
  • Model Variations: MDRC1419

Article number:
K9610917B – one MDRC-1419 Color Review Display, Standard brightness-No protective cover-Internal power supply-Black, required accessories and US power cable
K9610918B – one MDRC-1419 Color Review Display, Standard brightness-Touch panel -Internal power supply-Black, required accessories and US power cable

Description

Barco MDRC-1419 Eonis 19-inch Clinical Review Display – Repair Service & Exchange

The Barco MDRC-1419 Eonis 19” brings reliable, DICOM compliant images to a broad palette of imaging applications, including EMR. It combines consistent image quality and an attractive, versatile design with effortless quality assurance.

Easy collaboration with consistent images
Eonis presents sharp, bright images. The display’s unique front consistency sensor automatically aligns the image quality every time the display is switched on. The Eonis 19” unique 5:4 aspect ratio is ideal for viewing all types of applications and images from medical modalities.

Result? Consistent images that make collaboration between specialists easier. Discuss cases with colleagues at multiple locations, knowing that everyone is seeing identical images.

Automated quality assurance
Eonis 19” comes with the cloud-based QAWeb Enterprise software, an online service for automated calibration, quality assurance and asset management.

Praised in hospitals around the world, QAWeb Enterprise allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.

The Barco MDRC-1419 Eonis 19” brings reliable, DICOM compliant images to a broad palette of imaging applications, including EMR. It combines consistent image quality and an attractive, versatile design with effortless quality assurance.

Easy collaboration with consistent images
Eonis presents sharp, bright images. The display’s unique front consistency sensor automatically aligns the image quality every time the display is switched on. The Eonis 19” unique 5:4 aspect ratio is ideal for viewing all types of applications and images from medical modalities.

Result? Consistent images that make collaboration between specialists easier. Discuss cases with colleagues at multiple locations, knowing that everyone is seeing identical images.

Automated quality assurance
MDRC1419 Eonis 19” comes with the cloud-based QAWeb Enterprise software, an online service for automated calibration, quality assurance and asset management.

Praised in hospitals around the world, QAWeb Enterprise allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.

Barco MDRC-1419 Fit for clinical review

Barco’s Eonis displays feature multiple mounting and interface options, including a VESA mount. The user-friendly height, tilt and pivot adjustments of the base allow the monitor to be positioned for maximum comfort.

Like every Barco clinical review display, the MDRC-1419 complies with international medical and patient safety standards.

Barco’s Eonis displays feature multiple mounting and interface options, including a VESA mount. The user-friendly height, tilt and pivot adjustments of the base allow the monitor to be positioned for maximum comfort.

Like every Barco clinical review display, the MDRC-1419 complies with international medical and patient safety standards.

Our service and repair center offers expert repairs!

Ensure the optimal performance of your Barco MDRC-1419 medical display monitor with our comprehensive service and repair solutions. Our specialized technicians in our service and repair center are equipped to handle a wide range of peripherals, including Medical LCD’s, printers, cameras and recorders. Trust us to service & repair your imaging periphials to peak condition. To minimizing downtime ask about our exchange program.

Support

Model: MDRC-1419
Barco Support

Specifications

Screen technology Standard Version: IPS TFT High Bright Version: AHVA
Active screen size (diagonal) 482 mm (19″)
Active screen size (H x V) 376 x 301 mm (14.81″ x 11.85″)
Aspect ratio (H:V) 5:4
Resolution 1 MP (1280 x 1024 pixels @60 Hz)
Pixel pitch 0.294 mm
Color imaging Yes
Gray imaging Yes
Bit depth 24 bit
Viewing angle (H, V) 178°
Color Calibration(sRGB) Available for: MDRC-1419 SNIB MDRC-1419 SNIB DIN MDRC-1419 STIB
Color Gamut Refer to panel specification
sRGB Delta E2000 (typical) DeltaE 2000 • Avg < 2 • Max < 5
Front sensor (FLOS) Available for: MDRC-1419 SNIB MDRC-1419 SNIB DIN MDRC-1419 STIB
Backlight Output Stabilization (BLOS) Available for: MDRC-1419 HNIB MDRC-1419 HNIB CHH
Maximum luminance (panel typical) Standard Version: 330 cd/m2 High Bright Version: 700cd/m2
DICOM calibrated luminance Standard Version: 250 cd/m² High Bright Version: 400cd/m²
Contrast ratio (panel typical) Standard Version: 1000:1 (min: 800:1) High Bright Version: 1000:1 (min: 700:1)
Response time ((Tr + Tf)/2) (typical) Standard Version: 15 ms High Bright Version: 12.5 ms
Housing color RAL 9004
Video input signals 1 x DP 1 x DVI-D 1 x DVI-A 1 x HDMI
USB ports 1 x USB USB_std upstream 2 x USB USB_std downstream
Power rating Internal, 100-240 Vac,50/60 Hz
Power consumption < 25W (Standard Version) <35W (High Bright Version) <0.3W (Hibernate mode) <0.3W (Switched off mode)
Dimensions with stand (W x H x D) Portrait: 348 x 440-550 x 201 mm Landscape: 411 x 408-518 x 201 mm
Dimensions w/o stand (W x H x D) 411 x 348 x 67 mm
Dimensions packaged (W x H x D) 482 x 399 x 249 mm
Net weight with stand MDRC-1419 SNIB: 5.5 kg MDRC-1419 SNIB DIN: 5.5 kg MDRC-1419 STIB: 6.44 kg MDRC-1419 HNIB: 5.44 kg MDRC-1419 HNIB CHH: 5.44 kg
Net weight without stand MDRC-1419 SNIB: 3.3 kg MDRC-1419 SNIB DIN: 3.3 kg MDRC-1419 STIB: 4.24 kg MDRC-1419 HNIB: 3.24 kg MDRC-1419 HNIB CHH: 3.24 kg
Net weight packaged MDRC-1419 SNIB: 8.9 kg MDRC-1419 SNIB DIN: 8.9 kg MDRC-1419 STIB: 9.8 kg MDRC-1419 HNIB: 8.3 kg MDRC-1419 HNIB CHH: 8.3 kg
Tilt -5° to 22°
Swivel No
Pivot 90°
Height adjustment range 110 mm
Mounting standard VESA (100 mm)
Screen Protection No
Touch Screen Available for MDRC-1419 STIB
Intended use Refer to technical specification
Recommended modalities All digital images, except digital mammography
Certifications FDA Class I, 510(k) exemptCE (Medical Device Class I) UKCA (UK) CCC, CECP (China) KC (Available for standard versions only) VCCI (Available for standard versions only) BIS (India) EAC (Russia, Kazakhstan,Belarus, Armenia andKyrgyzstan) UL (US and Canada), FCC,DEMKOSafety specific: IEC 60601-1:2005 +AMD1:2012+ AMD2:2020 EN 60601-1:2006 + A1:2013+ A12:2014 IEC 62368-1:2018 EN 62368-1:2020 + A11:2020 IEC 60601-1-6:2010 +AMD1:2013 + AMD2:2020 ANSI/AAMI ES60601-1:2005+ R1:2012 + R2:2021 CAN/CSA C22.2 No. 60601-1:2014 GB 4943.1-2022 EMC specific: IEC 60601-1-2:2014 +A1:2020 EN 60601-1-2:2015 +A1:2021 FCC Part 15 Subpart B ICES-003 Level B GB 17625.1-2012 GB/T 9254.1-2021 Environmental: China Energy Label, ChinaRoHS, EU RoHS, REACH, Canada Health, WEEE, Packaging Directive
Supplied accessories 1x USB cable 1x DP cable 1x Main cable 1x DVI-D cable (available for MDRC-1419 HNIB CHH) 1x VGA Dongle (available for MDRC-1419 HNIB CHH) 1x User Guide (English) 1x CD, containing (translations of the User Guide) 1x System sheet
Optional accessories No
QA software QAWeb
Warranty 3 years
Operating temperature 0°C to 40°C
Storage temperature -20°C to 60°C
Operating humidity Standard Version: 20% to 80% High Bright Version: 5% to 80%
Storage humidity Standard Version: 10% to 90% High Bright Version: 5% to 90%
Minimum operating pressure 70 kPa
Storage pressure 50 to 106 kPa

Additional information

Manufacturer

Barco NV

Brand

Barco

Product Line

Eonis

Model

MDRC-1419

P/N

K9610917B, K9610918B
