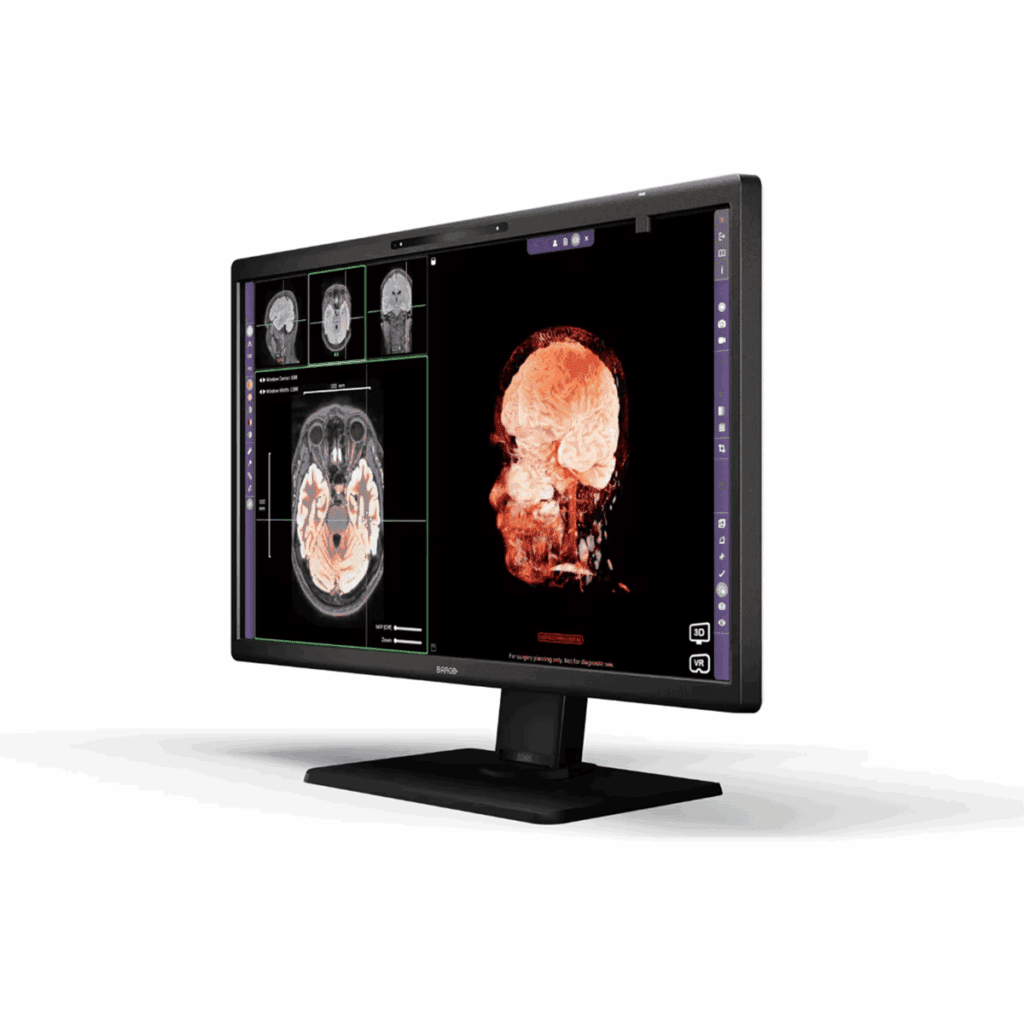

Barco MDRC-8127 27-inch 4K Eonis 3D Display

  • Autostereoscopic 3D with advanced eye-tracking & lenticular lens projection
  • 4K resolution on standard-size 27” screen
  • Effortless switching between 2D & 3D for any task
  • DICOM-compatible, Class 1 medical-grade display
  • Remote QA management tools
  • MPN: T9711025B

Contact us directly for Volume Order Pricing and Shipping Rates. We offer special pricing and discounts on custom requirements and requests from Healthcare & Health System, Government, Purchasing Group facilities and OEM’s (Original Equipment Manufacturers).



SKU: BARCO-MDRC8127-T9711025B Categories: , , Brand:

Description

Barco MDRC-8127 27-inch 4K Eonis 3D Monitor – Sales, Repair Service & Exchange

Discover the world’s first glasses-free, Barco MDRC-8127 medical 3D display
Revolutionize medical visualization across patient consultations, surgical planning, and medical education with Barco NDRC-8127 Eonis 3D, Barco’s pioneering 3D monitor solution. This groundbreaking technology delivers uncompromised glasses-free 3D imaging, providing you with unprecedented depth perception and easy spatial understanding.

All-in-one versatility for any workflow
Eonis 3D comes in a comfortable, standard 27” size – perfect for any desk. And without the need for special eyewear, Eonis 3D renders complex anatomical structures with exceptional clarity and true depth, allowing for intuitive interpretation of pathologies.

Remote QA management
A Class 1 medical device, Barco MDRC-8127 Eonis 3D integrates seamlessly with existing PACS and imaging platforms while its ergonomic design supports eye comfort during extended viewing sessions. Advanced calibration through its front sensor and integration with QAWeb Enterprise software maintains consistent image quality across the entire display, during its entire lifespan.

Medical-grade reliability & longevity
Experience transformative visualization that helps to improve patient opt-in rates, enhance surgical preparation, and accelerate learning curves for residents and students!

Support

Model: MDRC-8127

Article numbers:
T9711025B – Eonis 3D 8MP-1H 27″ 1H1F: One MDRC-8127 Color autostereoscopic 3D display, required accesoires – US power cable
Barco Support

Hiliex proudly presents a comprehensive range of Barco medical displays tailored for healthcare professionals. From high-resolution Barco radiology displays designed for precise diagnostic imaging to specialized Barco surgical displays optimized for the operating room, our selection meets the diverse needs of modern medical environments. Additionally, our dedicated service and repair center ensures expert maintenance and repairs for all advanced medical imaging monitors, guaranteeing your equipment remains in peak condition for optimal patient care.

Barco offers advanced visualization, collaboration and networking technologies for professionals in mission-critical environments and combine this with a commitment to innovation and sustainability.

Ensure the optimal performance of your Barco MDPC-8127 display monitor with our comprehensive service and repair solutions. Our specialized technicians in our service and repair center are equipped to handle a wide range of peripherals, including Medical LCD’s, printers, cameras and recorders. Trust us to service & repair your imaging periphials to peak condition. To minimizing downtime ask about our exchange program.

Specifications

Screen technology IPS
Active screen size (diagonal) 684 mm (26.96″)
Active screen size (H x V) 597 x 336 mm (23.49 x 13.22″)
Aspect ratio (H:V) 16:9
Resolution 8MP (3840 x 2160 pixels @ 60 Hz)
Pixel pitch 0.1554 mm
Color imaging Yes
Gray imaging Yes
Bit depth 30 bit
Viewing angle (H, V) 178°
SteadyGray N/A
SteadyColor N/A
Pathology Setting Yes
Color gamut NTSC 82%
Color gamut sRGB 99%
sRGB Delta E2000 (typical) < 3 (average)
< 5 (maximum)
Ambient light presets Yes, reading room selection
Front sensor Yes, Front Consistency Sensor
Maximum luminance (panel typical) 330 cd/m²
DICOM calibrated luminance 250 cd/m²
Contrast ratio (panel typical) 1000:1
Response time ((Tr + Tf)/2) (typical) 14 ms
Housing color Black (RAL 9004) / White (RAL 9003)
Video input signals 2x DisplayPort 1.4
1x USB-C 3.2 DisplayPort Alt Mode
Video output signals 1x DisplayPort 1.4 (MST)
USB ports

Upstream:
2x USB-B 2.0
1x USB-C 3.2 (DisplayPort Alt Mode, Power Delivery up to 100W)

Downstream:
2x USB-A 2.0
1x USB-C 2.0 (side of the display, Power Delivery up to 7.5W

LAN/RJ45 ports 1x 1GbE
Power rating 100-240 Vac, 50/60 Hz, 2.5-0.9 A
USB-C output: 5VDC 3A, 9VDC 5A, 15VDC 5A, 20V 5A
USB-C output (side): 5VDC 1.5A
Power requirements This device shall only be powered by the medical approved power supply of Adapter Tech., type ATM200T-P240: Input: 100-240 Vac, 50-60 Hz, 2.5-0.9 A Output: 24 Vdc, 8.3 A
Power consumption 35 W (nominal) < 0.5 W (hibernate) < 0.3 W (switched off)
Dimensions with stand (W x H x D) Landscape: 624 x 479~579 x 225 mm
Dimensions w/o stand (W x H x D) Landscape: 624 x 386 x 66 mm
Dimensions packaged (W x H x D) 755 x 285 x 570 mm
Net weight with stand 10.6 kg
Net weight w/o stand 7.6 kg
Net weight packaged 15 kg (without optional accessories)
Tilt -5° to +25°
Swivel -30° to +30°
Pivot N/A
Height adjustment range 100 mm
Mounting standard VESA (100 mm)
Recommended modalities All digital images, except digital mammography.
Certifications FDA Class I 510(k) exempt
CCC (China)
KC (Korea)
INMETRO (Brazil)
BIS (India)
UKCA (UK)

Safety specific:
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
IEC 60601-1:2005+A1:2012+A2:2020
EN 60601- 1:2006+A1:2013+A12:2014+A2:2021
AAMI ES 60601-1:2005+A1:2012+A2:2021
CAN/CSA C22.2 No. 60601-1:2014 (Reaffirmed 2022)

EMI specific:
IEC 60601-1-2:2014+A1:2020 (Ed.4.1)
EN 60601-1-2:2015+A1:2021 (Ed.4.1)
FCC part 15 Class B
ICES-001 Level B
VCCI (Japan)

Environmental:
EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive

Supplied accessories User Guide
Quick Install Sheet
Documentation disc
Video cables
Mains cables
USB cable
QA software QAWeb Enterprise
Warranty 3 years
Operating temperature 0 °C to 35 °C (20 °C to 30 °C within specs)
Storage temperature -20 °C to 60 °C
Operating humidity 20% to 80% (non-condensing)
Storage humidity 10% to 85% (non-condensing)
Operating pressure 70 kPa minimum
Storage pressure 50 to 106 kPa

Additional information

Manufacturer

Barco NV

Model

MDRC-8127

MPN

T9711025B

GTIN: 05415334053045
