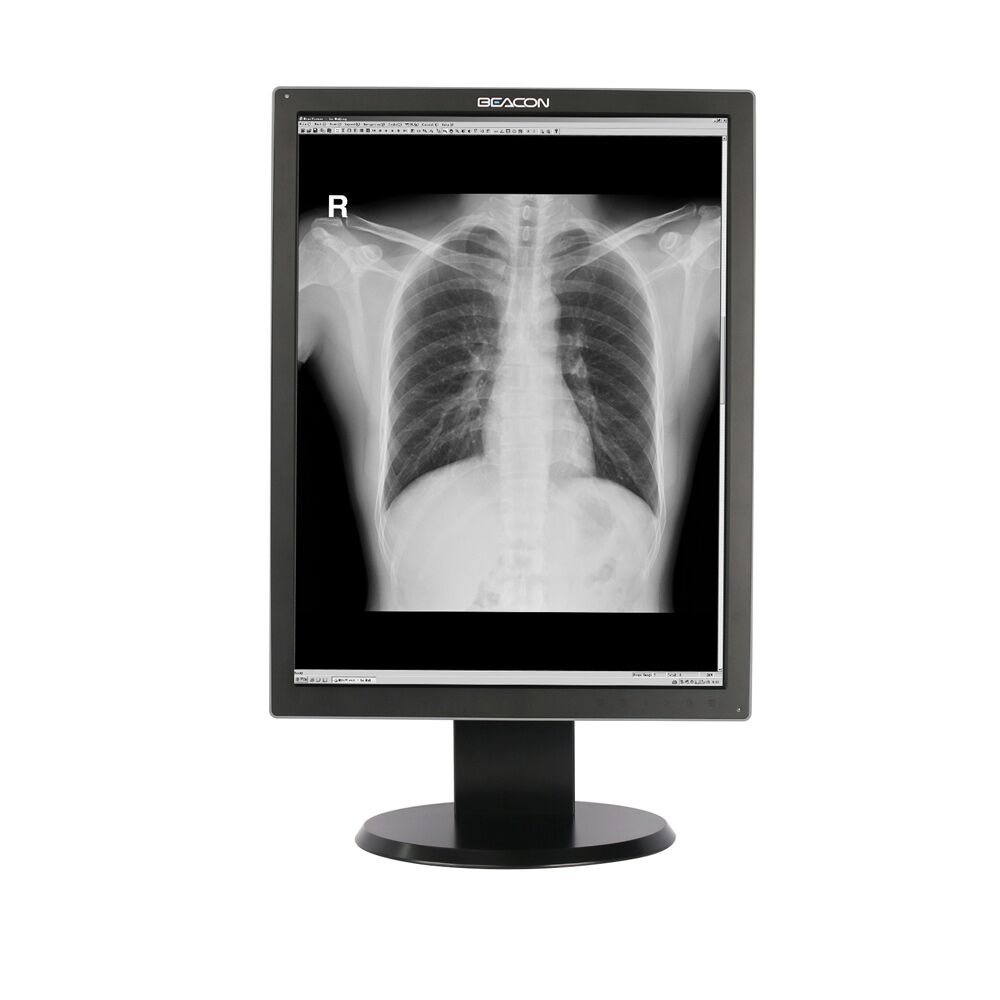

Beacon G23S+ 21.3-inch 2MP Monochrome Medical Display

  • 21.3″ 2MP monochrome LED display
  • Low Blue Light Technology
  • Backlight Stabilization System
  • Continuous Qualit y Assurance System
  • Primary Screen Adaptation
  • Compliant with DICOM Standard
  • QA Software
  • Ambient Light Adaptive System
  • Model: G23S+
  • Application: CR/DR, CT, MRI, X-RAY, DSA, DSI

Description

Beacon G23S+ 21.3-inch 2MP Monochrome Medical Display

Beacon G23S+ has multiple built-in display modes to meet the needs of doctors to view various types of image data; first-class image display provides ideal clinical images for the entire hospital, supports doctors to make decisions quickly, improves hospital efficiency, and improves patient satisfaction.

After strict DICOM calibration, accurate display of medical The built-in integrated backlight sensor monitors the brightness of the backlight, ensuring that the display can quickly achieve brightness stability at startup and maintain a consistent brightness throughout the life cycle.

Ideal for making accurate diagnosis

Model: G23S+
Beacon Support

Hiliex proudly presents Beacon medical displays expertly designed for healthcare professionals seeking precision and reliability. high-resolution Beacon radiology displays ensure accurate diagnostic imaging, while the specialized Beacon surgical displays are optimized for the demands of the operating room. This comprehensive range caters to the diverse needs of modern medical environments, enhancing both efficiency and patient care. Additionally, our dedicated service and repair center ensures expert maintenance and repairs for all advanced medical imaging monitors, guaranteeing your equipment remains in peak condition for optimal patient care.

Shenzhen Beacon Display Technology Co., Ltd. is a national high-tech enterprise dedicate to medical display technology innovation and application, which provides professional solutions for medical imaging application including transmission, management, display & human machine interface. It is the subsidiary of Zhejiang Jingxin Pharmaceutical Co., Ltd. (stock code 002020).

Beacon has been widely recognized by the market. Many world-class medical imaging equipment manufacturers have chosen Beacon as the strategic OEM partners such as GE, Philips, Siemens, Hitachi, Canon, United Imaging, Mindray, Sonoscape etc. For standard off the shelf medical displays Beacon currently holds about 50% market share in the domestic market, more than 8000 hospitals are using Beacon’s product right now. These products are exported to about 100 countries worldwide.

Specifications

Model G23S+
Display size 21.3″
Display technology IPS
Support grayscale 1024
Resolution 1600 x 1200
Pixel pitch 0.270 x 0.270 mm
Brightness 1900 cd/m² Typ.
Calibration brightness 500 cd/m² Typ.
Contrast 1800:1 Typ.
Viewing angle 178° Typ.
Response time Tr : 10ms Typ. Tf : 10ms Typ.
Input signal interface DisplayPort: 20 pin
DVI-D: 24 pin
VGA: D-Sub 15 pin
Output signal interface N/A
Dimension 369 (W) x 511-596 (H) x 220 (D) mm
Net weight 8 kg
Stand mounting VESA 100 x 100
Power supply DC 12V
Power consumption 50W MAX
Power saving EPA, VESA
MTBF > 50,000 h
Protection rating IP20
Certification CE (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA C22.2 No. 60601-1, IEC60601-1, FCC-B, CCC, FDA 510(K) ,RoHS, China RoHS, China Energy,Low Blue Light (TUV)

Additional information

Description

2MP Grayscale Medical Display

Manufacturer

Shenzhen Beacon Display Technology Co., Ltd.

Model

G23S+

GTIN: 06970027821183
