Description

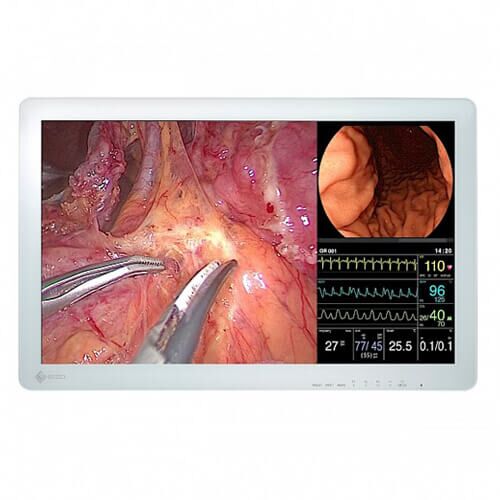

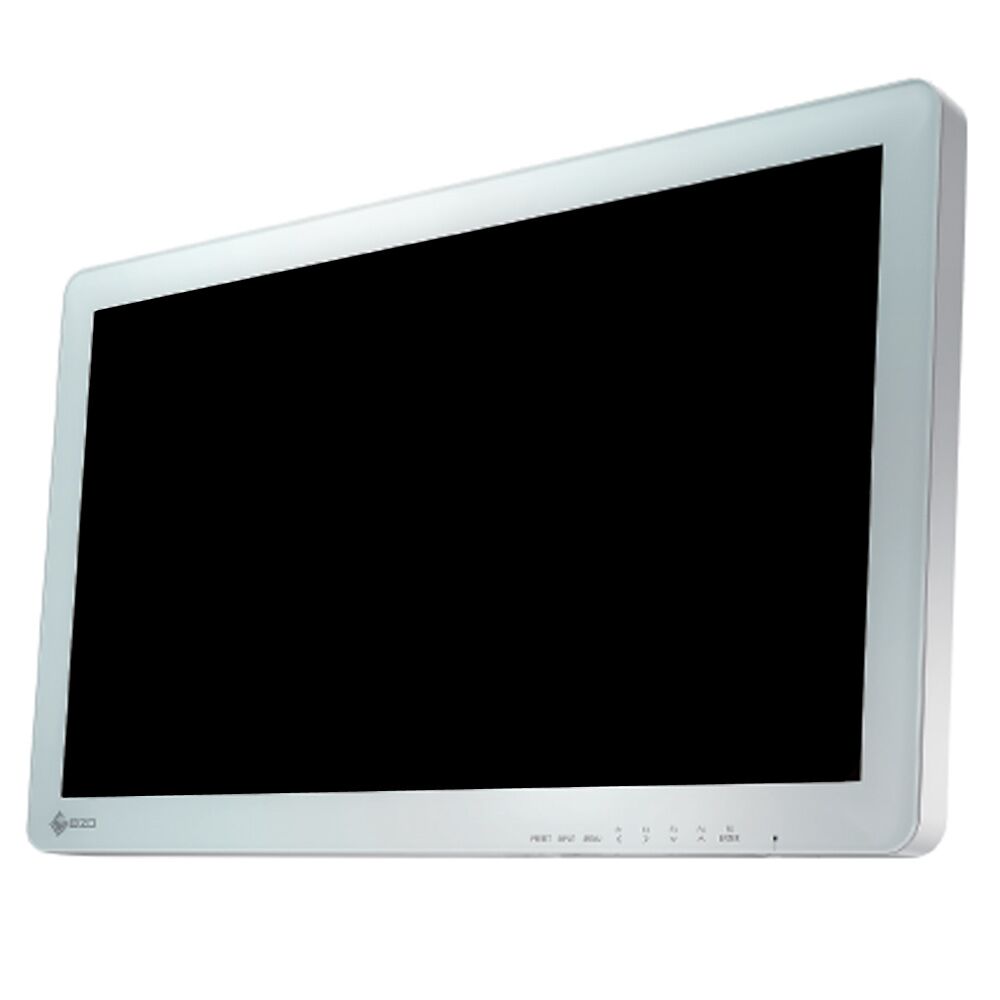

Eizo CuratOR EX2621 26-inch FHD Surgical Display Monitor
The Eizo EX2621 High Definition surgical display uses an LCD panel with an energy-efficient LED backlight, a brightness of 700 cd/m² and a contrast ratio of 1400:1. It displays in full HD resolution (1920 x 1080 pixels), and faithfully reproduces surgical images in high definition for endoscopy and operation microscope feeds.
Enhanced Sharpness
The Eizo CuratOR EX2621 Surgical Display LCD monitor is installed with EIZO’s proprietary image sharpening technology ‘Smart Resolution with Sparse Coding (S.R.S.C.)’. Images shot by low resolution endoscopy and surgical cameras can be displayed in full HD resolution without any lag, making use of the monitor’s full HD resolution.
Comfortably View from Any Angle
It has a viewing angle of 178 degrees so images can be viewed from various directions with minimal changes in contrast.
Rotate or Mirror the Display to Your Needs
Regardless of the orientation of the surgical camera, you can rotate the displayed image by 180 degrees or mirror to find the perfect operating view. This is suitable for matching the image with the line of site of surrounding assistants and surgeons, improving convenience in the operating room.
Eizo EX2621 View Up to Three Signals on the One Screen
View up to three separate signal sources simultaneously on one Eizo CuratOR EX2621 monitor screen using the PoP (Picture out Picture) function. Conversely, display up to two additional signals in corners on top of the main signal display ― creating a total of three visible inputs ― using PiP (Picture in Picture). The size and position of these displays is adjustable when using either PoP or PiP. This is useful when several images need to be viewed at once, such as multiple modalities.
Adjust Screens Independently from Each Other
When displaying two or three signal sources side by side on the same screen, each image’s display mode (gamma 1.8 – 2.6 or DICOM Preset Mode) can be adjusted without interfering with the other image. This is perfect for multi-modality use, where both endoscope, CT and MRI images can be accurately displayed on the same monitor.
Eizo EX2621 Independent Rotation and Mirroring
When displaying two or three signals at the same time, each display can be rotated 180 degrees or mirrored independently from the other.
Various Input/Output Signal Support
The Eizo CuratOR EX2621 monitor supports various video input/output signals for connecting to various types of modality equipment. This means that multiple inputs can be viewed simultaneously. Furthermore GPI and RS-232C allows you to externally control input signals and screen rotation, so that you can change the display in conjunction with the settings of the surgical equipment being used.
Eizo EX2621 Fully Flat Design for Safety and Hygiene
Operating rooms contain various medical devices that are arranged by the type of surgery being undertaken. In consideration of safety, EIZO’s surgical monitors adopt rounded corners. Furthermore the front is covered with a fully flat protective glass that has protection against foreign material and splashes to a level of IP45 (whole monitor has IP32 rating).
Additionally with the attached cable cover, cables can be stored neatly out of sight, increasing safety and hygiene in the operating room.
Protective Panel for Damage Protection
The Eizo EX2621 monitor is covered with a protective panel which helps protect the LCD screen from shock, scratches and dirt.
Eizo EX2621 Clean and Quiet Fanless Design
The monitor has superior heat dissipating technology, allowing it to stay cool without a fan. This offers an extremely quiet monitor that doesn’t disrupt airflow in the operating room. Additionally, because there are no ventilation holes, cleaning is a breeze, so the monitor can easily be disinfected for surgical purposes.
Standard VESA Mounting for Convenient Installation
The monitor supports VESA mounting standards so that it can be installed in various locations such as from ceiling arms, wall hangings, endoscopic carts, and desktops. For desktop installation, and optional desktop stand is available.
Eizo EX2621 Rest Assured with Medical Qualifications
In order to realize safe and reliable monitors that can be used with confidence at any medical institution, EIZO acquires various medical standards and safety/EMC standards. This monitor complies with the latest standard IEC 60601-1-2 4th edition.
Model variations: EX2621, EX2621-WT
Hiliex proudly presents a comprehensive range of Eizo medical displays tailored for healthcare professionals. From high-resolution Eizo radiology displays designed for precise diagnostic imaging to specialized Eizo surgical displays optimized for the operating room, our selection meets the diverse needs of modern medical environments. Additionally, our dedicated service and repair center ensures expert maintenance and repairs for all advanced medical imaging monitors, guaranteeing your equipment remains in peak condition for optimal patient care.
EIZO, which means image in Japanese, is a visual technology company that develops and manufactures high-end display solutions. EIZO integrates hardware and software technologies with consulting, web hosting, and other services to help customers in business, graphics, gaming, medicine, maritime, air traffic control, and other fields work more comfortably, efficiently, and creatively. Headquartered in Hakusan, Japan, EIZO has R&D and manufacturing facilities in Japan, China, Germany, and the U.S., and representation in more than 80 countries.
