Description

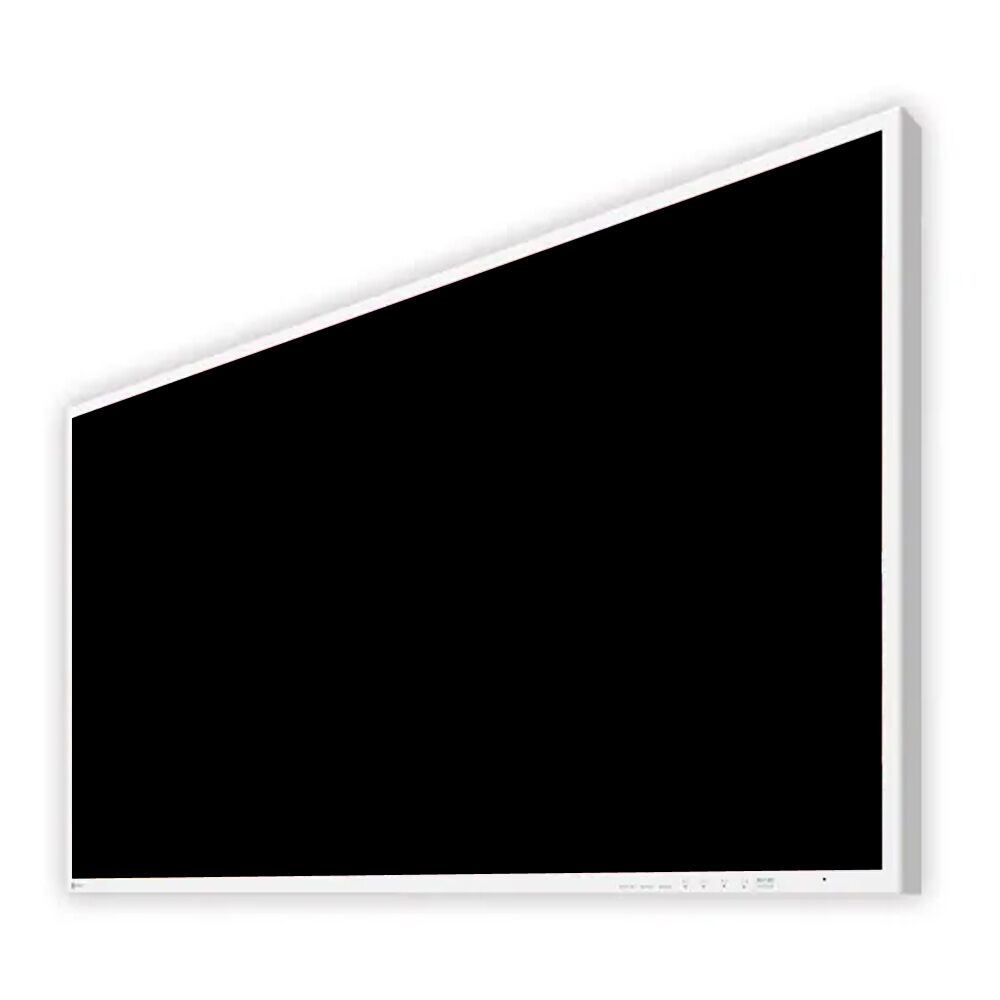

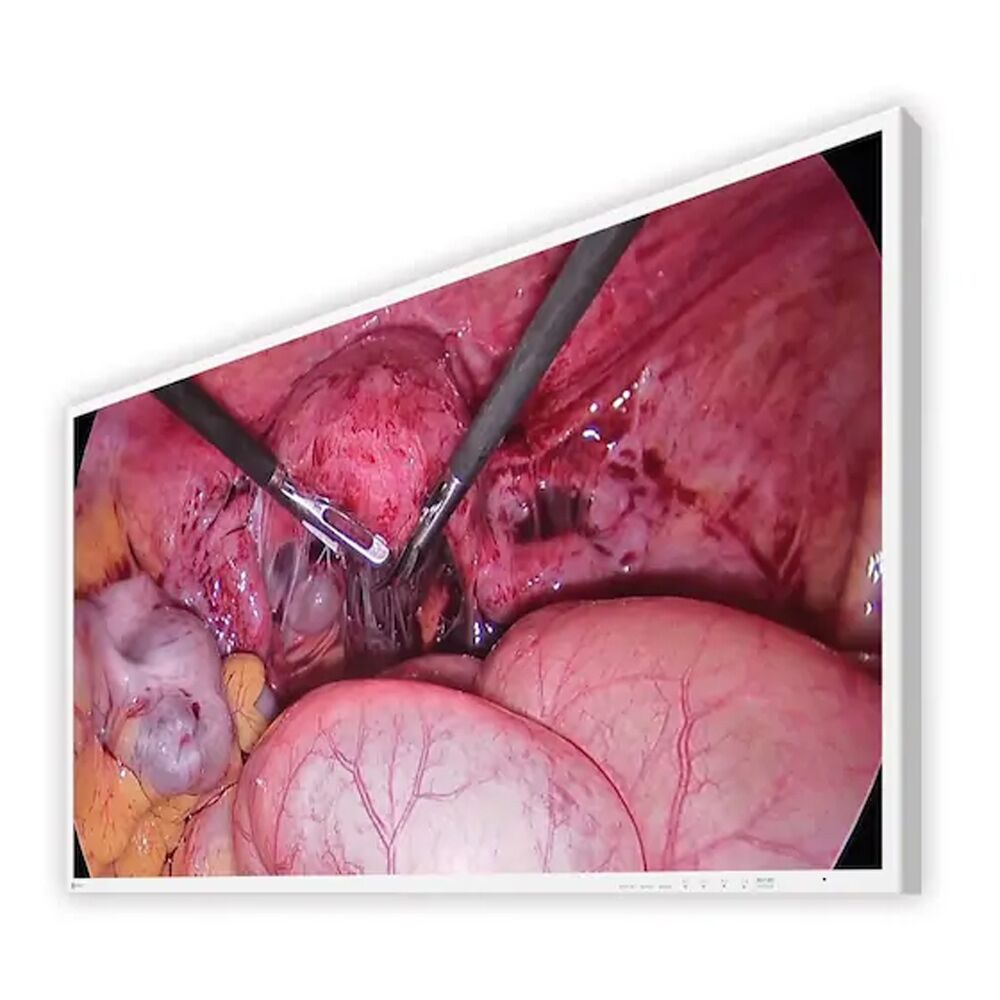

Eizo CuratOR EX4342-3D 43-inch 3D 4K UHD Surgical Display Monitor
Eizo EX4342-3D – 43-inch 3D widescreen surgical monitor with 4K UHD (3840 x 2160 pixels) resolution and high brightness.
43-Inch 3D Surgical Monitor with 4K UHD Resolution for Endoscopy and Other High-Precision Procedures
This monitor faithfully reproduces stereoscopic images in 4K UHD resolution (3840 x 2160) at a high brightness of up to 700 cd/m², achieving both detail and depth for endoscopy and microsurgery.
Lightweight and VESA Mounting
In the OR, large screen monitors are typically installed on a wall or attached to ceiling fixtures due to their size and weight. The EX4342-3D’s weight of just 17.6 kg and compliance with the VESA standard allow it to be reliably attached to supporting medical carts, providing a wide range of flexible installation options to suit the target environment.
Wide Color Gamut for Distinguishing Tones
During procedures, the operating surgeon needs to be able to differentiate between varying color tones. The Eizo EX4342-3D supports the BT.2020 4K video color standard to ensure that subtle differences between shades of reds and yellows captured by BT.2020-supported cameras are distinguishable on the screen.
Eizo EX4342-3D HDR Compatibility
HDR (High Dynamic Range) is a range that approximates the human perception of color and light as content is shown on a display device. The Eizo EX4342-3D monitor is equipped with the perceptual quantization (PQ) curve and hybrid log-gamma (HLG) for supporting HDR. This ensures images from HDR-supported endoscope cameras are displayed without crushing blacks and more closely resemble the human visual system.
Eizo EX4342-3D Fully Flat Design
Operating rooms contain various medical devices that are arranged according to the type of surgery. Safe handling and a sterile environment play a major role. EIZO’s surgical monitors adopt a flat design that saves valuable space and promotes easy cleaning and disinfection. Furthermore, the front is covered with protective glass with IP45 for protection against foreign material and splashes (the whole monitor has an IP32 rating).
Cable Cover for Safety and Hygiene
With the attached cable cover, cable connections can be stored neatly out of sight for maintaining a high level of safety and hygiene in the operating room.
Streamlined Connectivity
With BNC (12G-SDI), and DisplayPort™ or HDMI® signal, up to 4K UHD images are displayed at 60 frames per second with a single cable over various modalities.
When connected via BNC (12G-SDI), stable transmission is achieved even over long distances of 30 meters.
Output Images Directly to Multiple Monitors
The Eizo EX4342-3D monitor is also equipped with BNC (12G-SDI), DisplayPort™, and DVI output terminals so input video can be passed through and output directly to the next monitor. The same image is displayed on multiple monitors making information sharing among medical staff smooth in the operating room, while alleviating excess cabling.
Eizo EX4342-3D View Two Signals on One Screen
Two different types of signal sources can be viewed simultaneously on one monitor side by side using the PbyP (Picture-by-Picture) or one displayed within an inset window over the other with the PinP (Picture-in-Picture) function. This is useful in cases where vitals or ultrasound endoscopes need to be monitored simultaneously in addition to surgical images.
Eizo EX4342-3D Various 3D Signal Format Support
The Eizo EX4342-3D monitor supports Side by Side and Line by Line 3D signal formats.
Eizo EX4342-3D Fail-Safe Signal Display
The Auto Input Detection function automatically switches to another connected input port if the selected video signal is no longer detected. This provides a fail-safe in the case that the video signal’s input is disrupted due to a system error or other external interference.
Adjust Screens Individually
When displaying two signal sources side by side on the same screen, each image’s display mode (gamma 1.8 – 2.6 or DICOM® Preset Mode) can be adjusted independently of the other image. This is useful for viewing two different modalities simultaneously under the correct display conditions (e.g. endoscope, CT, MRI).
Lightweight, Anti-Fog 3D Glasses for Clear Vision
The supplied 3D polarizing glasses do not require batteries for operation and are lightweight. This makes them perfect for long surgeries where heavy, battery-operated glasses may fail or become uncomfortable. Furthermore, the glasses have an anti-fog coating to maintain clear vision even when wearing a surgical mask.
Rest Assured with Medical Standards
In order to realize safe and reliable monitors that can be used with confidence at any medical institution, EIZO acquires various medical and safety/EMC standards.
Model: EX4342-3D
P/N: 6GF6200-8UA30
