Eizo MS236WT 23-inch Medical Touch Monitor – Repair Service or Exchange

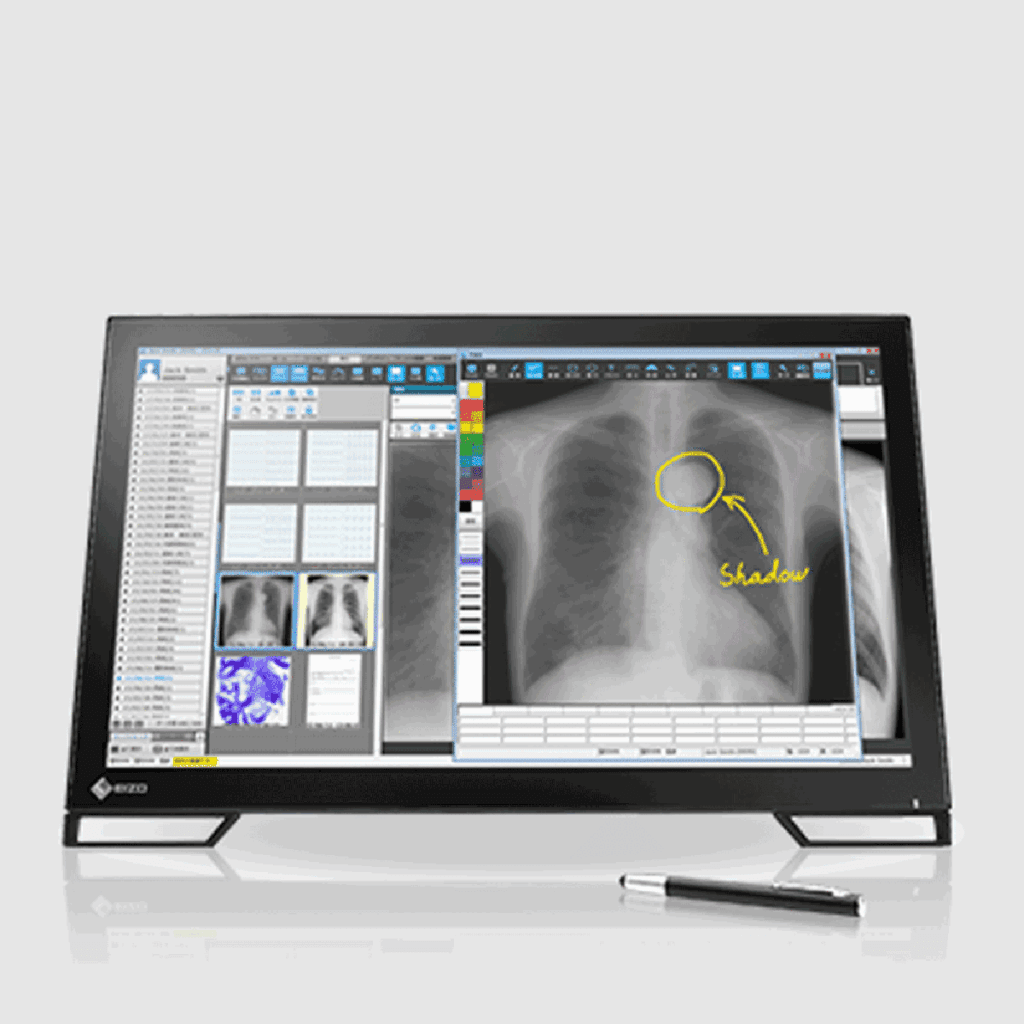

Eizo MS236WT 2MP 23″ multitouch color lcd monitor. Smooth and Detailed Handwriting Input with DICOM Preset Mode for Displaying Medical Records.
Eizo MS236WT Smooth and Detailed Handwriting with Stylus Pen
The Eizo MS236WT features projected capacitive touch technology which is more reliable compared to other touch technologies, allowing for drag and flick finger operations to be smooth. In addition to the supplied passive touch pen, the monitor also accepts input from commercially available active stylus pens, so small and detailed letters can easily be written into a medical record.
Eizo MS236WT Write While Resting Against the Screen
The screen can detect up to 10 simultaneous touches so multiple people can easily operate a variety of applications. The monitor is equipped with palm rejection which allows you to rest your hand directly on the screen without causing any unintended touch input, so that you can focus on your writing.
Optimal Medical Image Viewing
The monitor features a DICOM preset mode whose grayscale tone is preset on the production line for optimum reviewing of medical images.
Comfortable-to-Use, Fully Flat Design
The fully flat surface provides a seamless touch experience to the edges of the screen. This makes swiping motions and scrolling easy. Furthermore dust and fingerprints can be wiped off, making cleaning a breeze.
Eizo MS236WT High Durability
The touch screen has a non-scratch glass surface with a hardness of 5H. In addition, the monitor is guaranteed to endure up to 50 million touches, meaning that you can confidently use the monitor for a long time.
Touch Detection Control
Users can easily turn touch detection on or off by pushing the button conveniently located on the monitor’s side. This helps to prevent unintended inputs when cleaning the monitor.
Eizo MS236WT Quick Recovery Controls
Due to environmental factors such as electromagnetic noise, projective capacitive touch technology can malfunction. To combat this, the monitor is equipped with technology which adjusts the touch sensitivity to minimize incorrect touch response. This ensures that the screen maintains accurate touch interaction during use.
Dedicated Touch Panel Driver
In addition to Windows’ standard touch panel driver, a dedicated touch panel driver is also available for use with multi-monitor configurations and touch panel sounds.
Clear View from Any Angle
The Eizo MS236WT uses an LED-backlit IPS panel with wide viewing angles that minimizes color shift and contrast changes even when multiple people view the screen.
Flicker-Free Viewing
Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker which causes eye fatigue. The Eizo MS236WT relieves eye fatigue by regulating brightness to make flicker unperceivable.
Various Input Terminals
The monitor is equipped with DisplayPort, DVI-D, and D-Sub inputs which are conveniently located on the side for easy access.
Model Variation
The Eizo MS236WT comes in a reclining stand and without stand variety, with gray or black cabinet colors. You can easily choose the ideal model for your environment.
Eizo MS236WT Reclining Stand
The reclining stand provides flexible positioning to allow the monitor to rest flat on your desk when using a touch-pen, or to sit up when touching with your hand.
Customer Assurance with Medical Standards
The Eizo MS236WT meets various medical standards and safety/EMC standards for use in medical institutions.
3-Year Warranty
EIZO and its authorized distributors offer a three-year limited warranty.
Hiliex proudly presents a comprehensive range of Eizo medical displays tailored for healthcare professionals. From high-resolution Eizo radiology displays designed for precise diagnostic imaging to specialized Eizo surgical displays optimized for the operating room, our selection meets the diverse needs of modern medical environments. Additionally, our dedicated service and repair center ensures expert maintenance and repairs for all advanced medical imaging monitors, guaranteeing your equipment remains in peak condition for optimal patient care.
EIZO, which means image in Japanese, is a visual technology company that develops and manufactures high-end display solutions. EIZO integrates hardware and software technologies with consulting, web hosting, and other services to help customers in business, graphics, gaming, medicine, maritime, air traffic control, and other fields work more comfortably, efficiently, and creatively. Headquartered in Hakusan, Japan, EIZO has R&D and manufacturing facilities in Japan, China, Germany, and the U.S., and representation in more than 80 countries.
Ensure the optimal performance of your Eizo MS236WT display monitor with our comprehensive service and repair solutions. Our specialized technicians in our service and repair center are equipped to handle a wide range of peripherals, including Medical LCD’s, printers, cameras and recorders. Trust us to service & repair your imaging periphials to peak condition. To minimizing downtime ask about our exchange program.
Support
Model variations: MS236WT-BK
MS236WT-LGY: with Reclining Stand, gray
MS236WT-LBK: with Reclining Stand, black
MS236WT-FGY: without stand, gray
MS236WT-FBK: without stand, black
