Eizo RX250 2MP Color Diagnostic Display

  • Display Both Monochrome and Color
  • Achieve Clarity True to the Source Data
  • Create the Ideal Environment
  • Save Work Space with Sleek Cabinet Design
  • Save on Power Consumption
  • Reduce Reflections for Image Clarity
  • Hassle-Free Multi-Monitor Configuration
  • Make the Precise Diagnosis
  • Maintain the Precision
  • Model Variations: RX250BK, RX250ARBK

Description

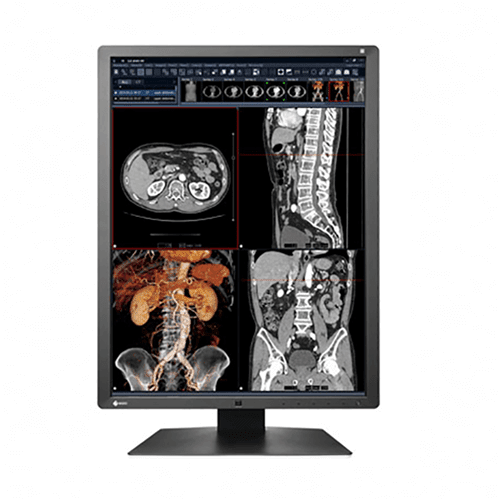

Eizo RadiForce RX250-BK 2MP Color Diagnostic Display Monitor

Eizo RX250 2MP Color Diagnostic Display Monitor All high-brightness LCD panels exhibit a decrease in sharpness of the original image due to aperture ratio of the pixels becoming larger. EIZO’s unique technology called Sharpness Recovery restores lost information in contours, resulting in an image shown with maximum clarity.

MTF (Modulation Transfer Function) measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on,  in the case of a 2 pixel line pair the MTF increases by approximately 47% (spatial frequency of 0.926 cycles/mm), resulting in a more clearly defined image.

Explore the EIZO RadiForce RX250 medical monitor

Create the Ideal Environment
The Eizo RadiForce RX250 2MP Color Diagnostic Display Monitor black front bezels are ideal for viewing the screen in dark reading rooms, making it easier to focus on images, while the original white stripe around the sides of the monitor presents a fresh, clean aesthetic.

Save Work Space with Sleek Cabinet Design
The Eizo RX250 monitor’s width, height, and depth were reduce by 15 mm, 37.5 mm, and 45.5 mm respectively –  27% less space than its predecessor, saving more workspace for other tasks. Reducing the width of the monitor’s frame reduces eye movement when comparing side-by-side images in a dual monitor configuration.

Save on Power Consumption
The monitor uses a new panel equipped with an energy-efficient LED backlight which reduces power consumption by 27% compared to its predecessor.
EIZO’s internal measurement under the recommended brightness of 400 cd/m2.

Reduce Reflections for Image Clarity
Anti-reflection (AR) coating greatly reduces reflections caused by outside light without affecting the light emitting from the monitor. It also minimizes the loss of contrast that causes blacks to appear washed out with an anti-glare (AG) coating. This makes AR coating ideal for environments with bright ambient lighting.

Hassle-Free Multi-Monitor Configuration
Using the DisplayPort connection, you can drive several monitors in a daisy chain sequence. This allows you to configure a multi-monitor setup without the complicated hassle of excessive cabling.

Make the Precise Diagnosis
EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14. This ensures the most consistent shading possible for the most accurate diagnosis.

Maintain the Precision
Perform a simplified calibration for DICOM Part 14 using the bundled RadiCS LE quality control software. RadiCS LE corrects the brightness and grayscale tones of the monitor to maintain image accuracy and consistency over time.

Manage Effortless Quality Control
An Integrated Front Sensor (IFS) housed within the front bezel measures brightness and grayscale tones and calibrates to the DICOM Part 14 standard. The hands-free IFS performs quality control tasks and does not interfere with the viewing area while in use. This dramatically cuts the workload and maintenance costs needed for maintaining monitor quality control.

Attain Steady Images Across the Screen
The Digital Uniformity Equalizer (DUE) function helps to even out fluctuations in brightness and chroma on different parts of the screen to provide smoother images, a quality typically difficult to attain due to the characteristics of LCD monitors.

View Accurate Images in Moments
The EIZO-patented drift correction function quickly stabilizes the brightness level of the monitor upon startup of wakeup from sleep mode, giving you the most accurate images quickly ready for viewing. In addition, a sensor measures the backlight brightness and automatically compensates for brightness fluctuations caused by ambient temperature and aging for a consistently stable display.

Comfortably View from Any Angle
Wide viewing angles allow you to view the screen from the side with minimal color shift, also permitting more than one person to view the monitor comfortably at the same time.

Select the Ideal Mode for Modalities
The RadiForce RX250 2MP Color Diagnostic Display Monitor CAL Switch function allows you to choose various modes for different modalities such as CR, CT, and endoscopy. It can be conveniently accessed using the monitor’s front panel buttons to easily switch to optimal image viewing conditions.

Experience Smooth Color Reproduction
The monitor supports 10-bit input for each RGB color, displaying more than one billion colors simultaneously. This ensures accurate color reproduction for 3D color rendering and image fusion.

Conserve Energy While Away
A presence sensor prompts the monitor to switch to power save mode when the user is away and resumes operation upon their return to conserve power when not in use. In the latest RadiForce models, the sensor detects the user’s presence using a heat sensing method. This increases the range and angle of detection compared to conventional detection methods, making it effective when using multiple monitors.

Improve Operability
EIZO’s highly versatile stand offers, tilt and a wide height adjustment range, enabling you to use the monitor with greater comfort.

Rest Assured with Medical Qualifications
The monitors meet the strictest medical, safety, and EMC emission standards.

Stay Confident with Stable Brightness
EIZO’s confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.

Warranty with Safety and Trust
EIZO and its authorized distributors offer a five-year full warranty.

Model Variations:
– RX250-BK: Anti-Glare coating, with stand, black
– RX250-ARBK: Anti-Reflection coating, with stand, black
Our service and repair center offers expert repairs!
Eizo Support

Specifications

Model Variations RX250-BK: Anti-Glare coating, with stand, black
RX250-ARBK: Anti-Reflection coating, with stand, black
Panel
Type Color (IPS)
Backlight LED
Size 21.3" (54.1 cm)
Native Resolution 1200 x 1600 (3:4 aspect ratio)
Viewable Image Size (H x V) 324 x 432 mm
Pixel Pitch (H x V) 0.270 x 0.270 mm
Display Colors 10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors
8-bit: 16.77 million from a palette of 543 billion (13-bit) colors
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 800 cd/m²
Recommended Brightness for Calibration 400 cd/m²
Contrast Ratio (typical) 1400:1
Response Time (typical) 20 ms (black-white-black)
Video Signals
Input Terminals DisplayPort, DVI-D
Output Terminals DisplayPort (daisy chain)
Digital Scanning Frequency (H / V) 31 - 100 kHz / 59 - 61 Hz
USB
Upstream USB 2.0: Type-B
Downstream USB 2.0: Type-A x 2
Power
Power Input AC 100 - 240 V: 50 / 60 Hz
Typical Power Consumption 38 W
Maximum Power Consumption 79 W
Power Save Mode 1 W or less
Sensor Backlight Sensor, Integrated Front Sensor, Presence Sensor, Ambient Light Sensor
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Hybrid Gamma PXL Yes
Work-and-Flow Point-and-Focus
Preset Modes CAL Switch (DICOM, CAL1, CAL2, Custom, sRGB, Text)
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight 8.2 kg
Net Weight (Without Stand) 5.4 kg
Hole Spacing (VESA Standard) 100 x 100 mm
Certifications & Standards CE (Medical Device), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC
FDA 510(k) Clearance for General Radiography
Dedicated Software
Monitor Quality Control Software RadiCS Supported
Supplied Accessories (May vary by country.
Signal Cables DVI-D (3 m), DisplayPort (3 m)
Others AC power cord (3 m), USB Type-A - USB Type-B cable (3 m), Utility Disk (RadiCS LE, PDF instructions for use, PDF installation manual), instructions for use
Warranty 5 Years

Additional information

Manufacturer

EIZO

Model

RX250, RX250ARBK, RX250BK
