Eizo S1934 19-inch Square IPS Monitor

  • Optimized Brightness with Auto EcoView
  • Three Inputs Including DisplayPort
  • Reduced Blue Light
  • IPS Panel with Wide Viewing Angles
  • Viewing Comfort with an Ergonomic Stand
  • Built to Last Five Years
  • Optional LCD Panel Protector
SKU: EIZO-S1934 Category: Brand:

Description

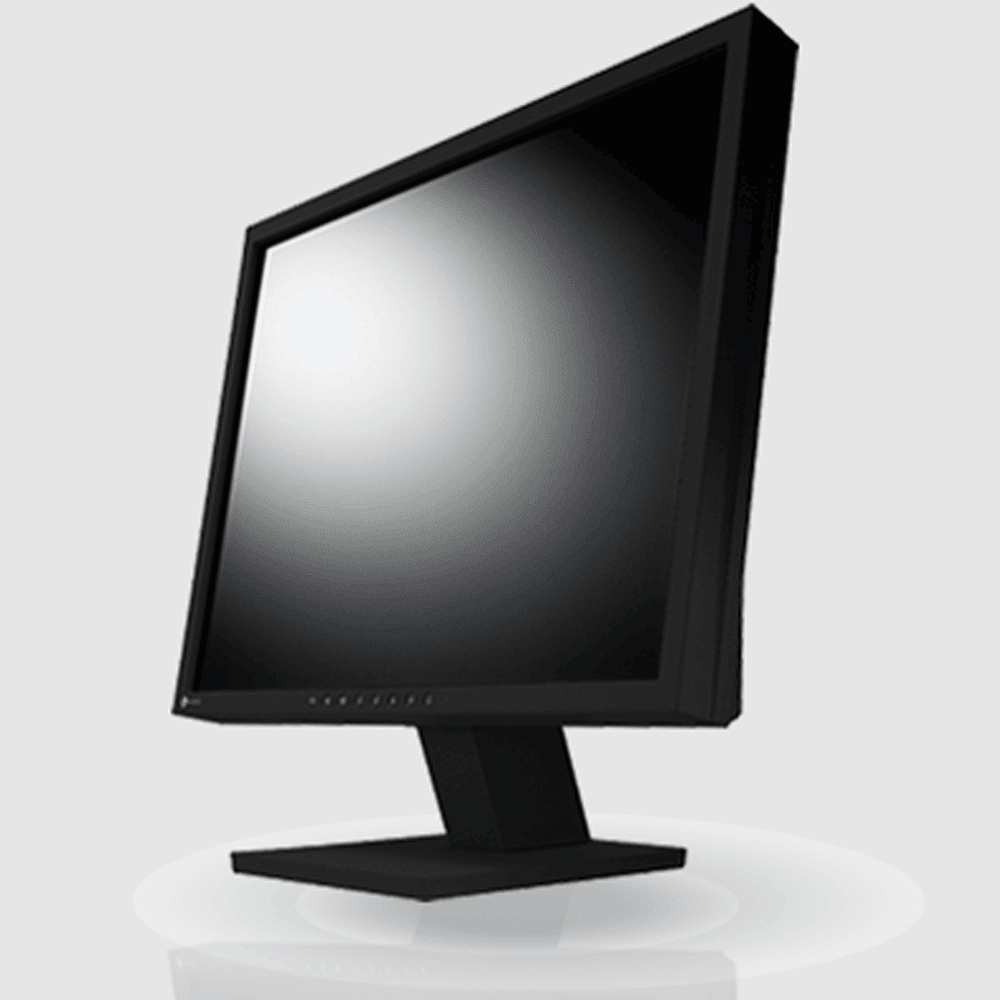

Eizo FlexScan S1934 19-inch Square IPS Monitor

Eizo S1934 19″ Square Monitor with IPS Panel for Offices and Control Rooms.

Optimized Brightness with Auto EcoView

The Auto EcoView function is a sensor on the front of the Eizo S1934 monitor that measures ambient light and optimizes the screen’s brightness to a level akin to viewing a sheet of paper under typical office lighting conditions. Since the screen is never too bright, eye strain is reduced while power consumption is cut by up to 50% compared to operating the Eizo S1934 monitor with Auto EcoView turned off and set to the default factory brightness of 100%.

Three Inputs Including DisplayPort

DisplayPort, DVI-D 24-pin, and D-Sub mini 15-pin inputs are included for connection with various graphics boards.

Eizo S1934 Reduced Blue Light

A preset mode called “Paper” adjusts the brightness, contrast ratio, and color temperature to simulate those of printed paper. Paper mode significantly reduces the amount of blue light emitted from the screen for more comfortable viewing.

Eizo S1934 IPS Panel with Wide Viewing Angles

The IPS (in-plane switching) panel offers 178° viewing angles to minimize color shift and contrast when viewing the screen at an angle. This ensures stable and consistent display when two or more people view the screen at once or in a multi-monitor environment.

Viewing Comfort with an Ergonomic Stand

Adjust the screen to the most comfortable position with 100 mm height adjustment, 30° tilt, 70° swivel, and 90° rotation for portrait mode. A stand with 30° tilt only is available as an option.

Eizo S1934 Built to Last Five Years

EIZO’s five-year warranty is two years or 67% longer than the standard three-year warranty of most brands. Even if the initial purchase price of the Eizo FlexScan S1934 is higher than another 19-inch monitor, the TCO (total cost of ownership) will likely be lower due to the significantly longer buying cycle and less need for repair.

Optional LCD Panel Protector

The FP-1901 protector fits easily between the LCD screen and bezel, has a light transmission rate of more than 90%, and includes both an anti-glare coating side to reduce light reflection and a glossy side for crisper, more vibrant images.

Model variations: S1934H-BK
S1934-HBK: With Height Adjustable Stand, Black
S1934-HGY: With Height Adjustable Stand, Gray
S1934-TBK: With Tilt Stand, Black
S1934-TGY: With Tilt Stand, Gray
S1934-FBK: Without Stand, Black
S1934-FGY: Without Stand, Gray

Hiliex proudly presents a comprehensive range of Eizo medical displays tailored for healthcare professionals. From high-resolution Eizo radiology displays designed for precise diagnostic imaging to specialized Eizo surgical displays optimized for the operating room, our selection meets the diverse needs of modern medical environments. Additionally, our dedicated service and repair center ensures expert maintenance and repairs for all advanced medical imaging monitors, guaranteeing your equipment remains in peak condition for optimal patient care.

EIZO, which means image in Japanese, is a visual technology company that develops and manufactures high-end display solutions. EIZO integrates hardware and software technologies with consulting, web hosting, and other services to help customers in business, graphics, gaming, medicine, maritime, air traffic control, and other fields work more comfortably, efficiently, and creatively. Headquartered in Hakusan, Japan, EIZO has R&D and manufacturing facilities in Japan, China, Germany, and the U.S., and representation in more than 80 countries.

Support

Brochure | Eizo Support

Specifications

Model Variations S1934-BK: With Height Adjustable Stand, Black
S1934-HBK: With Height Adjustable Stand, Black
S1934-HGY: With Height Adjustable Stand, Gray
S1934-TBK: With Tilt Stand, Black
S1934-TGY: With Tilt Stand, Gray
S1934-FBK: Without Stand, Black
S1934-FGY: Without Stand, Gray

Note: The stand can be removed

Cabinet Color  Gray, Black
Panel
Type  IPS
Backlight  LED
Size  19″ / 48 cm
Native Resolution  1280 x 1024 (5:4 aspect ratio)
Viewable Image Size (H x V)  374.8 x 299.8 mm
Pixel Pitch  0.293 x 0.293 mm
Display Colors  16.77 million from a palette of 1.06 billion
Viewing Angles (H / V, typical)  178° / 178°
Brightness (typical)  250 cd/m²
Contrast Ratio (typical)  1000:1
Response Time (typical)  14 ms (Gray-to-Gray)
Color Gamut (typical)  sRGB
Video Signals
Input Terminals  DisplayPort (HDCP 1.3), DVI-D (HDCP 1.4), D-Sub mini 15 pin
Digital Scanning Frequency (H / V)  31 – 64 kHz / 59 – 61 Hz
Analog Scanning Frequency (H / V)  31 – 64 kHz / 55 – 61 Hz
Sync Formats  Separate
Audio
Speakers  0.5 W + 0.5 W
Input Terminals  Stereo mini jack, DisplayPort
Output Terminals  Headphones (Stereo mini jack)
Power
Power Requirements  AC 100 – 240 V, 50 / 60 Hz
Typical Power Consumption  9 W
Maximum Power Consumption  21 W
Power Save Mode  0.5 W or less
Features & Functions
Preset Modes  Color mode (User1, User2, sRGB, Paper, DICOM)
Auto EcoView  Yes
OSD Languages  English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
Physical Specifications
Dimensions (Landscape, W x H x D)  With Height Adjustable Stand: 405 x 406.5 – 506.5 x 205 mm With Tilt Stand: 405 x 414 x 205 mm
Dimensions (Portrait, W x H x D)  334 x 442 – 542 x 205 mm
Dimensions (Without Stand, W x H x D)  405 x 334 x 61.5 mm
Net Weight  With Height Adjustable Stand: 5.6 kg With Tilt Stand: 4.6 kg
Net Weight (Without Stand)  3.8 kg
Height Adjustment Range  With Height Adjustable Stand: 100 mm With Tilt Stand: –
Tilt  With Height Adjustable Stand: 30° Up, 0° Down With Tilt Stand: 30° Up, 5° Down
Swivel  With Height Adjustable Stand: 35° Right / 35° Left With Tilt Stand: –
Pivot  With Height Adjustable Stand: 90° With Tilt Stand: –
Hole Spacing (VESA Standard)  100 x 100 mm
Environmental Requirements
Operating Temperature  5 – 35 °C
Operating Humidity (R.H., non condensing)  20 – 80 %
Certifications & Standards
  TCO Certified Generation 8, TUV/Ergonomics, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, EAC
Certifications & Standards
Signal Cables  DVI-D (2 m) , D-Sub mini 15 pin (1.8 m)
Others  AC power cord (2 m), audio cable (2.1 m), Screw for VESA mount x4, CD-ROM (PDF user’s manual), setup guide
Warranty  Five Years

Additional information

Manufacturer

EIZO CORPORATION

Model

S1934-FBK, S1934-FGY, S1934-HBK, S1934-HGY, S1934-TBK, S1934-TGY, S1934H-BK

OEM Part Number

5851964-81
