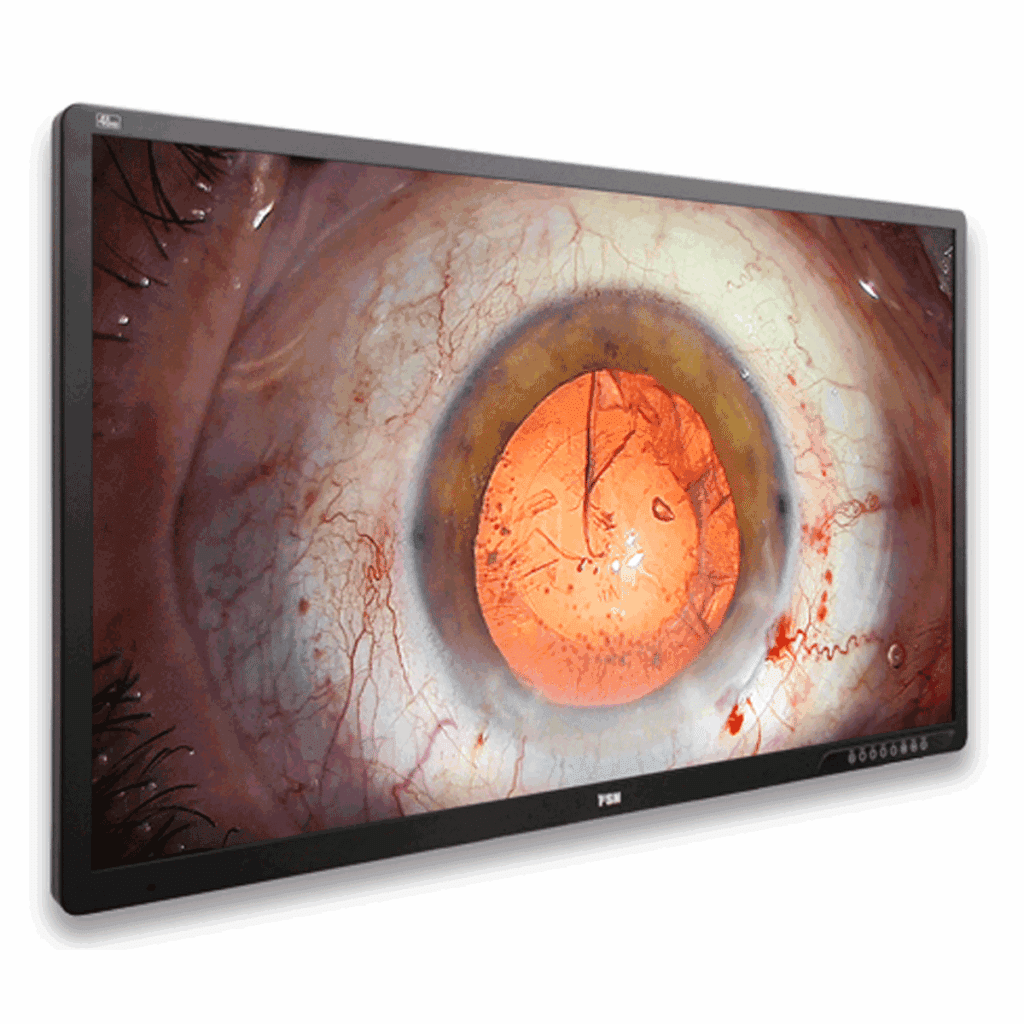

FSN FM-A5505DGC Surgical Display (FMA5505DGC)

FSN FM-A5505DGC 55-inch 4K 3D UHD Surgical Display

  • OLED technology
  • High contrast ratio, perfect blacks
  • Supports HDR for an incredible image
  • Immersive 3D viewing is ideally suited for large screens
SKU: FSN-FMA5505DGC Categories: , , , , Brand:

Description

FSN FM-A5505DGC 55-inch 4K UHD Surgical Monitor – Sales, Repair Service & Exchange

FSN FM-A5505DGC medical grade monitor is compatible with highly specialized visualization equipment used in operating rooms and surgical suites. It is suitable for showing multiple images at sizes big enough to remain visible across the operating room. Picture quality is crystal clear, and the user interface allows for complete control of image color and multi-window layouts.

A detailed 3D menu offers control for the best possible image format. Side By Side, Line By Line, Top Bottom, SDI level B-DS, SDI Dual Input. FSN Medical’s attention to engineering details, such as rounded bezel corners, backlit touch buttons, and easy to use interface menu controls, allow for safe and efficient interaction. This large screen medical monitor delivers everything that professionals need in a 3D, 4K UHD medical-grade monitor.

Looking for a repair on your monitor?  Our service and repair center offers expert repairs!

Support

Model: FM-A5505DGC (FMA5505DGC)

About FSN

FSN Medical Technologies is the name of medical video management products from Foreseeson Custom Displays. FSN is a pioneer and world leader in medical video signal management, distribution and display. From concept, design, prototype, certification and production, to interface design, all FSN products are characterized by their seamless usability, compact modularity and robust design.

Specifications

General Features
Panel 55 inch OLED
Resolution 3840 x 2160 pixel
Aspect Ratio 16:9
Active Area 1209.60 (H)mm x 680.40 (V)mm
Pixel Pitch (mm) 0.315 x 0.315
Response Time (typical) 1 ms (gray to gray)
Number of Colors 1.07 Billion
Luminance, Bypass (2D / 3D) cd/m² Peak 376/151 (min) 470/192 (typ) 25% white box
Normal 144/58 (min) 80/73 (typ) 100% white pattern
Luminance, D65 (2D / 3D) cd/m² Peak 366/135 (min) 420/174 (typ) 25% white box
Normal 136/55 (min) 170/69 (typ) 100% white pattern
Luminance, D65 (2D / 3D, HDR) cd/m² Peak 496/202 (min) 620/252 (typ) 10% white box
Normal 336/135 (min) 420/170 (typ) 25% white pattern
Gamut BT.709 and BT.2020 compatible
Surface Treatment Anti-glare
Viewing Angle (CR>10) (2D) R/L 120° U/D 120°
(3D) U/D 16°
Input Signal 1 x HDMI (2.0, HDCP 2.3), 2 x DP (1.2 SST), 4 x SDI (2 x SDI 3G), (2 x SDI 12G), 1 x DVI (single link, HDMI 1.4, HDCP 1.4)
Output Signal 1 x DP 1.2 (SST), 4 x SDI (2 x SDI 3G), (2 x SDI 12G), 1 x DVI (single link)
Power Supply SMPS (AC 100 ~240V)
Power Consumption 350W max, 160W typ
Accessories Included User manual, AC power cord, DP cable, HDMI cable, DVI-D cable, BNC cable, Remote control and batteries
Unit Dimension 1268.5(W) x 753.3(H) x 85(D) mm, 49.94(W) x 29.66(H) x 3.35(D) inch
Package Dimension 1453(W) x 937(H) x 300(D) mm, 57.2(W) x 36.89(H) x 11.8(D) inch
Weight 33 kg, 72.75 lbs. (monitor only), 43.8 kg, 96.56 lbs. (shipping package)
Certifications ANSI/AAMI ES60601-1(UL60601-1), CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device



Additional information

Manufacturer

FORESEESON CUSTOM DISPLAYS, INC.
Model

FM-A5505DGC (FMA5505DGC)
Condition

New
Screen Size

55-inch
