FSN FM-E3203DG 32” 4K

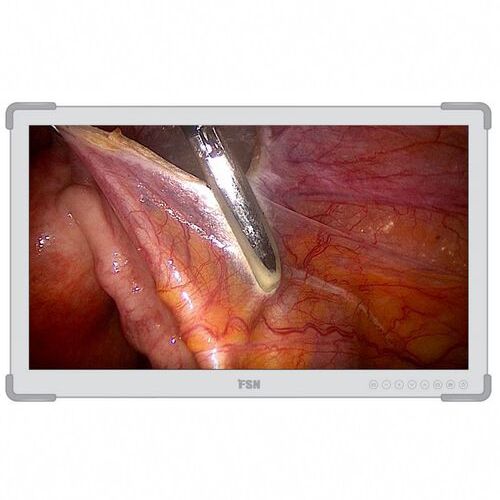

FSN FM-E3203DG 32” 4K Surgical Display

  • 4K (3840 x 2160 pixels)
  • Bonded front filter for higher brightness and contrast ratio
  • State-of-the-art surgical visualization, the best possible image
  • Ready, out of the box, for advanced digital OR installations
  • Flush-front glass surface, fast and easy to clean
  • Slim profile and narrow bezel for a streamlined design
  • HDMI, DVI, DisplayPort, 3G and 12G SDI
  • Model Variations: FME3203DG
SKU: FSN-FME3203DG Categories: , , , , , , Tags: , , , Brand:

Description

FSN FM-E3203DG 32-inch 4K Surgical Display

FSN FM-E3203DG 32 inch 4K surgical display features signal input options for HDMI, DVI, DisplayPort, 3G and 12G SDI. With a slim, sleek design and a flush front glass bezel, FM-E3203DG is ideal for showing super-sharp 4K images and mounting to most OR boom arm systems.

These 32 inch diagonal medical monitors from FSN Medial are designed with maximum viewing angles, allowing several clinicians to view the display in the same room without loss of image quality or distortion. The input source options include DVI, HDMI, and DisplayPort. The FM-E3203DG surgical model adds 3G and 12G SDI to the impressive selection of signal input choices.

Edge-to-edge protective front glass gives this monitor a slim, sleek appearance, and allows for easy cleaning of the front surface. Protective guards on the bezel corners help reduce bumping injuries, especially in today’s active operating room environments. A back cable cover is provided with each medical monitor to manage cords and wires. FM-E3203D and FM-E3203DG have built-in connections for DC 5 volt accessory power.

FSN Medical Technologies has developed solutions for displaying crystal clear 4K video. This cutting-edge technology has been engineered for medical visualization applications to allow surgeons to see live video images with incredible resolution. It allows the doctor to view intricate hand movements on-screen, and control medical visual content with pinpoint accuracy. FME3203DG can fine-tune surgical color and layout settings to individual preferences.

Our service and repair center offers expert repairs!
Model: FM-E3203DG
About FSN Medical Technologies

Specifications

Panel 32 inch TFT LCD (LED)
Resolution 3840 x 2160 pixels
Aspect Ratio 16 : 9
Active Area 708.48 (H)mm x 398.82 (V)mm
Pixel Pitch (mm) 0.1845 x 0.1845
Response Time (typical) 8 ms (rise time)
Number of Colors 1.07 Billion
Brightness (typical) 700 cd/m²
Gamut BT.709 and BT.2020 compatible
Contrast Ratio (typical) 1350 : 1
Surface Treatment Anti-reflection, anti-fingerprint
Viewing Angle (CR>10) R/L 178°, U/D 178°
Input Signal FM-E3203D 1 x HDMI 2.0, 2 x DP 1.2 (SST), 1 x DVI (single link)
Input Signal FM-E3203DG 1 x HDMI 2.0, 2 x DP 1.2 (SST), 1 x DVI (single link), 4 x SDI (3G), 2 x SDI (12G)
Output Signal FM-E3203D 1 x DP 1.2 (SST), 1 x DVI (single link)
Output Signal FM-E3203DG 1 x DP 1.2 (SST), 1 x DVI (single link), 4 x SDI (3G), 2 x SDI (12G)
Power Supply AC/DC Adaptor (AC 100~240V, DC 24V/6.6A)
Power Consumption FM-E3203D 105W max
Power Consumption FM-E3203DG 125W max
Accessories Included User manual, AC-DC adaptor, AC power cord, DP cable, HDMI cable, DVI-D cable, BNC cable (SDI models), Screw BH M4 x 14
Unit Dimension 773(W) x 478(H) x 75.2(D) mm, 30.43(W) x 18.82(H) x 2.96(D) inch
Package Dimension 914.4(W) x 749.3(H) x 234.95(D) mm, 36(W) x 29.5(H) x 9.25(D) inch
IP Rating IP33 - overall, IP44 - front side only
IK Rating IK07 with 5H AR glass
Weight FM-E3203D 11.56 kg, 25.49 lbs. (monitor with cover), 16.83 kg, 37.10 lbs. (shipping package)
Weight FM-E3203DG 11.80 kg, 26.01 lbs. (monitor with cover), 17.5 kg, 38.58 lbs. (shipping package)
Certifications ANSI/AAMI ES60601-1(UL60601-1), CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device
