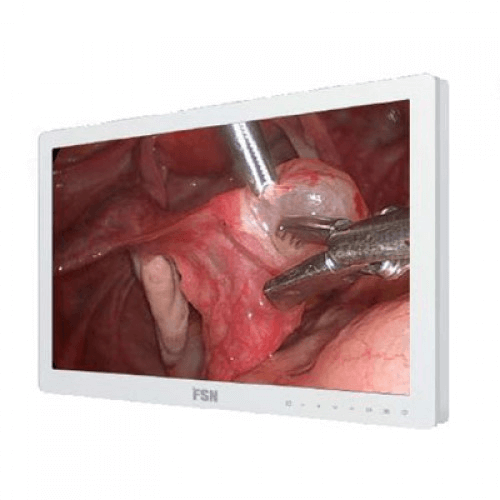

FSN FS-P2404D 24-inch HD LED Surgical Display

  • Higher brightness and contrast – 600 nits
  • Designed and manufactured to FSN’s strict quality standards
  • Approved as medical electrical equipment
  • Easy to install
  • Lightweight to meet boom and spring-arm weight requirements
  • Dependable service record in the field
  • Calibrated at the factory for optimum HD color and resolution
  • Perfect for dual-monitor requirements
  • Compliant to safety standards
  • Model: FSP2404D

Description

FSN FS-P2404D 24-inch HD LED Surgical Display

The FSN FS-P2404D is ideal for showing ultra-clear endoscopic, fluoroscopic, ultrasound, or other live surgical video content in a sterile environment. Front filter technology provides higher brightness, higher contrast ratio, and minimized glare. Flush-front glass with touch interface control is easy to clean and allows for fast procedure turnaround. Like all FSN displays, this unit features rapid signal detection of video sources found in the OR. FS-P2404D has protections to safeguard the monitor’s internal components from damage during intensive medical procedure conditions.

Detect subtle variations in surgical site tissue with motion adaptive deinterlacing and advanced 3D noise reduction. State-of-the-art technology is built into FSN display monitors, ensuring forward compatibility with future video signal standards. FS-P2404D satisfies integrated OR requirements for patient safety, reliability, precision, HD digital images, and unique space requirements. Like all FSN displays, it features rapid signal detection of video sources found in the OR, and can satisfy the need for smooth, artifact-free medical images.

Our service and repair center offers expert repairs!
Model: FS-P2404D
About FSN Medical Technologies

Specifications

Panel 24 inch TFT LCD (LED)
Resolution 1920 x 1200 pixels
Aspect Ratio 16:10
Active Area 518.4(H)mm x 324.0(V)mm
Pixel Pitch 0.27 x 0.27 mm
Response Time (G-to-G) 10 ms (typ. rise time)
Number of Colors 1.07 billion
Brightness 400 cd/m2
Contrast Ratio 1500 : 1 typical
Surface Treatment Anti-glare
Viewing Angle (CR>10) R/L 178°, U/D 178°
Input Signal 1 x DVI-D 1, 1 x DVI-D 2 (fiber optional), 1 x VGA (D-sub), 1 x SD/HD/3G-SDI (BNC), 1 x C-Video (BNC), 1 x S-Video (Y/C) (2 x BNC), 1 x Component (RGBS, YPbPr) (5 x BNC)
Output Signal 1 x DVI‐D, 1 x SD/HD/3G‐SDI
Power Supply AC/DC Adaptor (AC 100~240V, DC 24V 5A)
Power Consumption 55W max
Accessories Included User manual, AC-DC adaptor, AC power cord, DVI-D cable, BNC cable, Screw BH M4 x 10
Unit Dimension 575.4(W) x 392(H) x 82(D) mm, 22.66(W) x 15.43(H) x 3.23(D) inch
Package Dimension 670.05(W) x 657.35(H) x 234.95(D) mm, 26.38(W) x 25.88(H) x 9.25(D) inch
IP Rating IP33 – overall, IP44 – front side only
IK Rating IK07 with 5H AR glass
Weight 7.42 kg, 16.36 lbs. (monitor with cover), 11.81 kg, 26.04 lbs. (shipping package)
Certifications ANSI/AAMI ES60601-1(UL60601-1), CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device

Additional information

Manufacturer

FORESEESON CUSTOM DISPLAYS, INC.

Model

FS-P2404D
