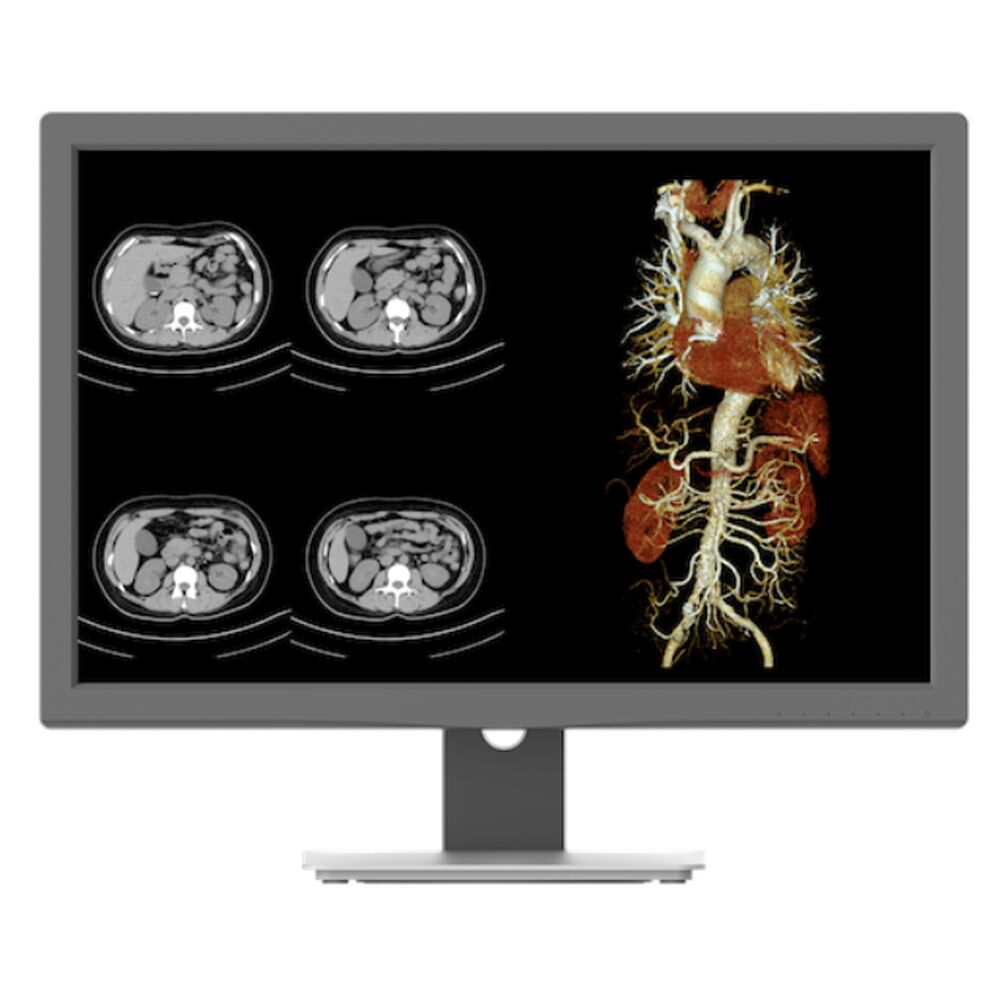

Jusha CR240G 24-inch 2MP Clinical Review Display Monitor
The Jusha CR240G with cutting-edge medical display technology. High resolution, high brightness, built-in DICOM standard LUT, suitable for clinical applications.
High brightness
The display panel has a maximum brightness up to 600 cd/m² and a maximum corrected brightness of 550 cd/m². Through the combination of brightness and contrast, a better sense of depth is created, which is more conducive to identifying the lesion.
Ins-guard real-time DICOM automatic calibration system
The DICOM calibration consists of two aspects, one being the accuracy calibration before leaving the factory, and the other being the real-time calibration after leaving the factory. JUSHA Ins-guard system is a DICOM real-time automatic calibration system. The built-in brightness sensor monitors the brightness of the center point in real-time and feeds it back to the calibration system to automatically calibrate the brightness of the liquid crystal display (LCD) panel, thereby ensuring compliance with the DICOM standard. The center point measures and controls the brightness, which is more in line with the actual viewing area brightness requirement of the screen.
Full-screen brightness balance correction SLE
The uncalibrated LCD has uneven brightness and a large difference in brightness between regions, which greatly affects the normal display of the gray scales of the Grayscale Standard Display Function (GSDF) of the medical image, and also affects the quality of the DICOM correction. JUSHA Medical Professional Display System measures and adjusts the brightness of each pixel to reduce the brightness and color unevenness between the center and the corner, which ensures that the entire display area of the display can be compliant with the DICOM GSDF standard. It is the uniform display brightness, reduced noise, perfect compliance with DICOM standards from the center of the corner, and increased contrast and detection accuracy that make the product have satisfactory image quality.
Reading light
The Jusha CR240G display has a built-in reading light mode with a reading clip that can be quickly turned on by a shortcut key to facilitate the doctor to read the film.
Support
Model: CR240G
Hiliex proudly offer Jusha medical displays customizable visualization solutions for the most demanding medical environments. Jusha Radiology Monitors are designed to meet stringent standards for accuracy, clarity and consistency. Jusha Surgical Monitors, specialized monitor used in the field of surgery, designed to provide high-quality and accurate visualization of medical images.
Jusha is a global medical high-tech enterprise founded in 1996. It is mainly engaged in the R&D, production and sales of intelligent imaging centers, intelligent operating rooms, intelligent medical injection systems and consumables, intelligent surgical robots and nosocomial infection control solutions. Meanwhile, Jusha also owns an independently operated medical surgery live broadcasting platform.
Additionally, our dedicated service and repair center ensures expert maintenance and repairs for all advanced medical imaging monitors, guaranteeing your equipment remains in peak condition for optimal patient care.
