A special monitor for endoscopic surgery adopts a high-resolution FHD LCD panel, with accurate color reproduction, good color depth, smooth dynamic range, and wider viewing angle. This meets today’s rapidly changing medical display needs, enabling a clear and precise visualization of surgical images. Waterproof design, antibacterial treatment, good compliance with electromagnetic compatibility regulations, a variety of video input and output interfaces. All of these make this product fully meet the requirements of various applications in operating rooms.

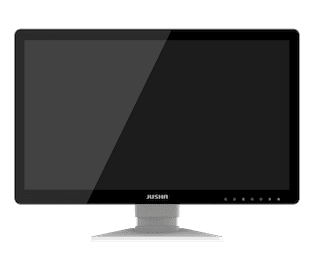

Jusha E270AG 27″ FHD Surgical Display
PRICE REQUEST
Description
Jusha E270AG 27″ FHD Surgical Display
Introduction
1. Accurate color reproduction
This JUSHA surgical monitor product line applies 36-bit LUT technology, which can accurately restore the color of the human body so that surgeons can make more accurate judgments.
2. High color depth
This JUSHA surgical monitor adopts the highest-level medical liquid crystal panel, which has good color, high brightness, and high contrast so that the layers of each tissue in the operation are well expressed and the clinical image is clear and vivid.
3. Smooth dynamic motion
The response time of this JUSHA surgical monitor is less than 14ms so that it can smoothly present high-resolution surgical videos, and display the bleeding status and other delicate operations during the operation, without smear and jitters.
4. Meet the operating room purification and anti-interference requirements
This JUSHA surgical monitor adopts a dust-free design, which meets the purification requirements of the operating room for surgical equipment. The metal-enclosed design can effectively prevent dust and liquid pollution during the operation. The body of the metal shell and the built-in shielding circuit can effectively prevent the interference of electronic surgical equipment such as high-frequency electrosurgery on the monitor and ensure the stability of the surgical display.
5. Various interfaces
This JUSHA surgical monitor can be compatible with a variety of analog signals and digital signals and can be fully compatible with the world’s major camera systems.
Warning: call_user_func() expects parameter 1 to be a valid callback, function 'download_file_force' not found or invalid function name in /home/hiliex.com/public_html/wp-content/plugins/woocommerce/templates/single-product/tabs/tabs.php on line 47
Specification
Model No: E270AG
| Model | E270AG |
| Type | IPS |
| Backlight | LED |
| Diagonal size | 27” (686 mm) |
| Display area | 597.888 × 336.312 mm |
| Resolution | 1920 × 1080 |
| Aspect ratio | 16:9 |
| Pixel Pitch | 0.3114 × 0.3114 mm |
| Color Depth | 10 bit |
| LUT Depth | 12 bit |
| Viewing angles | 178° |
| Maximum brightness (typical) | 1000 cd/m² |
| Maximum calibrated brightness | 800 cd/m² |
| Default brightness | 500 cd/m² |
| Minimum brightness | 200 cd/m² |
| Presets | GAMMA1.8, GAMMA2.0, GAMMA2.2, GAMMA2.4, GAMMA2.6, DICOM |
| Contrast ratio | 1000:1 |
| Response time (Ton+Toff)/2 | 14 ms |
| Features | PIP |
| Video input | DVI × 1, VGA × 1, CVBS × 1, S-VIDEO × 1, YPbPr × 1, RGBS × 1, SDI × 1 |
| Video output | DVI × 1, CVBS × 1, SDI × 1 |
| Other I/O | RS232 |
| Power input | DC: 24V, 6.25A Power, AC: 100~240V, 50/60Hz |
| Typical power | 70W |
| Maximum power | 84 W |
| Power saving | < 0.5 W |
| Backlight stabilizer | Yes |
| Other sensors | No |
| Protective glass | Yes |
| Housing color | White |
| Dimensions with stand (W x H x D) | 647.4 × (481-581) × 237.5 mm |
| Dimensions without stand (W x H x D) | 647.4 × 398.2 × 65.4 mm |
| Net weight with stand | 16Kg |
| Net weight without stand | 10Kg |
| VESA | 100 × 100 mm |
| Certifications | CCC, CE |
