Jusha E550EG 55″ 4K Surgical Display

  • Accurate color reproduction
  • High color depth
  • Smooth dynamic motion
  • Meet the operating room purification and anti-interference requirements
  • Various interfaces

Description

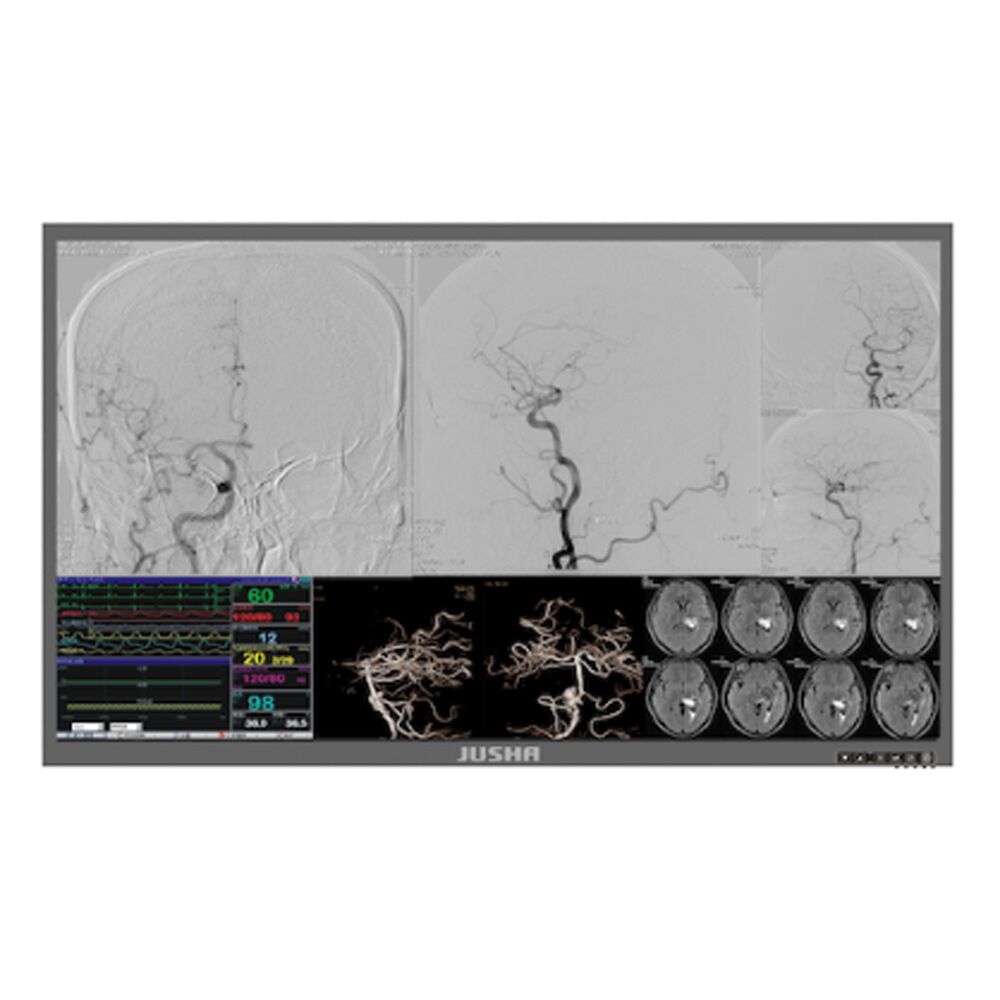

Jusha E550EG 55-inch 4K Surgical Display

Jusha E550EG 4K Video Fusion Display System for Interventional Surgery is an integrated surgery fusion display system, that could be used and applied in interventional operating rooms, reporting rooms, meeting rooms, remote teaching rooms, and various operating rooms. It supports picture-in-picture, picture-by-picture, and up to 6 windows at the same time. With various built-in layout presets and user custom modes, it covers most application scenarios. This product provides a high-performance and all-around video transmission, display, and control solution for different scenarios of interventional surgery.

Accurate color reproduction

All professional monitors in JUSHA surgical monitor product line apply 42-bit LUT technology, which can linearly represent more than 4.398 trillion colors, to accurately restore the color of the human body, so that surgeons can make more accurate judgments.

High color depth

This JUSHA surgical monitor adopts the highest-level medical liquid crystal panel, which has good color, high brightness, and high contrast so that the layers of each tissue in the operation are well expressed and the clinical image is clear and vivid.

Smooth dynamic motion

The response time of this JUSHA surgical monitor is less than 8ms, so you can smoothly present surgical videos from standard resolution to ultra-high resolution, and display the bleeding status and other delicate operations during the operation, without smear and jitters.

Meet the operating room purification and anti-interference requirements

This JUSHA surgical monitor adopts a dust-free design, which meets the purification requirements of the operating room for surgical equipment. The fully enclosed design can effectively prevent dust and liquid pollution during the operation. The body of the metal shell and the built-in shielding circuit can effectively prevent the interference of electronic surgical equipment such as high-frequency electrosurgery on the monitor and ensure the stability of the display.

Various interfaces

This JUSHA surgical monitor can be compatible with a variety of analog signals and digital signals and can be fully compatible with the world’s major camera systems.

Model: E550EG

Our service and repair center offers expert repairs!

About Jusha

Specifications



Resolution 3840×2160
Aspect ratio 16:9
Pixel Pitch 0.315 (H) x 0.315 (V)mm
Response Time 20ms (Rise+Fall)
Brightness (typical) 800cd/m²
Contrast Ratio 1200:1
LUT bit 14 bit
View angle ≥178°
Backlight Stabilizer Yes
Presets GAMMA1.8, GAMMA2.0,GAMMA2.2
GAMMA2.4,GAMMA2.6, DICOM,USER-G
USER-PUSER-S
Multi-Window PIP, PBP, up to 6 multi-window
Video Input Single-link DVI×7 (1920*1080@60Hz)
DP1.2×1 (4096*2160@60Hz)
HDMI2.0x1 (4096*2160@60Hz)
HDMI1.4×1 (3840*2160@30Hz)
3G-SDIx1 (1920*1080@60Hz)
12G-SDIx1 (3840*2160@60Hz)
Video Output Single-link DVI x 1
Power Requirements 100~240VAC, 50/60Hz
Max Power Consumption 300W
Typical Power Consumption 150W
Power Output DC 5V 1A x 2 (DC005)
Remote Control RJ-45
Cabinet color White
Dimensions (Without Stand) 745.7*1261.4*79.6mm
Net Weight (Without Stand) 34Kg
Hole Spacing VESA: 400*400mm. M8*20
OSD Language English, Chinese
