Jusha S9820 8MP 98-inch Color Medical Display

  • DICOM Calibration
  • 48-bit LUT
  • FocusView
  • Virtual Laser
  • Ambient light
  • Multi-window
  • CGA
  • Eco Mode

Description

Jusha S9820 8MP 98-inch Color Medical Display

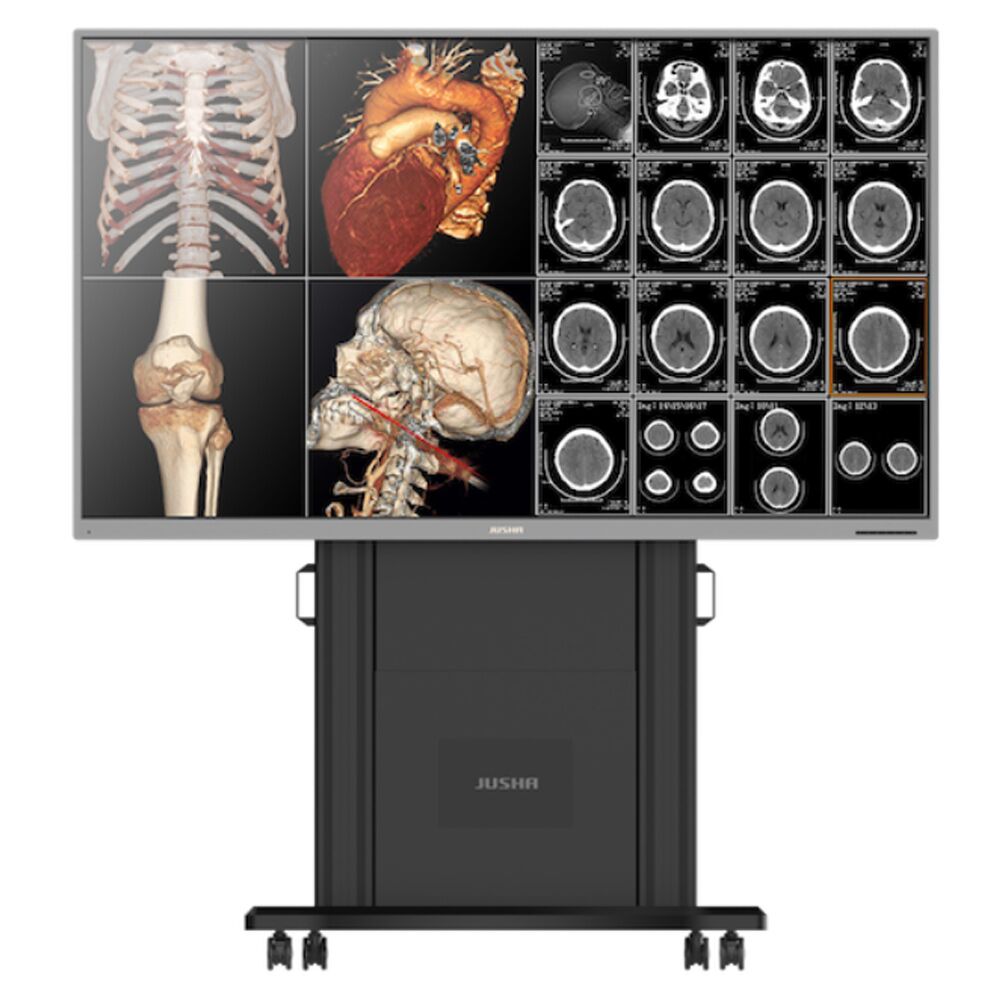

JUSHA S9820 is a 98-inch medical monitor specifically designed for multi-discipline and teaching application. Also, this product fits in the workflow for remote meeting and consulting, providing high quality medical images for reviewing.

Experience unparalleled clarity and precision with the Jusha S9820 8MP 98″ color medical display monitor. Designed specifically for medical professionals, this high-resolution monitor ensures that every detail is vividly displayed, making it perfect for diagnostics and patient evaluations. With its large screen size, you can easily view multiple images or data sets simultaneously, enhancing your workflow and efficiency. Plus, our dedicated sales and repair services guarantee that your investment is protected, keeping your Jusha S9820 monitor in top condition for years to come. Upgrade your medical imaging experience today!

DICOM Calibration
Every single unit is DICOM calibrated in factory, meeting the requirements for medical imaging reviewing.

48-bit LUT
Each pixel is displayed through 48bit lookup table, presenting a more accurate image and more smooth transition.

FocusView
This function applies a mask by tracking the cursor location. This helps users focus on certain area for diagnosis or comparing.

Virtual Laser
By changing the cursor into a red point, users can mimic the same feeling of using a laser pen in traditional projectors.

Ambient light
With build-in ambient light sensor, the screen will automatically change the brightness with the ambient environment. Also, DICOM standard will be compensated with the ambient light value at the same time, achieving higher medical imaging accuracy.

Multi-window
Up to four input signals can be displayed simultaneously, without extra device. This greatly simplifies cable connections and device management.

CGA
Color and Grayscale Auto-calibration (CGA) will distinguish color and monochrome pixels automatically, and calibrate the image with corresponding standards, such as DICOM and GAMMA.

Eco Mode
When the Jusha S9820 monitor enters sleep mode, the power consumption is under 0.5W.

Support

Model: S9820

Hiliex proudly offer Jusha medical displays customizable visualization solutions for the most demanding medical environments. Jusha Radiology Monitors are designed to meet stringent standards for accuracy, clarity and consistency. Jusha Surgical Monitors, specialized monitor used in the field of surgery, designed to provide high-quality and accurate visualization of medical images.

Jusha is a global medical high-tech enterprise founded in 1996. It is mainly engaged in the R&D, production and sales of intelligent imaging centers, intelligent operating rooms, intelligent medical injection systems and consumables, intelligent surgical robots and nosocomial infection control solutions. Meanwhile, Jusha also owns an independently operated medical surgery live broadcasting platform.

Additionally, our dedicated service and repair center ensures expert maintenance and repairs for all advanced medical imaging monitors, guaranteeing your equipment remains in peak condition for optimal patient care.

Brochure | User Manual | About Jusha

Specifications

Model S9820
Type IPS
Backlight LED
Diagonal size 97.52″ (2476.95 mm)
Display area 2158.8 × 1214.4 mm
Resolution 3840 × 2160
Aspect ratio 16:9
Pixel Pitch 0.5622 × 0.5622
Color Depth 30 bit
LUT Depth 48 bit
Viewing angles 178°
Maximum brightness (typical) 500 cd/m²
Maximum calibrated brightness 450 cd/m²
Default brightness 300 cd/m²
Minimum brightness 150 cd/m²
Presets DICOM, GAMMA2.0, GAMMA2.2, CIE, DSA
Contrast ratio 1300:1
Response time(Ton+Toff)/2 8 ms
Features Multi-window, Backlight stablizer, Focusview, Laser pointer, Remote control, USB auto-switching
Video input Single-link DVI × 2, Dual-link DVI × 2, DP1.2 × 1, HDMI1.4 × 1, VGA × 1
Video output DP1.2 × 1, HDMI 1.4 × 1, HDMI × 1
USB Ports Upstream USB-B 2.0 × 6, Downstream USB-A × 1
Power input AC: 100-240V~50/60Hz
Typical power 450W
Maximum power 600W
Power saving < 0.5W
Ambient light sensor Yes
Other sensors Temperature
Protective glass Yes
Housing color Black
Dimensions with stand (W x H x D) 2244 × 2144 × 908 mm
Dimensions without stand (W x H x D) 2244 × 1324 × 127.7 mm
Net weight with stand 309kg
Net weight without stand 161kg
VESA 428 × 500 mm
Certifications CCC, CE
