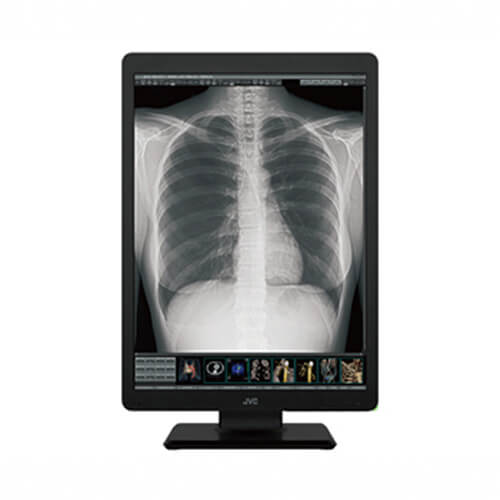

JVC CL-S300 3MP 21.3-inch Color Diagnostic Display

  • Clearly Defined Diagnostic Images
  • Dynamic Gamma
  • Auto Text Mode
  • Integrated QA Solution
  • Self-calibration
  • Razor-sharp Color Precision
  • Premium Design
  • LED Indicator / Front Buttons
  • Built-in Sensor
  • Space Saving
  • Two-tone Color
  • Wire Management / DisplayPort Daisy Chains
  • Workflow Improvement with Medivisor Utility
  • Model: CL-S300

Description

JVC CL-S300 3MP 21.3-inch Color Diagnostic Display Monitor

The JVC CL-S300 fully redesigned hardware and software bring innovation in multi-modality image reading.

JVC CL-S300 Clearly Defined Diagnostic Images

The CL-S300 i3 color series render more precise color and monochrome modality images. One of its unique technologies the built-in self-calibrating sensor ensures that the monitor constantly performs at its best.

Dynamic Gamma

Color Images are automatically recognized to provide optimized contrast, brightness and gamma. No user intervention is required.

Auto Text Mode

Brightness is automatically adjusted on patient lists and reporting applications to reduce eye strain.

Integrated QA Solution

QA Medivisor Agent providing calibration and QA standard testing capabilities through an intuitive and easy to navigate user interface makes it effective to manage day-to-day operation in the radiology department. Simplified calibration scheduling tool QA Medivisor Agent LE is included.

JVC CL-S300 Self-calibration

With the integrated color front sensor, the JVC CL-S300 self-calibrates to the DICOM Part 14 Standard on a regular schedule.

Razor-sharp Color Precision

Utilizing its unique X, Y, Z, color level tracking and color management technologies, any of the i3 model perfectly color-matches one another.

Premium Design

A simple and slim design for a modern look

LED Indicator / Front Buttons

The soft LED light indicator and front buttons are streamlined for intuitive operation.

JVC CL-S300 Built-in Sensor

JVC CL-S300 Built-in Sensor

Space Saving

The new design of the JVC CL-S300 reduces 25% of the stand footprint compared to the conventional models.

JVC CL-S300 Two-tone Color

The back side features a stylish gray-white tone color.

Wire Management / DisplayPort Daisy Chains

With the DisplayPort 1.2, the use of daisy chains allows for easier wiring connections.

Workflow Improvement with Medivisor Utility

Medivisor Utility enables execution of functions previously performed via monitor function keys, now accessible through mouse operations or shortcut keys. With a click on the window icon, reading support functions like Turbo Luminance and Visual Point Mode activate, enhancing reading workflow and reducing physician fatigue for improved work efficiency. (Provided on QA Medivisor Agent disk included with the monitor)

Model: CL-S300 (CLS300)

Support

Brochure | JVC Healthcare | JVC Medical Displays | JVC Diagnostic Displays | JVC Surgical Displays | JVC Support

Specifications

Model Name
CL-S300BF : Protective Filter
CL-S300BN : No Protective Filter
LCD Panel
Technology 21.3” color TFT IPS technology
Display Area 324.86 mm × 433.15 mm
Pixel Pitch 0.2115 mm × 0.2115 mm
Contrast Ratio 1500 : 1 (typ.)
Maximum Luminance 1000 cd/m² (typ.)
410 cd/m² / 500 cd/m² (calibrated)
Viewing Angle 178° vertical and horizontal
Visual Performance
Native Resolution 1536 × 2048
Display Colors 16.77 million colors from a palette of 68 billion colors
1.07 billion colors with DisplayPort and 10-bit viewer
Interface
Input Signals DVI-D (DVI 1.0 compliant)
DisplayPort (DisplayPort 1.2a compliant)
Output Signal DisplayPort (DisplayPort 1.2a compliant)
Plug and Play DDC2B compliant
Input Power Supply
Input Power Supply 100 V – 240 V 50 / 60Hz
Maximum Power Consumption 95 W (typ.)
Features
Calibration Control Luminance, Gamma, Color temperature Capable of storing 3 sets of LUT (Optional Calibration Kit is required)
OSD Information Display Model name, Serial No., Total operating time, Calibration settings (Operating time since last calibration, Luminance, Gamma), Current luminance, Color temperature and Ambient light, DICOM conformance
USB Hub USB Rev.2.0 compliant, Self-powered
USB upstream connector (x1), USB downstream connector (x2)
Other Features Uniformity Equalizer, Hardware pivot, LED indicator, Advanced power management, Human Presence Sensor, Dynamic Gamma, Auto Text Mode, Luminance stabilization, Multiple LUT, Self DICOM check, Self-calibration
Approvals
ANSI/AAMI ES60601-1 (2005) + A1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014), CE (EN60601-1, EN60601-1-2), RCM, FCC Part15 subpart B Class B , ICES-003-B, VCCI-B, FDA510(k), J-Moss, RoHS, EAC, KC
Physical Characteristics
Dimensions(W x H x D) Landscape : 493 mm × 451.3 / 546.3 mm × 196.5 mm
Portrait : 361.5 mm × 517 / 612 mm × 196.5 mm
Weight approx. 10 kg
Tilt Stand Tilt, Swivel, Portrait / Landscape
Mount VESA standard (100 mm × 100 mm)
Security Slot Anti-theft security slot
Accessories
Power cord, DisplayPort cable, USB cable, Operation manual, Installation manual, Software (QA Medivisor Agent LE)

Additional information

Weight 29 lbs
Dimensions 23 × 11 × 23 in
Manufacturer

JVC KENWOOD CORPORATION

Model

CL-S300

P/N

CL-S300BF0UA, CL-S300BN0UA

GTIN: 00046838077531
