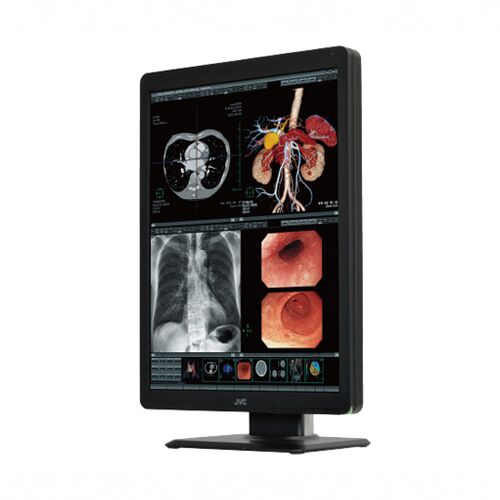

JVC CL-R211 2MP 21.3″ Clinical Review Display
JVC CL-R211 2MP 21.3” Clinical Review Display is an optimal solution where doctors need to view both grayscale and color images, and effectively covers multiple applications like PACS, CAD, PET and nuclear medicine.
Dynamic Gamma — One Pixel Based Contrast and Brightness, Gamma
With the CL-R211 color images are automatically recognized to provide optimized contrast, brightness and gamma. No user intervention is required.
Auto Text Mode — Auto Brightness Blinding Mode for Text Area
Automatic brightness control for text data to reduce eye strain for patient lists and reporting application.
LED Backlight for Image Stability and Energy Saving
Compared to the conventional CCFL backlight models, JVC CL-R211 with LED backlight system saves energy and will hold brightness much longer. Additionally, mercury-free LED backlight contributes to reduce the environmental impacts.
Built-in Sensor
With two built-in sensors for luminance stabilization and ambient light measurement, JVC CL-R211 consistently delivers unmatched image quality.
Ambient light sensor
An ambient light sensor is built-in so that calibration appropriate for the effects of ambient luminance is carried out.
Luminance sensor
The luminance sensor attached in front of the screen constantly monitors and accurately stabilizes luminance on the screen surface by sending feedback to the control circuit.
Remote Calibration
DICOM conformance check and calibration can be remotely performed. These remote management features will minimize the burden of system administrators.
* Optional PM Medivisor software is required.
DICOM Conformance Check
User friendly OSD functions include DICOM conformance check function.
Display Quality Control
The Medivisor Series software is user friendly tool to effectively manage JVCKENWOOD’s displays. Calibration software Medivisor Nx, quality assurance software QA Medivisor and performance monitoring software PM Medivisor interact closely with each other to help system administrators easily manage all JVCKENWOOD’s displays in the network.
DisplayPort
The CL-R211 implemented Display Port with 10 bit depth color in addition to conventional DVI input and achieved 1billion 64 million simultaneous color with 10 bit input.
Uniformity Equalizer
Luminance uniformity correction system will produce stable images across the screen.
User-selectable Display Configurations
Luminance/gamma settings are selectable from three preset levels according to the needs. User-selectable configuration enable stress free operations without specialized settings.
OSD Information Display
With a push of a button, the display’s current status can be checked such as the display model, total operating time, actual measurement of luminance, and calibration settings.
Display Status Indicator
Current display operating status can easily be checked by the front LED indicator.
Worldwide Medical Safety Standards
JVC CLR211 meets worldwide medical safety standards.
