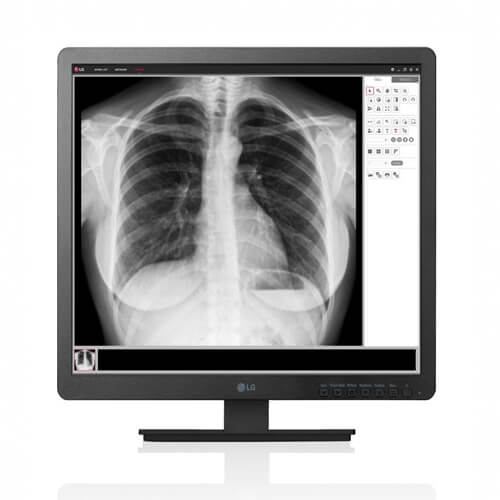

LG 19HK312C-B 19-inch Clinical Review Display – Refurbished

  • 1.3MP (1280 x 1024) IPS Display
  • 330 cd/m²
  • DICOM Part 14
  • Dynamic Sync Mode & Quick Response Time
  • Brightness Stabilization
  • Flicker Safe
  • Reader Mode

Description

LG 19HK312C-B 19-inch 1.3MP Clinical Review Monitor – Sales, Repair Service & Exchange

The LG 19HK312C-B is a 1.3MP 19 inch display that is compliant with DICOM Part 14 for Clinical Review Applications.

The superior detailed picture quality of the LG 19HK312C-B Clinical Monitor meets operating room requirements. With its 19-inch IPS 1.3MP display, the monitor improves work efficiency not only by enabling detailed observation but also by displaying multiple imaging applications. IPS technology offers outstanding picture quality along with a 178 degree wide viewing angle, so images can be viewed by multiple medical professionals from different angles with crisp clarity and minimal color shift.

Accurate Color Representation
The LG 19HK312C-B 1.3MP IPS display not only enables detailed observation of previously hard-to-see regions but also displays multiple imaging applications. In particular, the LG surgical monitor provides brightness and sRGB over 99 to ensure accurate color reproduction in the surgery room. Moreover, by adding a deep red color spectrum, the monitor assures color expression of red spectrum.

DICOM Part 14 Compatible
In the medical field, monitors must display images accurately and consistently, especially for the gray scale tones that may vary even between two monitors of the same model. To ensure the most accurate and consistent shading possible for medical images, LG measures and sets every grayscale tone on the production line to produce a monitor compliant with DICOM Part 14.

Quick Response Time
Whenever scanning is performed after checking up, a lot of heavy information is created and it can be difficult to clearly get all of this information at once. Since the LG 19HK312C-B clinical review monitor supports a low input lag and quick response time, it allows the monitor to receive a signal quickly and display a clear image with no distortion, for precise decoding information to achieve an efficient review.

Brightness Stabilization
A sensor measures the LG 19HK312C-B monitor’s backlight brightness stability and automatically compensates for brightness fluctuations caused by aging, for consistently stable images during usage.

Flicker Safe
Flicker Safe protects eyes from fatigue by virtually eliminating flickering. The steady image helps doctors protect their vision and allows them to continue working as long as they want.

Reader Mode
Reader Mode provides optimal conditions for clinical use. LG’s Reader Mode technology reduces blue light, protecting doctors’ eyes from fatigue.

Support

Model: 19HK312C-B
LG Support

Hiliex proudly presents LG medical monitors allow healthcare professionals to view videos and images with vivid colors, high image quality, wide viewing angles, delicate details, auto brightness, and consistent color reproduction in order to more accurately review and diagnose. LG diagnostic monitors get high resolution and image clarity for diagnosis, including Pathology Mode – like looking through a microscope. LG surgical monitors innovative surgical monitors offer vivid colors, high resolution, and other incredible options. Explore LG clinical review monitors with crisp clarity, brightness, and vivid color representation for clinical use.

Discover the complete medical display line-up of LG Electronics, designed to enhance diagnostic accuracy and improve patient care. These high-resolution monitors offer exceptional clarity and color accuracy, ensuring that medical professionals can rely on precise imaging for critical decisions. With advanced features such as ergonomic designs and customizable settings, LG Medical Displays provide a seamless integration into any clinical environment, elevating the standard of healthcare delivery. Explore our range today to find the perfect solution for your medical imaging needs.

The LG Electronics USA Business Solutions B2B Division serves customers in a variety of markets including but not limited to lodging and hospitality, digital signage, systems integration, healthcare, education, government, and industrial markets.

Based in Lincolnshire, IL, with its dedicated engineering and customer support team, LG Electronics USA Business Solutions B2B Division delivers business-to-business technology solutions tailored to the individual needs of business environments.

Ensure the optimal performance of your LG 19HK312C-B clinical review display monitor with our comprehensive service and repair solutions. Our specialized technicians in our service and repair center are equipped to handle a wide range of peripherals, including Medical LCD’s, printers, cameras and recorders. Trust us to service & repair your imaging periphials to peak condition. To minimizing downtime ask about our exchange program.

Specifications

Panel
Size 19″ class (19″ Diag.)
Pixel Pitch (mm) 0.294mm x 0.294mm
Panel Type IPS
Response Time (on/off) 14ms (Typ)
Viewing Angle (CR≥10) 178 / 178
Aspect Ratio 5:4
Contrast Ratio (Original) 900:1
Resolution 1280 x 1024
Color Depth (Number of Colors) 16.7M (8bit)
Brightness 330 cd/m²
Color Gamut (CIE 1931) NTSC 72%
(DFC) Mega
(GTG) 5ms (Faster)
Surface Treatment Anti-Glare 3H
Signal Input
DVI-D x1
HDMI x1 (1.4)
DisplayPort x1 (1.2)
USB USB3.0 1up 2down
Jack Location Rear
D-Sub x1
Power
Type PSU (Internal Power)
Input 100-240Vac, 50/60Hz
Output 24V 2.1A
Sleep Mode (Max) 0.5W
DC Off(Max) 0.5W
Normal On (Max) 50W
HDMI and DP Frequency
H-Frequency (D-Sub) 30~83 kHz
V-Frequency (D-Sub) 56~75 Hz
H-Frequency (DVI-D) 30~83 kHz
V-Frequency (DVI-D) 56~75 Hz
Frequency
HDMI 30~83 kHz
DVI-D 56~75 Hz
DisplayPort 56~75 Hz
D-Sub D-Sub
Resolution
D-sub 1280 x 1024
HDMI 1280 x 1024
DVI-D 1280 x 1024
Control Key
Key Number (Power Key Included) 7
LED Color (On Mode) Green
Key Location Front
Key Type Tact
LED Color (Power save mode) Green Blinking
OSD
Country Worldwide
Number of Language 17
Special Features
DDC/CI Yes
HDCP Yes
Flicker Safe Yes
Plug & Play Yes
DICOM Mode Yes (Kδ <= 10%)
Picture Mode Yes
Key Lock Yes
Response Time Control Yes
Color Calibrated Yes
Super Resolution+ Yes
Original Ratio Yes
Gamma Gamma 1.8, Gamma 2.0, Gamma 2.2,Gamma 2.4, Gamma 2.6, DICOM Gamma curve
Color Temperature 6500K / 7500K / 9300K, Manual (5000K ~ 10000K)
Factory Calibration Yes (Delta E≤5, Gamma 1.8 ~ 2.6 / DICOM curve)
H/W Calibration Yes (Calibration 1-2 Mode)
Dynamic Sync Mode (Thru Mode) Yes
Brightness Stabilization Yes
Uniformity Compensation Yes
DPM Yes
User Preset Yes
Reader Mode Yes
Dual Controller Yes
Automatic Standby Yes
True Color Pro Yes
4 Screen Split Yes
On Screen Control Yes
Color
Front Black
Stand Black
Base Black
Back Cover Black
Stand
Pivot Yes ( -90~0~+90)
Base Detachable Yes
Height (mm) Yes (range 130mm)
Tilt (Angle) Yes (-5°~35°)
One Click stand set-up Yes
Swivel (Angle) Yes (-177.5° ~ +177.5°)
Cabinet
Monitor (with Stand) 16.1″ x 9.8″ x 15.3″
Weight (with Stand) 11.2 lbs
Weight (Without Stand) 6.4 lbs
Monitor (without Stand) 16.1″ x 2.3″ x 13.5″
Box 47.5″ x 50.4″ x 19.9″
Weight (Box) 16.3 Ibs.
VESA® Wall Mount 100 x 100
Standard
Windows 10 Yes
FCC FCC part 15 Class A
FDA (US) FDA Class I
Others DICOM part 14
CE (EU) Yes
CMDR (Canada) CMDR (Canada)
cUL (US/Canada) ANSI/AAMI ES 60601-1 CSA CAN/CSA-C22.2 NO. 60601-1
IEC (Global) IEC60601-1
RoHS / REACH / WEEE Yes
EN (EU) and CB (EU) EN60601-1
CE MDD (EU) CE (MDD) Class I
Accessories
Power Cord Yes (5.9 ft)
HDMI Yes
D-Sub Yes
DVI-D Yes
USB Yes (USB3.0)
Display Port (1.2) Yes
Factory Calibration Report Yes
Warranty Card Yes
CD-ROM Yes (User Manual/True Color Pro/Dual Controller/On Screen Control 2.0)
Others Adapter
Other
Warranty 3-Year Limited Warranty Parts/Labor/Backlight
UPC 7 19192 61760 5

Additional information

Weight 16.3 lbs
Manufacturer

Model

GTIN: 00719192617605
