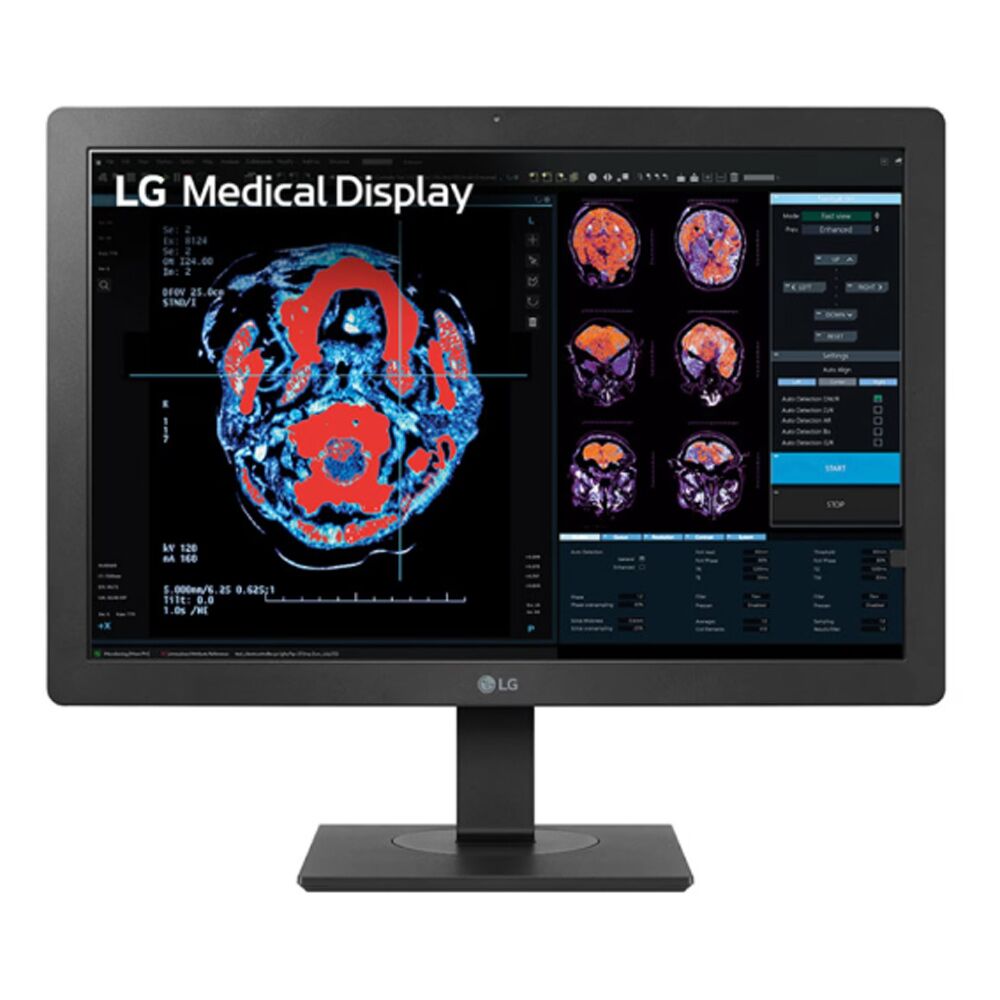

LG 24HR513C-B 24-inch 2MP IPS Diagnostic Monitor

  • General Radiology Viewing
  • Internal Front Calibration Sensor
  • Focus View Mode | Pathology Mode
  • Convenient Management with *LCS Medical
  • Daisy Chain
  • User-friendly Monitor Stand with Bi-Directional Auto Pivot Support
  • Supports a Variety of Interfaces, Including an HDMI Port
  • Model: 24HR513C-B

Description

LG 24HR513C-B 24-inch 2MP IPS Diagnostic Monitor

Introducing the LG 24HR513C-B 24 inch 2MP IPS Diagnostic Display for General Radiology Viewing Internal Front Calibration Sensor.

Consistency in Medical Images
The front-sensor, supported by calibration software, allows calibration without the need for additional measuring equipment, and helps maintain stable image quality.

Fully Focus on the Region of Interest
The LG 24HR513C-B features Focus View Mode which highlights specific parts of the medical image. Users can easily select and focus on areas of concern while darkening the rest of the screen.

As if Looking at a Microscope
With Pathology Mode, the LG 24HR513C-B provides image clarity and accuracy as if you were looking at a microscope.

Simple Connection for a Clutter-Free Workspace
Daisy Chain Setup helps to enable a productive workspace. You can connect a LG 24HR513C-B with two *3MP diagnostic monitors, displaying patient charts on the LG 24HR513C-B and medical images on two 3MP monitors.

Customizable Workstation for Enhanced Usability
The LG 24HR513C-B is designed to be adjustable for the posture of users’ image review. The One-Click Stand makes the installation process simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added flexibility.

Automatically Adjusts Screen Brightness
The LG 24HR513C-B features an Auto Luminance Sensor which sets screen brightness properly for the ambient lighting.

Model: 24HR513CB
LG Support

Hiliex proudly presents LG medical monitors allow healthcare professionals to view videos and images with vivid colors, high image quality, wide viewing angles, delicate details, auto brightness, and consistent color reproduction in order to more accurately review and diagnose. LG diagnostic monitors get high resolution and image clarity for diagnosis, including Pathology Mode – like looking through a microscope. LG surgical monitors innovative surgical monitors offer vivid colors, high resolution, and other incredible options. Explore LG clinical review monitors with crisp clarity, brightness, and vivid color representation for clinical use.

Discover the complete medical display line-up of LG Electronics, designed to enhance diagnostic accuracy and improve patient care. These high-resolution monitors offer exceptional clarity and color accuracy, ensuring that medical professionals can rely on precise imaging for critical decisions. With advanced features such as ergonomic designs and customizable settings, LG Medical Displays provide a seamless integration into any clinical environment, elevating the standard of healthcare delivery. Explore our range today to find the perfect solution for your medical imaging needs.

The LG Electronics USA Business Solutions B2B Division serves customers in a variety of markets including but not limited to lodging and hospitality, digital signage, systems integration, healthcare, education, government, and industrial markets.

Based in Lincolnshire, IL, with its dedicated engineering and customer support team, LG Electronics USA Business Solutions B2B Division delivers business-to-business technology solutions tailored to the individual needs of business environments.

Specifications

Panel Type IPS
Inch (Aspect Ratio) 24-inch (16:10)
Resolution 2MP (1,920 x 1,200)
Surface Treatment Anti-Glare
Viewing Angle (CR≥10) 178° (Right/Left)/178° (Up/Down)
Brightness (Typ.) 600 cd/m²
Brightness (Stabilization) 350 cd/m²
Contrast Ratio 1,000:1
Response Time (G to G) 5 ms (GtG at Faster)
DICOM Compliant Yes
HW Calibration Yes (LG Calibration Studio Medical)
Picture Mode Custom, Mono, Pathology, Text, DICOM, DICOM (Custom), Calibration 1, Calibration 2
Super Resolution+ Yes
Focus View Mode Yes
Input Terminals HDMI x 1, DisplayPort x 1, DVI-D x 1
Output Terminals DisplayPort x 1 (Daisy Chain, 2MP / @60 Hz)
USB USB 3.0 2 Upstream, 2 Downstream
AC Input 100 – 240 Vac, 50 / 60 Hz
Power Consumption (Max) 65W
Power Consumption (DC Off) Less than 0.3 W
Dual Controller Yes
Reader Mode/Flicker Safe Yes
Auto Luminance Sensor Yes
Front Sensor (Built-in Calibration) Yes
Weight (With Stand) 15.7 lbs. / 7.1 kg
Weight (Without Stand) 10.0 lbs. / 4.35 kg
Adjustable Stand Pivot (Bi-Directional), Swivel (±45°), Tilt (-5° to 25°), Height (5.9 in. / 150 mm)
Wall Mount Size 100 x 100 (mm)
Limited Warranty 3 Years

Additional information

Manufacturer

LG

Model

24HR513C-B

GTIN: 00195174080214
