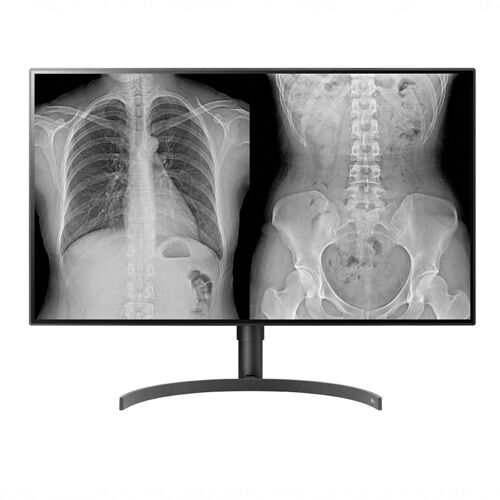

LG 32HL512D-B 31.5″ 8MP Color Diagnostic Display

  • 31.5″ 8MP IPS Display
  • Multi Resolution Mode
  • PBP / Dual Controller
  • Auto Luminance Calibration
  • Clinical Pathology Mode
  • Ergonomic Design
  • Hiliex Inc. Exclusive PerfectLum Calibration Bundle included
  • 3 Year Software Support
  • 5 Year Hardware Warranty

Contact us directly for Volume Order Pricing and Shipping Rates. We offer special pricing and discounts on custom requirements and requests from Healthcare & Health System, Government, Purchasing Group facilities and OEM’s (Original Equipment Manufacturers).

Description

LG 32HL512D-B 31.5″ 8MP Color Diagnostic Display

The LG 32HL512D-B new 8-megapixel radiology monitor (model 32HL512D – FDA 510k Class II approved) has a larger screen than its 27-inch predecessor and employs LG NanoCell IPS display technology for image quality optimized for accurate reviews. While reducing unwanted light wavelengths, the NanoCell IPS display enhances color purity to reproduce precise images that can be clearly seen from almost any vantage point. This 31.5-inch 8MP diagnostic monitor is lightweight and cost-effective, while being designed to deliver excellent image quality. It features out-of-the-box DICOM calibrated to ACR- AAPM-SIIM guidelines. With two DisplayPort video inputs, this monitor can be operated as two 4MP screens or as a single 8MP screen. Hiliex offers this display exclusively with the PerfectLUM Calibration Software and a 3 year software support plan by Shareden Imaging on top of the 5 year Manufacturer Warranty on the Display.

Accurate Image from Any Angle

The LG 32HL512D 31.5-inch 8MP IPS display facilitates precise diagnoses of medical images. The 178° wide viewing angle lets patients and doctors to see accurately reproduced images with minimal distortion.

Compatible with Every Device

The connection to the various types of devices is essential for the diagnostic monitor. Thanks to 32HL512D’s multi resolution mode, you can adjust the resolution of monitor to optimize to the connected device.

Realistic Color Reproduction

As LG 32HL512DB monitor adopts the clinical pathology mode with improved color reproduction, can deliver images from the microscope vividly without color distortion.

Sustained Picture Quality

Built-in Auto Luminance Calibration helps to increase productivity and efficiency. It converts automatically the medical images to more suitable images to make a exact diagnosis.

Multiple Signals on One Screen

PBP (Picture By Picture) with Dual controller, control multi devices connected to one screen with one keyboard or mouse, helps to increase convenience in review. You can review multiple information in parallel on one screen.

Designed for Comfort & Immersion

Its ergonomic stand, two-way pivot adjustment and narrow bezel can realize an optimized diagnostic workspace. Rotate two monitors in portrait and use side-by-side for the ultimate reading experience.

About LG Medical

Specifications



Size (Inch) 31.5"
Resolution 3840x2160
Panel Type Nano IPS
Aspect Ratio 16:9
Pixel Pitch 0.18159mm x 0.18159mm
Brightness (Typ.) 450 cd/m²
Color Gamut (Typ.) DCI-P3 98% (CIE1976)
Contrast Ratio (Typ.) 1300:1
Response Time (Typical) 14ms (Off setting), 5ms (Faster setting)
Viewing Angle (CR≥10) 178º (R/L), 178º (U/D)
Surface Treatment Anti-Glare 3H
Wall Mountable 100 x 100 mm
Dimension with Stand (W x H x D) 28.3 x 23.2 x 9.1 in 718.2 x 590.0 x 231.2 mm
Dimension without Stand (W x H x D) 28.3 x 16.3 x 1.8 in 718.2 x 414.3 x 45.1 mm
Dimension in Shipping (W x H x D) 33.0 x 21.8 x 9.4 in 838 x 553 x 240 mm
Weight with Stand 16.1 lbs / 7.3 kg
Weight without Stand 13.0 lbs / 5.9 Kg
Weight in Shipping 24.4 lbs / 11.1kg
INPUT/OUTPUT DisplayPort YES - Version 1.4 (2)
HDMI YES - Version 2.0 (1)
USB Downstream Port YES - Version 2.0 (2)
USB Upstream Port YES - Version 2.0 (1)
AC Input 100-240v
DC Output 19V, 3.42A
Power Consumption (Max) 65W
Power Consumption (Sleep Mode) Less than 0.5 W
Standard IEC (IEC 60601-1 / IEC 60601-1-2)
EN (EN 60601-1 / EN 60601-1-2)
CSA( CAN/CSA C22.2 No.60601-1, CSA 22.2 No.601.1-M90)
FCC (FCC part 15 Class A)
UL60601-1
FDA
CE(MDD 93/42/EEC,2007/47/EC)
ISO13485
GMP
KGMP
CE(EU)
RoHS
REACH
WEEE
MFDS(KR)
Limited Warranty 5 Year

Additional information

Weight 400 lbs
Dimensions 33 × 22 × 10 in
