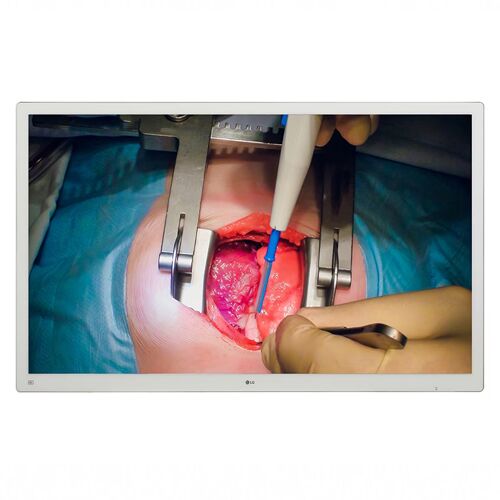

LG 55MH5K-W 55-inch 4K Surgical Display – Refurbished

  • 55″ 4K (3840 x 2160) IPS Surgical Monitor
  • HDR10 Support
  • 12G-SDI Support
  • Failover Input Switch
  • Mirror & Rotation Mode
  • Up to 4PBP, PIP

Description

LG 55MH5K-W 55″ 4K Surgical Monitor – Sales, Repair Service & Exchange

Experience precision like never before with the LG 55MH5K-W 55-inch 4K Surgical Display. Designed specifically for medical environments, this display offers stunning 4K resolution that ensures every detail is crystal clear, allowing for accurate diagnostics and surgical procedures. Its high brightness and contrast levels enhance visibility, making it an essential tool for any surgical team.

Experience vivid images on the LG 55MH5K-W 55-inch 4K Display Surgical Monitor, equipped with an IPS panel that offers a wide 178° viewing angle.

The LG 55MH5K-W is built with advanced technology that supports a wide color gamut, ensuring true-to-life color reproduction. This means you can trust the display to provide the most accurate representation of tissues and organs, which is crucial during critical operations. Plus, its sleek design and lightweight build make it easy to integrate into any surgical suite without compromising space.

LG 55MH5K-W 4K Large Display for Surgery
This 4K surgical monitor features HDR10, properly displaying HDR images clearly. PBP, PIP & 12G-SDI Support

Multiple Signals on One Screen
The LG 55MH5K-W supports up to 4PBP, PIP, and extended ports, allowing you to view multiple signals simultaneously on a single screen.

LG 55MH5K-W 12G-SDI Support
The LG 55MH5K-W features a 55-inch 4K (3840×2160) IPS display with 12G-SDI Support, which enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.

Failover Input Switch
When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of the monitor.

Mirror & Rotation Mode
Conveniently flip and rotate the monitor to adjust to your surgery needs. Mirror & Rotation Modes allow you to select a convenient 180° rotated/mirror image.

IP 45 & IP32
With ratings of IP 45* on the front and IP 32* on the body except for front, this surgical monitor is protected against contact with solid objects and water.

Durability is key in a medical setting, and this display is designed to withstand the rigors of daily use. With features like anti-glare and anti-reflective coatings, you can be confident that the LG 55MH5K-W will perform reliably under various lighting conditions. Elevate your surgical capabilities and invest in a display that prioritizes clarity, accuracy, and durability.

Support

Model: 55MH5K-W
Brochure | Owners Manual | LG Medical Support

Hiliex proudly presents LG medical monitors allow healthcare professionals to view videos and images with vivid colors, high image quality, wide viewing angles, delicate details, auto brightness, and consistent color reproduction in order to more accurately review and diagnose. LG diagnostic monitors get high resolution and image clarity for diagnosis, including Pathology Mode – like looking through a microscope. LG surgical monitors innovative surgical monitors offer vivid colors, high resolution, and other incredible options. Explore LG clinical review monitors with crisp clarity, brightness, and vivid color representation for clinical use.

Discover the complete medical display line-up of LG Electronics, designed to enhance diagnostic accuracy and improve patient care. These high-resolution monitors offer exceptional clarity and color accuracy, ensuring that medical professionals can rely on precise imaging for critical decisions. With advanced features such as ergonomic designs and customizable settings, LG Medical Displays provide a seamless integration into any clinical environment, elevating the standard of healthcare delivery. Explore our range today to find the perfect solution for your medical imaging needs.

The LG Electronics USA Business Solutions B2B Division serves customers in a variety of markets including but not limited to lodging and hospitality, digital signage, systems integration, healthcare, education, government, and industrial markets.

Based in Lincolnshire, IL, with its dedicated engineering and customer support team, LG Electronics USA Business Solutions B2B Division delivers business-to-business technology solutions tailored to the individual needs of business environments.

Ensure the optimal performance of your LG 55MH5K-W surgical display monitor with our comprehensive service and repair solutions. Our specialized technicians in our service and repair center are equipped to handle a wide range of peripherals, including Medical LCD’s, printers, cameras and recorders. Trust us to service & repair your imaging periphials to peak condition. To minimizing downtime ask about our exchange program.

Specifications

DISPLAY
Aspect Ratio 16:9
Backlight Dimming Technology Global Dimming
Backlight Technology LED
Backlight Type Edge
Brightness (Min.) 540cd²
Brightness (Typ.) 680cd²
Brightness(Stabilization) 400cd² (Dicom_350cd²)
Color Bit 10bit
Color Depth (Number of Colors) 1.07B
Color Gamut (Typ.) DCI-P3 86% (CIE1976)
Contrast Ratio (Min.) 800:1
Contrast Ratio (Typ.) 1100:1
Contrast Ratio with DFC Mega
Panel Type IPS
Peak Brightness (Min.) 540cd² (Peak)
Peak Brightness (Typ.) 680cd² (Peak)
Pixel Pitch 0.315mm x 0.315mm
Resolution 3840×2160
Response Time 5ms (GtG at Faster)
Size (Inch) 55
Size (cm) 138.8
Surface Treatment With Direct bonding Glass (3.1t, AR, AF)
Viewing Angle (CR≥10) 178º(R/L), 178º(U/D)
Color temperature 6500K / 7500K / 9300K, Manual(5000K~10000K)
FEATURE
DICOM Compliant Yes
Factory Calibration Yes (Delta E<5, Gamma 1.8~2.6/DICOM curve)
Failover Input Switch Yes
Hot Key Yes (2 keys)
Brightness stabilization Yes
Rotation & Mirror Mode Yes
Uniformity Yes
User Preset Yes
Black Stabilizer Yes
HDR10 Support Yes
HDR10 Effect Yes
HW Calibration Yes
OSD Language 17 Language
PBP Yes (2PBP/3PBP/4PBP)
PIP Yes
Picture Mode (SDR)Custom, Vivid, HDR Effect, Mono, REC709, REC2020, DICOM, Calibration 1, Calibration 2, (HDR)Custom, Vivid, Standard
Smart Energy Saving Yes
Super Resolution+ Yes
SW APPLICATION
LG Calibration Studio (True Color Pro) Yes
CONNECTIVITY
12G-SDI Yes (12G INx4 / OUTx4, SFP INx1)
RS-232 Yes
Equipotential Pin Yes
DP (HDCP Version) 2.2
DP (Max. Resolution at Hz) 3840×2160 at 60Hz
DP (w/o VRR) 56~61Hz
DP Version 1.2
DVI (Max Resolution at Hz) 1920×1080 at 60Hz
DVI (V Frequency) 56~61Hz
DVI-D Yes (1In / 1Out)
DisplayPort Yes (1In / 1Out)
HDMI Yes (1ea)
HDMI (HDCP Version) 2.2
HDMI (Max. Resolution at Hz) 3840×2160 at 60Hz
HDMI (w/o VRR) 56~61Hz
HDMI Version 2.0
USB Downstream Port YES(1ea/ver3.0)
USB Upstream Port YES(1ea/ver3.0)
[Location] Bottom
POWER
AC Input 100 – 240 V (50/60 Hz, 2.5~1.25A)
DC Output Built-in Power (PSU output 20.5V, 9A)
Power Consumption (DC Off) Less than 0.3W
Power Consumption (Max.) 180W
Type Built-in Power
MECHANICAL
Borderless Design Normal
Color (Back Cover) White
Color (Middle Cabinet) White
Down Height No Stand
Height Range No Stand
Mechanical Power Switch Yes
Wall Mountable 200 x 200 mm & 300 x 300 mm
DIMENSIONS/WEIGHT
Dimension in Shipping (W x H x D) 1490 x 880 x 172 mm
Dimension in Shipping (W x H x D) Dimension without Stand (W x H x D)
Pallet Stuffing (20ft/40ft/40ft HC) 84EA / 180EA / 180EA
Weight in Shipping 42.3kg
Weight without Stand 34.8kg
STANDARD
IEC (IEC 60601-1 / IEC 60601-1-2) Yes
EN (EN 60601-1 / EN 60601-1-2) Yes
IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35) Yes
EN (EN 62368-1 / EN 55032, 55035) Yes
cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1) Yes
CE MDR
FDA Registration (Class I)
ISO13485 Yes
RoHS Yes
REACH Yes
WEEE Yes
MFDS Yes
IP(Front/Except for front) IP45/IP32
Vandal-proof Yes
ACCESSORY
Calibration Report (Paper) Yes
Display Port Yes
Display Port (Color/Length) Black / 1.8m
HDMI Yes
HDMI (Color/Length) Black / 1.8m
Power Cord Yes
Power Cord (Color/Length) White / 2.8m

Additional information

Manufacturer

LG

Model

55MH5K-W

GTIN: 00195174053850
