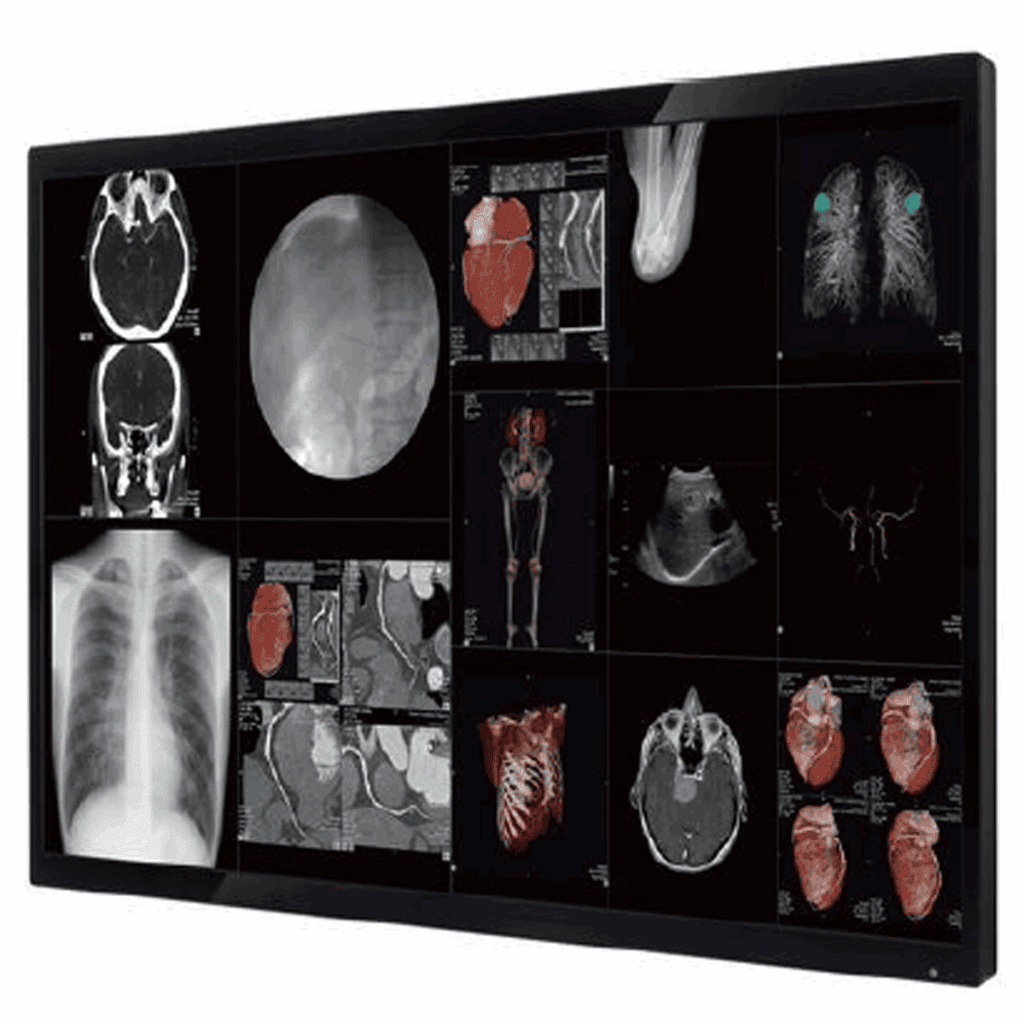

Optik View SC55844 55-inch 4K Surgical Display

  • 55” 4K wide angle screen supports team viewing from in-field, circulating and anesthesia locations
  • Ultra-high brightness and contrast improves depth percept-ion and deep cavity interrogation
  • Universal Connectivity; HDMI, DVI, SDI, Fiber and DisplayPort inputs so the user will have a consistent display option
  • Conforms to ITE 60601 certifications for safety and quality assurance to ensure years of reliable operation

Description

Optik View SC55844 55-inch 4K Surgical Monitor – Sales, Repair Service & Exchange

Optik View SC55844 enhanced case support through real time team viewing of multiple sources.

Clinically Focused
Designed to enhance procedure guidance and in-room education during minimally invasive procedures, the SC55844X 55” 4K Surgical Display supports team viewing of one or more sources to improve workflow through coordinated case support. This 55″ 4K Display delivers vivid, precise, and consistently uniform video and life-like images through:

  • 3840×2160 4K resolution improves visualization of minute details.
  • Ultra-high brightness and contrast improves depth percept-ion and deep cavity interrogation.
  • Wide screen enhances viewing of one or more sources.

Easy to Experience
TLGC surgical displays are easy to install, operate, and maintain. Built with proven componentry and established manufacturing practices, each SC55844X is thoroughly tested prior to Customer shipment and is backed by TLGC’s commitment to quality and satisfaction.

  • 55” 4K wide angle screen supports team viewing from in-field, circulating and anesthesia locations.
  • Universal Connectivity; HDMI, DVI, SDI, Fiber and DisplayPort inputs so the user will have a consistent display option
  • Conforms to ITE 60601 certifications for safety and quality assurance to ensure years of reliable operation.

Advanced
Configured with industry leading Surgical Ready features required by the most demanding medical environments, this 55” 4K Display is offered with and without impact shield. Sealed Design protects against ingress and simplifies disinfection.

  • Universal Connectivity configurable with HDMI, DVI, DP, SDI,and Fiber inputs enabling not only the latest technology but also providing backwards compatibility.
  • ClearViewAR delivers clear, crisp images to reduce eye fatigue.
  • Device Control Interface improves workflow.

Hiliex proudly presents Optik View medical displays customizable visualization solutions for the most demanding medical environments. Optik View Surgical Displays high definition and 4K endo surgical displays to provide your Customer’s with industry’s highest quality surgical video. Optik View® displays deliver bright, crisp, color accurate visualization designed to enhanced edge delineation, improve depth perception, and increase decision making confidence.

Optik View Diagnostic Displays for Radiology meet the standards of Picture Archiving and Communication Systems (PACS) visualization. Certified to industry standards, this full range of megapixel monochrome and color displays supports interpretation of high quality radiologic images including conventional films, CT, MRI, PET, Mammography, and other medical images stored on a PACS server.

The award winning Linden Group Corp launch of Optik View, a complete line of LCD display monitors designed specifically for the medical industry. TLGC has been serving the computing needs of the leading medical companies; no one is better positioned to understand the demanding requirements of the medical environment. Every monitor they manufacture has earned worldwide medical safety certification, UL, CE, FDA 510K, and performs with a precision and reliability unsurpassed in the industry.

Additionally, our dedicated service and repair center ensures expert maintenance and repairs for all advanced medical imaging monitors, guaranteeing your equipment remains in peak condition for optimal patient care.

Ensure the optimal performance of your Optik View SC55844 surgical display monitor with our comprehensive service and repair solutions. Our specialized technicians in our service and repair center are equipped to handle a wide range of peripherals, including Medical LCD’s, printers, cameras and recorders. Trust us to service & repair your imaging periphials to peak condition. To minimizing downtime ask about our exchange program.

Support

Model: SC55844
Brochure | Optik View Support

Specifications

Panel spec
Type TFT-LCD
Resolution 3840 × 2160
Active Screen Size (inches, diagonal) 55
Display Area (mm) 1209.6 (H) × 680.4 (V)
Pixel Pitch (mm) 0.372 × 0.372
Viewing Angle (degree) 178/178
Response time (ms) 8
Brightness (cd/m²) 800
Contrast Ratio 1200:1
Color Gamut NTSC 72%
Display Colors (bits) 8+HiFRC (1.07B)
I/O Interface
DVI SL-DVI In ×1
HDMI HDMI 2.0 In ×1, Out ×1
DisplayPort DP 1.2 In ×2, Out ×1
3G-SDI 3G-SDI In ×1, Out ×1
Audio In/Out N/A
USB Hub No
Serial Remote native RS232 DB9 ×1 (or RJ45 for SSL)
Features
Color Temp. Adjust 5400K, 6500K, 7600K, 9300K, User
Gamma Selection Native, 1.8, 2.0, 2.2, DICOM, BT709, BT2020, DCI-P3
OSD Languages English
User Color Adjust R Gain/G Gain/B Gain
Touch Screen No
Speakers N/A
DC Output DC 12V/1A ×1, DC 5V/2A ×1
Power Requirements
Power Supply 90-264 VAC 50-60Hz
Power Consumption (W) Full Brightness: 140, Power Saving: 8.4, Off: 3.7
Physical Characteristics
Dimensions (W× H × D) (mm) 1269.4 (L) × 740.2 (W) × 79.5 (H)
Weight (Kg) 25.3±1.3 (w/o Glass) / 31.8±1.6 (with Glass)
Glass (optional) Anti-reflection, anti-smudge
VESA Mounting (mm) 400 × 400, 400 × 200
Color (bezel/enclosure) Black/Black
Cable Cover No
Cable Cover No
IP Rating (Front) IPx2 (when optional glass is installed)
IP Rating (Back Cover) No
Environmental
Operating Temperature (°C) 0 to 40
Operating Humidity 20% to 80%
Storage Temperature (°C) -20 to 60
Storage Humidity 10% to 90%
Certification
  ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC 60601-1; EN 60601-1-2, EN55032, EN55035, FCC Part 15-B, ICSE-003

Additional information

Manufacturer

Optik View

Model

SC55844
