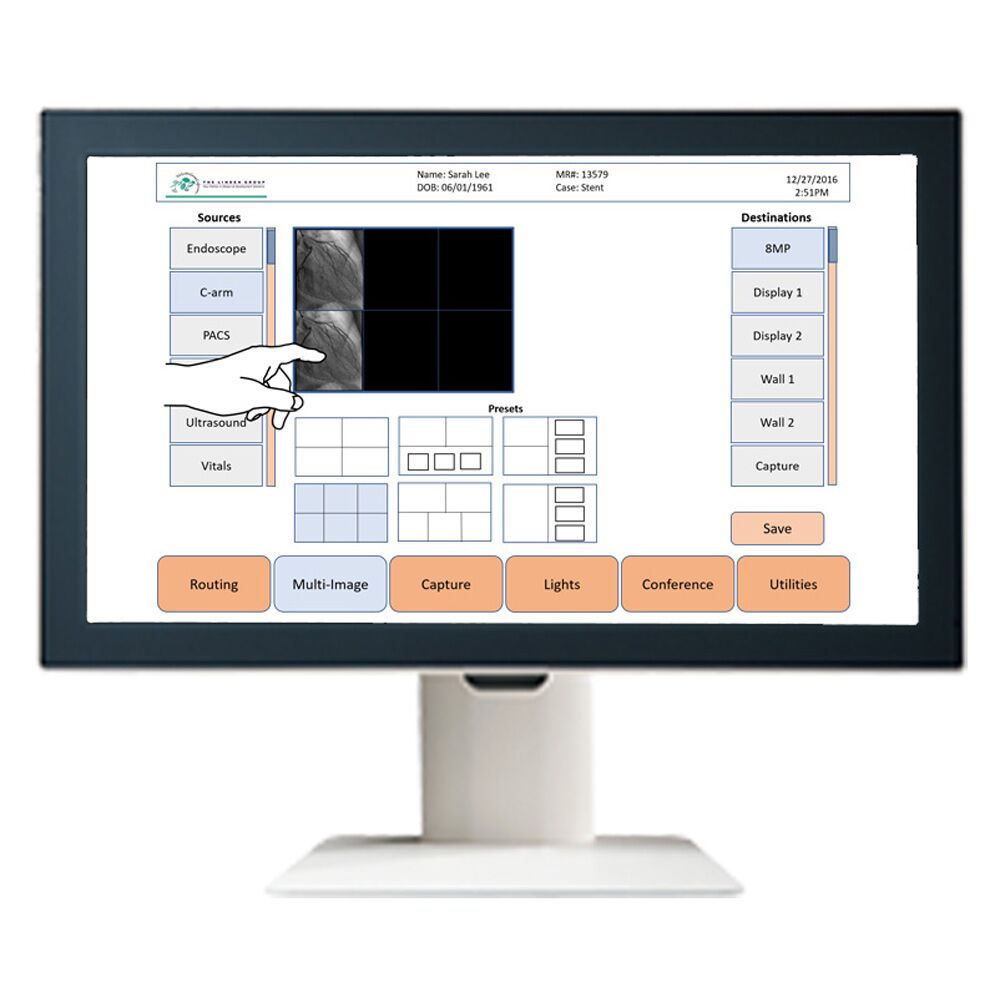

Optik View ST2121X-TP 21.5-inch Surgical Touch Display

  • UL/cUL(60601 3rd),CB(60601 3rd),CE,FCC,CCC
  • Flexible UI control using USB or RS-232
  • IPX rated to improve dissinfection
  • Impact Shield protects against unintended contact
  • Flat Front Surface improves dissinfection
  • 5V power to simplify installation
  • Optional cable cover to improve dissinfection
  • Model: ST2121XTP

Description

Optik View ST2121X-TP 21.5-inch Surgical Touch Display

The Optik View ST2121x-TP is a 21.5″ P-CAP Display designed to fit the needs of today’s surgical suite and interventional lab evnironments. Featuring a Full HD (1920×1080) and True Flat viewing area, the ST2121x-TP delivers excellent UI visualization. This mid-size display offers an excellent balance between viewable surface and desk top footprint.

Model: ST2121x-TP
Optik View Support

Hiliex proudly presents Optik View medical displays customizable visualization solutions for the most demanding medical environments. Optik View Surgical Displays high definition and 4K endo surgical displays to provide your Customer’s with industry’s highest quality surgical video. Optik View® displays deliver bright, crisp, color accurate visualization designed to enhanced edge delineation, improve depth perception, and increase decision making confidence.

Optik View Diagnostic Displays for Radiology meet the standards of Picture Archiving and Communication Systems (PACS) visualization. Certified to industry standards, this full range of megapixel monochrome and color displays supports interpretation of high quality radiologic images including conventional films, CT, MRI, PET, Mammography, and other medical images stored on a PACS server.

The award winning Linden Group Corp launch of Optik View, a complete line of LCD display monitors designed specifically for the medical industry. TLGC has been serving the computing needs of the leading medical companies; no one is better positioned to understand the demanding requirements of the medical environment. Every monitor they manufacture has earned worldwide medical safety certification, UL, CE, FDA 510K, and performs with a precision and reliability unsurpassed in the industry.

Additionally, our dedicated service and repair center ensures expert maintenance and repairs for all advanced medical imaging monitors, guaranteeing your equipment remains in peak condition for optimal patient care.

Specification

Type VA
Resolution 1920 (H) x 1080 (V)
Active Screen Size (inch) 21.5
Display Area (mm) 476.64 (H) x 268.11 (V)
Pixel Pitch (mm) 0.24825 (H) x 0.24825 (V)
Viewing Angle (degree) 178 (H) / 178 (V)
Response time (time) 18 on/off (Typ.)
Brightness (cd/m²) 250 (Typ.)
Contrast Ratio 3000:1 (Typ.)
Color Gamut NTSC 72%
Display Colors (bits) 16.7m

Additional information

Manufacturer

Optik View

Model

ST2121x-TP
