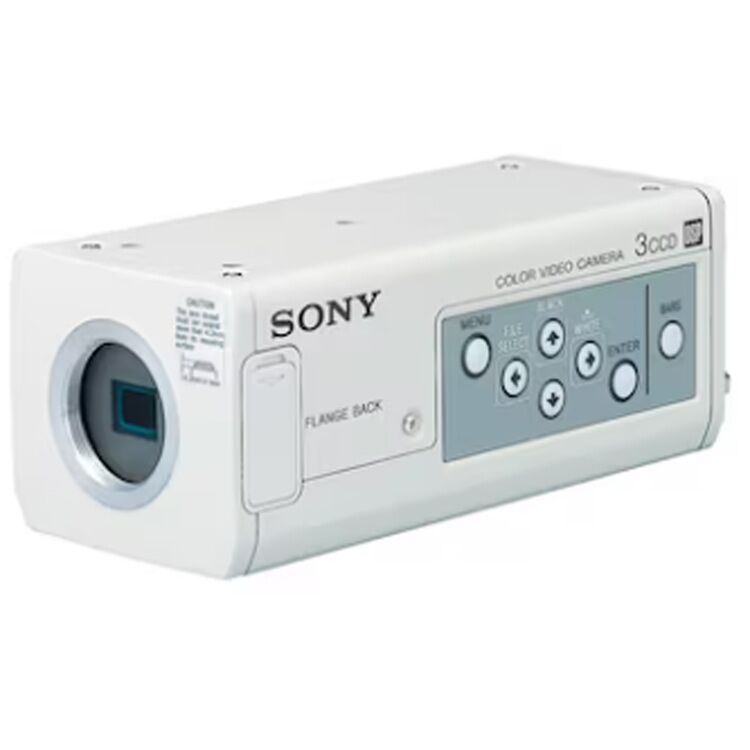

Sony DXC-390 3CCD Color NTSC Camera

  • High Resolution – 800 TVL
  • Color Reproduction – 3CCD with new 10 Bit DSP Technology
  • Compact Size – 56x50x128mm
  • Lightweight – 370g or approximately 13 oz.
  • C Mount
  • Model: DXC390
SKU: SONY-DXC390 Categories: , , , , Brand:

Description

Sony DXC-390 3CCD Color NTSC Camera

Experience professional-grade video quality with the Sony DXC-390 3CCD color NTSC camera. This powerhouse features advanced 3CCD technology, delivering vibrant colors and stunning clarity that will elevate your video projects. Whether you’re shooting a documentary, event, or corporate video, this camera ensures every detail is captured with precision.

When high resolution and maximum camera sensitivity is a must, the DXC-390 1/3″ type DSP 3-CCD color video camera delivers the goods. Ideal for point of view, machine vision and industrial microscopy applications, the Sony DXC-390 incorporates Exwave HAD™ technology – the Sony technology that greatly improves camera sensitivity (F8 at 2000 lx) while reducing smear compared to previous CCD technologies. Using a C mount lens and providing resolution of 800 TVL and a high S/N ration of 62 dB, this camera is also well-suited for portrait proofing, amusement rides, sports shooting, board rooms, and scientific image capture applications.

Designed for versatility, the DXC-390 is perfect for both seasoned videographers and beginners alike. Its user-friendly interface and robust build make it easy to handle in any shooting environment. Plus, with options for sales and repairs, you can trust that your investment is protected and supported by experts who understand the ins and outs of this exceptional camera.

Don’t miss out on the opportunity to enhance your video production capabilities. The Sony DXC-390 is not just a camera; it’s a gateway to creating stunning visual stories. Grab yours today and take the first step towards capturing your vision like never before!

Replaced by: MCC-500MD
Model: DXC-390
Our service and repair center offers expert repairs!
Sony Support

Specifications

Pick-up device 1/3” type IT (Interline Transfer) CCD
Effective picture elements NTSC: 768(H) x 494(V)
PAL: 752(H) x 582(V)
Sensing area 6.00(H) x 4.96(V) mm
Scanning system NTSC: 2:1 interlaced, 525 lines
PAL: 2:1 interlaced, 625 lines
Horizontal frequency NTSC: 15.734 kHz
PAL: 15.625 kHz
Vertical frequency NTSC: 60 Hz
PAL: 50 Hz
Sync system Internal or External with VBS, HD/VD
Phase control H/ SC phase control
Horizontal resolution 800TV lines
Sensitivity F8.0 at 2000 lx
Minimum illumination 4 lx (F2, GAIN: HYPER)
S/N ratio NTSC: 62 dB
PAL: 61 dB
Gain STEP/ AGC/ HYPER selectable
Electronic shutter OFF/ STEP/ VARIABLE/
CCD IRIS selectable
Lens Remote (Auto or Manual)/ Video selectable
AE area Multi/ Large/ Medium/ Spot/ Slit/
Manual selectable
AE level Variable
AE speed Fast/ Mid/ Slow selectable
AE detect Average/ Peak selectable
Contrast Effect Manual/ DynaLatitude/ DCC+ selectable
Knee Point High/ Normal/ Low selectable
(Contrast Eect: Manual)
Black stretch Variable (Contrast Effect: Manual)
Gamma ON/ OFF Variable
Pedestal Master and R/B Manual adjustable
Black balance ABB
White balance AWB/ ATW NORMAL/ ATW WIDE/
MANUAL/ 3200K/ 5600K selectable
AWB or ATW R/B Paint, MANUAL R/B Gain
ATW area NORMAL/ MANU selectable
ATW speed FAST/ NORMAL/ SLOW selectable
Detail level ON/ OFF (Variable at ON)
Detail Frequency HIGH/ MID/ LOW selectable
Linear matrix ON/ OFF
Linear matrix MODE STANDARD/ R Enhance/ G Enhance/
B Enhance/ Manual selectable
Partial Enhance ALL/ IN/ OUT selectable
CCD integration mode FIELD/ FRAME selectable
Shading Compensation OFF / ON (Manual control)
Trigger Polarity Positive edge trigger / Negative edge
trigger selectable
Baud rate 19200/ 9600/ 4800/ 2400/
1200 selectable
Sync RGB/ G/ OFF selectable
Strobe ON/ OFF
User File A/ B switchable (Two pattern memories)
Scene File STANDARD/ MICROSCOPE/ FULL AUTO/
STROBE/FILE A or B
Output signal VBS/RGB/SYNC/Y/C
Operating temperature -5˚C to 45˚C
Storage temperature -20˚C to 60˚C
Power requirements DC 10.5 V to 15.0 V
Power consumption Approx. 7.6 W
Dimensions 56(W) x 50(H) x 128(D) mm
(2 1/4 x 2 x 5 1/8 inches)
(Excluding projecting parts)
Mass Approx. 370 g (13 oz)
Connectors Lens (6 pin)
RGB/SYNC (9 pin D-sub)
DC IN/VBS (12 pin)
VIDEO OUT (BNC)
TRIGGER IN (BNC)
REMOTE (8 pin mini DIN)
Supplied accessories
  Lens cap (1)
Tripod adapter (1)
Operation manual (1)
Panel sheet for RM-C950
Optional accessories
Lens VCL-610WEA/614WEA
VCL-08WM/16WM/25WM
Remote control unit RM-C950
Camera adapter CMA-D2/ CE, CMA-D3/ CE
Microscope adapter MVA-15
Microscope coupler MVAC-33-N/33-O/33-SM
Camera cable CCDC-5/10/25/50A/100A
CCMC-12P02/05/10/25
CCXC-9DBS
CCMC-9DS
CCMC-3MZ
CCZ-A2/A5/A10/A25/A50/A100

Additional information

Manufacturer

SONY

Model

DXC390
