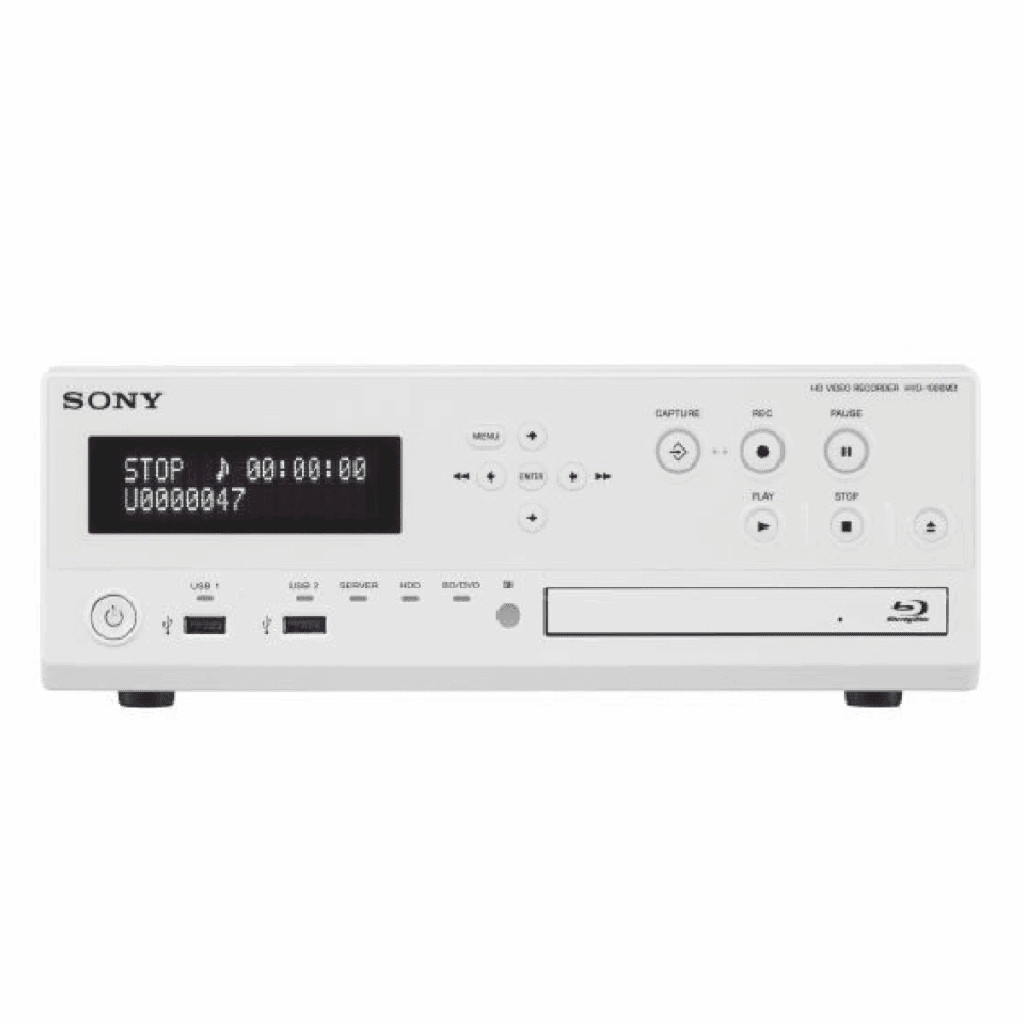

Sony HVO-1000MD Medical HD Recorder

  • High-quality, HD recording
  • Simultaneous recording to two external media
  • Real time streaming
  • Universal connectivity and compatibility
  • Enterprise recording and retrieval solution with optional OPSIGATE system
  • Broad support for portable external media
  • High capacity recording
  • Supports Sony medical printers
SKU: SONY-HVO1000MD Categories: , Brand:

Description

Sony HVO-1000MD HD Medical Blu-ray HD Recorder – Sales, Repair Service & Exchange

Sony HVO-1000MD Blu-ray recorder offers the best of both worlds: sophistication of features with simplicity of use – an ideal combination for today’s surgical recording workflow. Gone are the days of recording on VTRs and DVRs; the Sony HVO-1000MD recorder is the next generation HD recorder offering the flexibility to simultaneously record to its internal hard drive as well as to a Blu-ray disc and a USB thumb drive or portable hard drive – an extraordinary time saving feature that allows one to finalize a Blu-ray disc and walk away with a copy of the surgical footage in less than one minute, virtually eliminating the downtime between surgical cases.

Sony HVO-1000MD HD Medical Video Recorder designed to record pristine video and images

The Sony HVO-1000MD easily connects to the hospital network for archiving to a central server and offers live streaming of video recordings to medical staff or students outside the operating theater. Its compact size makes it an easy fit for the surgical cart, and its intuitive front panel design makes it simple to operate.

Boasting high-quality HD recording at 1080-line video using MPEG-4, the new standard for HD video compression, the Sony HVO-1000MD recorder delivers extremely clear and detailed images. A robust, 320GB internal hard drive stores more than 30 hours of HD video, and the external Blu-ray disc can store more than nine hours of HD video per standard disc. Best yet, it captures still as well as video images, a must-have feature for any O.R.

Support

Model: HVO-1000MD (HVO1000MD) replaced by HVO-3300MT.

Contact Hiliex for Sony HVO-1000MD Repair Service

Brochure | User’s Guide | Sony Support

Hiliex proudly presents Sony Medical Displays that range from full HD up to 4K resolution in 3D and 2D offering exceptional clarity, rich color and enhanced image structure. These Sony Surgical Displays help surgeons and OR staff see more details of complex surgical procedures.

Sony medical video cameras enable surgeons and clinical staff to capture color images during microscopy and open* surgical procedures. Surgeons in the OR can benefit from HD image quality in a compact camera head that integrates efficiently with modern surgical microscopes and slit lamp systems. Sony 3D medical cameras capture stereoscopic images in Full HD to provide improved depth perception and spatial orientation compared with 2D imaging.

Sony medical recorders and archiving solutions enable you to record, store and access surgical footage on the hospital network and beyond.

Sony medical printers delivers high-quality, lasting prints in applications, including ultrasound, radiology, endoscopy, ophthalmology and microsurgery.  Sony print paper thermal media is designed to be a perfect match for your Sony medical printer. You’ll appreciate the difference with excellent image quality, contrast and smooth tonal gradations, while maximizing your Sony printer’s working life.

Sony medical delivers innovation across the imaging workflow, from leading 4K, 4K3D and 3D technologies – to the very latest in IP conversion to create smart digital operating rooms. We offer a wide range of medical devices to capture and view medical images, from cameras to 4K surgical monitors. For documentation, we provide recorders, printers and print media. This equipment is intended for use by qualified medical professionals only. Registration status as a medical device may vary, depending on country.

Ensure the optimal performance of your Sony HVO-1000MD medical recorder with our comprehensive service and repair solutions. Our specialized technicians in our service and repair center are equipped to handle a wide range of peripherals, including Medical LCD’s, printers, cameras and recorders. Trust us to service & repair your imaging periphials to peak condition. To minimizing downtime ask about our exchange program.

Specifications

General
Power requirements 100V to 240 V AC, 50 Hz/60Hz
Input current 1.9 A to 0.8 A
Operating temperature 41ºF to 104ºF (5ºC to 40ºC)
Operating humidity 20% to 80%
[Maximum web-bulb temperature: 86ºF (30ºC)]
(no condensation)
Operating pressure 700 hpa to 1,040 hpa
Temperature range for storage -4ºF to + 140ºF (-20ºC to +60ºC)
Humidity range for storage 20% to 90%
[Maximum web-bulb temperature: 86ºF (30ºC)]
(no condensation)
Storage and transport pressure 700 hpa to 1,040 hpa
Mass 18.5 lb. (8.4 kg)
Dimensions (w x d x h) 12 1/8 x 16 1/4 x 4 5/8 in (305 x 410 x 115.5 mm)
(including protrusions)
Recording devices
Internal hard disk drive 320GB
Blu-ray Disc/DVD drive Compatible media: BD-RE2.0, BD-R1.0, DVD-R
Input connections
S-VIDEO IN Mini DIN 4-pin type (1)
Y: 1.0 Vp-p (75 Ω) Sync negative
C (BURST): 0.286 Vp-p (75 Ω) (NTSC)
C (BURST): 0.3 Vp-p (75 Ω) (PAL)
VIDEO IN BNC (1), Composite, 1.0 Vp-p (75 Ω), Sync negative
DVI-D IN Receptacle (1), TMDS 1 channel (single link)
RGB IN D-sub 15-pin (1), 0.7 Vp-p/with sync on green G: 1.0
Vp-p 75 Ω
HD-SDI IN BNC (1)
SD: SMPTE259M compliant
HD: SMPTE292M compliant 75 Ω
AUDIO LINE IN Stereo mini jack (1)
1.4 Vrms (full bit), input impedance
10 kΩ or higher, unbalanced
Output connections
S-VIDEO OUT Mini DIN 4-pin type (1)
Y: 1.0 Vp-p (75 Ω) Sync negative
C (BURST): 0.286 Vp-p (75 Ω) (NTSC)
C (BURST): 0.3 Vp-p (75 Ω) (PAL)
VIDEO OUT BNC (1), Composite, 1.0 Vp-p (75 Ω), Sync negative
DVI-D OUT Receptacle (1), TMDS 1 channel (single link)
HD-SDI OUT BNC (1), SD/HD 0.8 Vp-p 75 Ω
AUDIO OUT Stereo mini jack (1), 1.4 Vrms (full bit), load impedance 10 kΩ, unbalanced
Other interfaces
USB USB 2.0 (4)
Network RJ-45 (1), 1000Base-T/100Base-TX
Remote RS-232C D-sub 9-pin (2)
Remote contact switch Stereo mini jack (4)
Remote monitor RJ-45 type (1)
Equipotential connector
Supplied accessories
  Before Using this Unit (1), CD-ROM (Instructions For Use, PROTOCOL MANUAL) (1),
Infrared remote control unit (1)

Additional information

Model

HVO-1000MD (HVO1000MD)

Condition

Refurbished
