Sony LMD-1530MD 15" WXGA Surgical Display

  • Home
  • Sony LMD-1530MD 15" WXGA Surgical Display
Sony LMD1530MD

Sony LMD-1530MD 15" WXGA Surgical Display

$1,225.00

  • 15″ widescreen HD Medical Grade LCD Monitor.
  • WXGA  1280 x 768 pixel resolution.
  • Five gamma settings
  • Colour temperature settings
  • On-screen display (OSD) in seven languages
  • Built-in tally lamp to identify when images are captured or recorded
  • Key inhibit function
  • Parallel remote control interface
  • Input versatility; wide variety of SD & HD inputs.
  • Audio input with built in speaker.
  • Slim, lightweight design.
  • Built-in monitor stand
  • VESA 100 mounting (100 x 100 mm spacing)
  • 1 Year Manufacturer Warranty

Contact us directly for Volume Order Pricing and Shipping Rates. We offer special pricing and discounts on custom requirements and requests from Healthcare & Health System, Government, Purchasing Group facilities and OEM’s (Original Equipment Manufacturers).

SKU: SONY-LMD1530MD Categories: , , , , , , Tags: , , , , , , , , , , , , , , , Brand: ,

Description

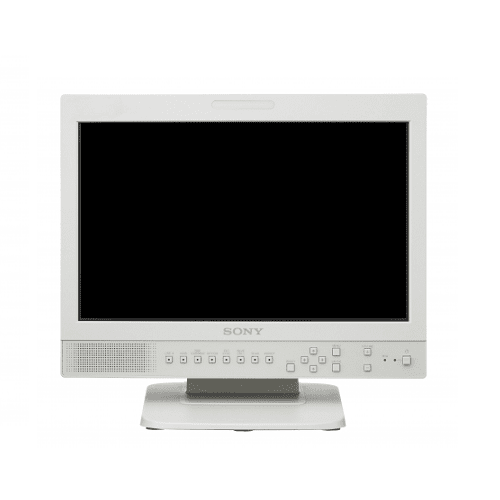

Sony LMD-1530MD 15″ Surgical Display Monitor

The Sony LMD-1530MD surgical monitor is a widescreen HD medical-certified 15-inch monitor, with a WXGA panel providing 1280 x 768 pixel resolution. The outstanding image quality and lightweight compact design allows for easy integration into a variety of applications, both inside and outside the operating room. Incorporating an advanced LCD panel with wide viewing angle, it reproduces bright and high-contrast images even in dark areas of the picture. The Sony LMD-1530MD surgical monitor is equipped with a 10-bit signal processor to produce lifelike images. Smooth gradation and accurate color representation ensures it is true to the original signals. The Sony LMD1530MD surgical monitor accepts a wide variety of SD signal inputs, plus HD input via either HDMI or an analogue component. Its versatile inputs, convenient features, and space-saving design make it an ideal, cost-effective choice for today’s demanding medical environments.

About Sony Medical

Sony Electronics Inc. is a leading provider of innovative medical products designed for use in a wide range of applications as a stand-alone hardware solution, or for incorporation into integrated medical systems. Medical imaging offerings include dry film imagers, printers, cameras, recorders and medical grade monitors for a full range of modalities.

Additional information

Weight 45 lbs
Dimensions 19 × 15 × 18 in
LCD panel

a-Si TFT Active Matrix
Picture size

334 × 200, 390 mm (W/H, Diagonal) (13 1/4 × 7 7/8, 15 3/8 inches)
Resolution

1280 × 768 dots (WXGA)
Viewing angle

88°/ 88°/ 88°/ 88° (typical)
Aspect

15:9
Display colour

16,770,000
LINE A input connectors

Y/C input: Mini DIN 4-pin (X1) VIDEO input: BNC (X1), 1 Vp-p ±3 dB, negative synchronization AUDIO input: Phono jack (X1), –5 dBu 47 kilo ohms or higher
RGB/COMPONENT input connectors

BNC (X3) RGB input: 0.7 Vp-p ±3 dB, (Sync On Green, 0.3 Vp-p negative sync) Component input: 0.7 Vp-p ±3 dB, (75% chrominance standard color bar signal)
AUDIO input

Phono jack (X1), –5 dBu 47 kilo ohms or higher
OPTION IN connector

Phono jack (X1), –5 dBu 47 kilo ohms or higher
External synchronized input connector

BNC (X1), 0.3 to 4 Vp-p negative polarity binary
HDMI IN connector

HDMI (X1)
PARALLEL REMOTE input connector

Parallel remote Modular connector 8-pin (X1)
LINE A output connectors

Y/C output: Mini DIN 4-pin (X1), Loop-through, with 75 ohms automatic terminal function VIDEO output: BNC (X1), Loop-through, with 75 ohms automatic terminal function AUDIO output: Phono jack (X1), Loop-through
RGB/COMPONENT output connectors

RGB/Component output: BNC (X3), Loop-through, with 75 ohms automatic terminal function AUDIO output: Phono jack (1), Loop-through
External synchronized output

Connector: BNC (1), Loop-through, with 75 ohms automatic terminal function Built-in speaker output: 0.5 W (mono)
Power

AC 100 V to 240 V, 50/60 Hz
Dimensions (W/H/D)

372 × 336 × 264 mm (14 3/4 × 13 1/4 × 10 1/2 inches) (not including the projection parts)
Mass

6.2 kg (13 lb 11 oz)
Supplied Accessories

AC power cord 1 AC plug holder 2 Instruction for Use 1 CD-ROM 1 Using the CD-ROM Manual 1 Quick reference 1 When you First Use the Monitor 1 Sales Companied Guide 1 Warranty book
