| Picture Performance |
| Panel | a-Si TFT Active Matrix LCD |
| Picture size (diagonal) | 481.84 mm (19.0 inches) |
| Effective Picture size (H x V) | Approx. 376 × 301 mm (14 7/8 × 11 7/8 inches) |
| Resolution (H x V) | 1280 x 1024 pixels (SXGA) |
| Aspect | 5:4 |
| Pixel efficiency | 99.99% |
| Color | Approx.16.7 million colors |
| Viewing angle (panel specification) | 89°/89°/89°/89° (typical) (up/down/left/right contrast > 10:1) |
| Input |
| Composite input (NTSC/PAL) connector | BNC type (×1), 1 Vp-p ± 3 dB sync negative |
| Y/C input connector | 4-pin mini-DIN (×1)
Y: 1 Vp-p ± 3 dB sync negative
C: 0.286 Vp-p ± 3 dB (NTSC burst signal level)
0.3 Vp-p ± 3 dB (PAL burst signal level) |
| RGB/component input connectors | BNC type (×3)
RGB: 0.7 Vp-p ± 3 dB (Sync On Green, 0.3 Vp-p sync negative)
Component: 0.7 Vp-p ± 3 dB (75% chrominance standard color bar signal) |
| External synchronized input connector | BNC type (×1)
0.3 Vp-p to 4.0 Vp-p ± bipolarity ternary or negative polarity binary |
| HD15 input connector | D-sub 15-pin (x1),
R/G/B: 0.7 Vp-p sync positive (Sync On Green, 0.3 Vp-p sync negative)
Sync: TTL level (polarity free, H/V separate sync)
Plug & Play function: corresponds to DDC2B |
| DVI input connector | DVI-D (x1) TMDS single link |
| Parallel remote | Modular connector 8-pin (×1) |
| Serial remote (LAN) | D-sub 9-pin (RS-232C) (×1)
RJ-45 modular connector (ETHERNET) (×1) |
| Optional input port | 2 ports
Signal format:
H: 15 kHz to 45 kHz
V: 48 Hz to 60 Hz |
| DC IN connector | DC5V/24V (output impedance 0.05 ohms or less) |
| Output |
| Composite output connector | BNC type (×1)
Loop-through, with 75 ohms automatic terminal function |
| Y/C output connector | 4-pin mini-DIN (×1)
Loop-through, with 75 ohms automatic terminal function |
| RGB/component output connectors | BNC type (×3)
Loop-through, with 75 ohms automatic terminal function |
| External synchronized output connector | BNC type (×3)
Loop-through, with 75 ohms automatic terminal function |
| General |

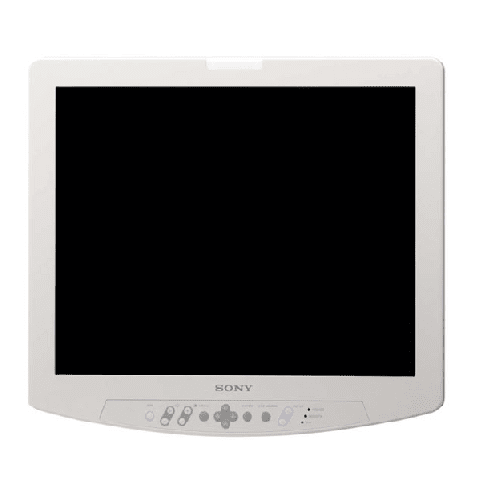

| Power | LCD monitor (LMD-1951MD)
AC 100-240 V, 50/60 Hz, 0.92 A-0.40 A
DC IN: 24 V 3.5 A 5 V 0.030 A (Supplied from AC-110MD adaptor)
AC Adaptor (Sony, AC-110MD) (optional)
AC IN: 100 V-240 V, 50/60 Hz, 1.53 A-0.58 A
DC OUT: 24 V 5.0 A 5 V 0.060 A |
| Power consumption | Maximum: approx. 85 W (when two BKM-229X are installed) |
| Temperature | 0 °C to 35 °C (32 °F to 95 °F) |
| Recommended temperature | 20 °C to 30 °C (68 °F to 86 °F) |
| Humidity | 30% to 85% (no condensation) |
| Pressure | 700 hPa to 1060 hPa |
| Storage and transport temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Storage and transport humidity | 0% to 90% (no condensation allowed) |
| Storage and transport pressure | 700 hPa to 1060 hPa |
| Dimensions (W x H x D) | 455.8 x 368.3 x 101.7 mm (18 x 14 5/8 x 4 1/8 inches) (without a stand)
455.8 x 435.7 x 302 mm (18 x 17 1/4 x 12 inches) (with SU-560 optional stand) |
| Mass | 6.7 kg (14 lb 12 oz) (when the optional stand and the input adaptor are not installed)
7.1 kg (15 lb 10 oz) (when the optional stand is not installed and two BKM-229X are installed) |
| Accessories supplied | AC power cord (1), AC plug holder (2), Instructions for Use (1), CD-ROM (1), Using the CD-ROM Manual (1), Quick Reference(1), When you First Use the Monitor (1), Sales Companies Guide (1) |
| Optional Accessories |
| BKM-220D | SDI 4:2:2 Input Adaptor |
| BKM-243HS | HD/D1-SDI input adaptor |
| BKM-227W | NTSC/PAL input adaptor |
| BKM-229X | Analog component input adaptor |
| BKM-250TG | 3G/HD/SD-SDI input adaptor |
| BKM-256DD | DVI-D input adaptor |
| AC-110MD | AC adaptor |
| SU-560 | Monitor stand |
