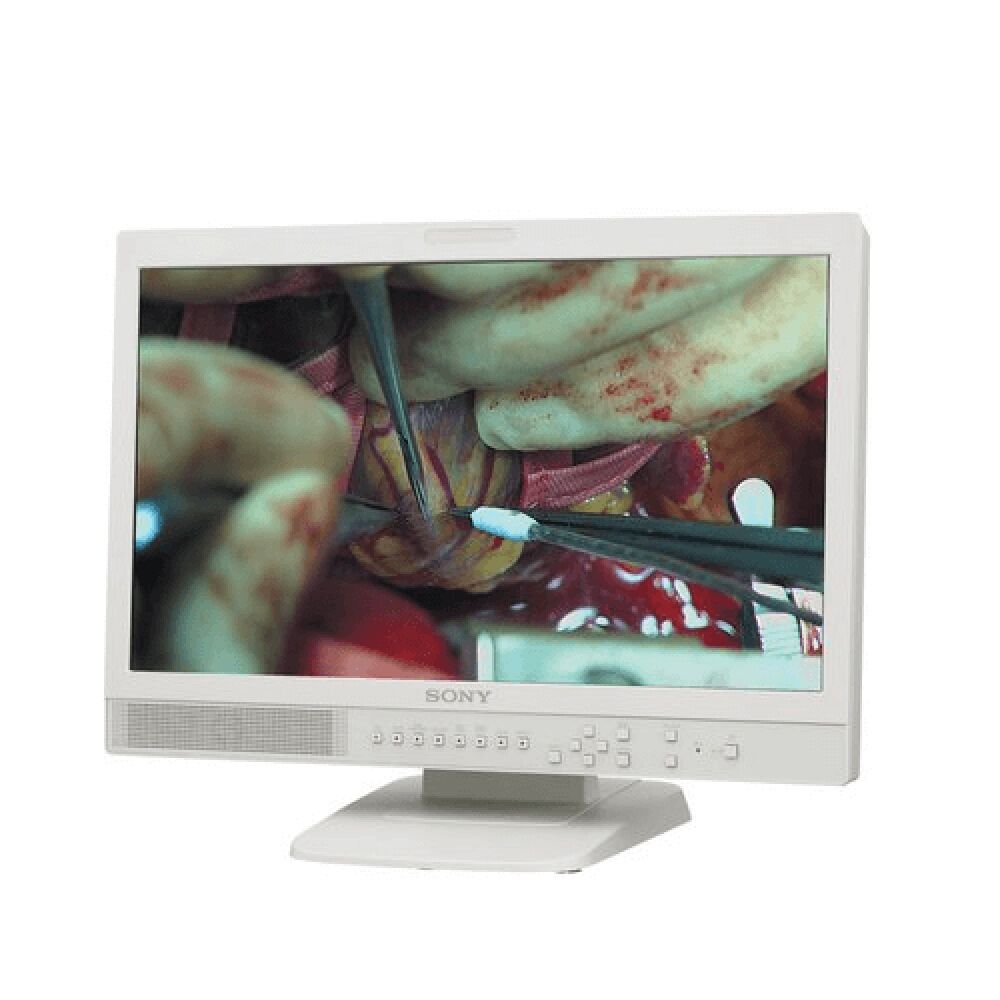

Sony LMD-2110MD 21.5-inch FHD Surgical Display

  • Medical Grade 21″ Surgical LCD Monitor
  • Full HD (1920 x 1080) high-resolution LCD panel
  • Full range of analogue inputs
  • HDMI input
  • Optional HD-SDI Interface BKM341HS
  • 100mm Vesa mounting
  • 3 Year Manufacturer Warranty

Contact us directly for Volume Order Pricing and Shipping Rates. We offer special pricing and discounts on custom requirements and requests from Healthcare & Health System, Government, Purchasing Group facilities and OEM’s (Original Equipment Manufacturers).



Description

Sony LMD-2110MD 21.5-inch Surgical Monitor – Sales, Repair Service & Exchange

The Sony LMD-2110MD surgical display monitor features a 21.5-inch LCD panel of full HD (1920×1080) resolution and 10-bit signal processing. Complying with medical safety standards and EMC standards, the monitor provides a crisp, sharp high definition image.

The Sony LMD-2110MD surgical display monitor is also equipped with an analog video input and output terminals as standard. It also features an HDMI input, which accepts HD signals up to 1080/60P. In addition, the Sony LMD-2110MD surgical display monitor can input HD/SD-SDI signals using also an optional input adaptor. This well designed display is one of the leading 21″ medical displays on the market. Its image quality and slim design is on par with today’s technologies.

Sony LMD-2110MD 21.5-inch Full HD resolution monitor complies with medical safety standards and EMC standards

Cost-effective feature-rich performance
The Sony LMD-2110MD offers professional functionality in an economic package. Optimized for moving picture reproduction, it delivers accurate color rendition and grayscale – thanks to its CRT-like gamma curve and 10-bit signal processing.

Full HD-resolution LCD panel
The LMD-2110MD delivers outstandingly crisp, high brightness and high contrast widescreen HD images with a fast transient response.

Wide range of standard input interfaces
The LMD-2110MD is equipped with a full range of analog SD inputs, including composite NTSC/PAL, Y/C (S-Video), 525i/625i component, and RGB. Also included is an HDMI input, which can accept HD digital signals up to 1080/50p and 60p. DVI signals can be input via the HDMI input connector using a conversion cable.

Optional HD-SDI interface
The LMD-2110MD supports HD-SDI input with an optional BKM-341HS HD/SD-SDI input adaptor. This input versatility allows the LMD-2110MD monitor to flexibly connect to HD-SDI digital environments. The monitor can also handle SD-SDI input using an optional BKM-320D SD-SDI input adaptor.

Compliance with medical standards
This product is distributed to the U.S. and EU as a medical device and satisfies product safety standards (e.g. IEC 60601-1). For more details, please contact your nearest Sony sales office or an authorized dealer.

Remote control
The monitor allows external remote control via a programmable parallel remote interface.

VESA mounting
The monitor can stand on a desktop or be mounted on the wall or ceiling with a 100 x 100mm VESA arm mount.

In conclusion the Sony LMD-2110MD surgical display monitor also backed with a 3 year warranty to give you a piece of mind in terms of quality and functionality of the product.

Give us a call to discuss your requirements and so we can also offer you the best solution to your needs.

Support

Model: LMD-2110MD
Sony Medical Support

Hiliex proudly presents Sony Medical Displays that range from full HD up to 4K resolution in 3D and 2D offering exceptional clarity, rich color and enhanced image structure. These Sony Surgical Displays help surgeons and OR staff see more details of complex surgical procedures.

Sony medical video cameras enable surgeons and clinical staff to capture color images during microscopy and open* surgical procedures. Surgeons in the OR can benefit from HD image quality in a compact camera head that integrates efficiently with modern surgical microscopes and slit lamp systems. Sony 3D medical cameras capture stereoscopic images in Full HD to provide improved depth perception and spatial orientation compared with 2D imaging.

Sony medical recorders and archiving solutions enable you to record, store and access surgical footage on the hospital network and beyond.

Sony medical printers delivers high-quality, lasting prints in applications, including ultrasound, radiology, endoscopy, ophthalmology and microsurgery.  Sony print paper thermal media is designed to be a perfect match for your Sony medical printer. You’ll appreciate the difference with excellent image quality, contrast and smooth tonal gradations, while maximizing your Sony printer’s working life.

Sony medical delivers innovation across the imaging workflow, from leading 4K, 4K3D and 3D technologies – to the very latest in IP conversion to create smart digital operating rooms. We offer a wide range of medical devices to capture and view medical images, from cameras to 4K surgical monitors. For documentation, we provide recorders, printers and print media. This equipment is intended for use by qualified medical professionals only. Registration status as a medical device may vary, depending on country.

Additionally, our dedicated service and repair center ensures expert maintenance and repairs for all advanced medical imaging monitors, guaranteeing your equipment remains in peak condition for optimal patient care.

Ensure the optimal performance of your Sony LMD-2110MD surgical display monitor with our comprehensive service and repair solutions. Our specialized technicians in our service and repair center are equipped to handle a wide range of peripherals, including Medical LCD’s, printers, cameras and recorders. Trust us to service & repair your imaging periphials to peak condition. To minimizing downtime ask about our exchange program.

Specifications

Picture Performance
Type a-Si TFT Active Matrix LCD
Resolution 1920 x 1080 pixels (Full HD)
Effective picture size (H x W) (Diagonal) 477 x 268 mm (18 7/8 x 10 5/8 inches), 547 mm (21 5/8 inches)
Aspect 16:9
Colors Approx. 16.7 million colors
Viewing angle (LCD panel specification) 170°/160° (typical) (horizontal/vertical contrast >10:1)
Input
Composite BNC (x1), 1.0 Vp-p ±3 dB sync negative
Y/C Mini DIN 4-pin (x1)
Y: 1.0 Vp-p ±3 dB sync negative,
C: 0.286 Vp-p ±3 dB (NTSC burst signal level),
0.3 Vp-p ±3 dB (PAL burst signal level)
RGB, Component BNC (x3)
RGB: 0.7 Vp-p ±3 dB (Sync On Green, 0.3 Vp-p sync negative)
Component: 0.7 Vp-p ±3 dB
(75% chrominance standard color bar signal)
HDMI HDMI (x1)
Audio Phono jack (x2), –5 dBu 47 kilohms or higher
OPTIONAL AUDIO IN: Phono jack (x1), –5 dBu 47 kilohms or higher
External sync BNC (x1)
0.3 Vp-p to 4.0 Vp-p ±bipolarity ternary or negative polarity binary
Option in connector D-sub 9-pin (x1), female
Parallel remote Modular connector 8-pin (x1) (pin-assignable)
Output
Composite BNC (x1), loop-through, with 75 ohms automatic termination
Y/C Mini DIN 4-pin (x1), loop-through, with 75 ohms automatic termination
RGB, Component BNC (x3), loop-through, with 75 ohms automatic termination
External sync BNC (x1), loop-through, with 75 ohms automatic termination
Audio monitor out Phono jack (x2), loop-through
Speaker (built-in) 0.5 W (mono)
General
Power Requirements AC 100 V to 240 V, 50/60 Hz
Power Consumption Maximum: approx. 69W, 1.3A to 0.6A
Operating Temperature 0°C to 35°C (32°F to 95°F)
Recommended: 20°C to 30°C (68°F to 86°F)
Operating Humidity 30% to 85% (no condensation)
Storage/Transport Temperature -20°C to +60°C (-4°F to +140°F)
Storage and transport humidity 0% to 90%
Operating, storage and transport pressure 700 hPa to 1060 hPa
Dimensions (W x H x D) (with stand) 515 x 403 x 264 mm (20 3/8 x 15 7/8 x 10 1/2 inches)
Dimensions (W x H x D) (without stand) 515 x 355 x 86 mm (20 3/8 x 14 x 3 1/2 inches)
Mass 8.6 kg (18 lb 15 oz)
Mass (without stand) 6.9 kg (14 lb 19 oz)
Supplied Accessories AC power cord (1)
AC plug holder (2)
Before Using This Unit (1)
CD-ROM (including the Instructions for Use) (1)
Service Contact List (1)

Additional information

Manufacturer

SONY

Model

LMD-2110MD
