Sony LMD-2435MD

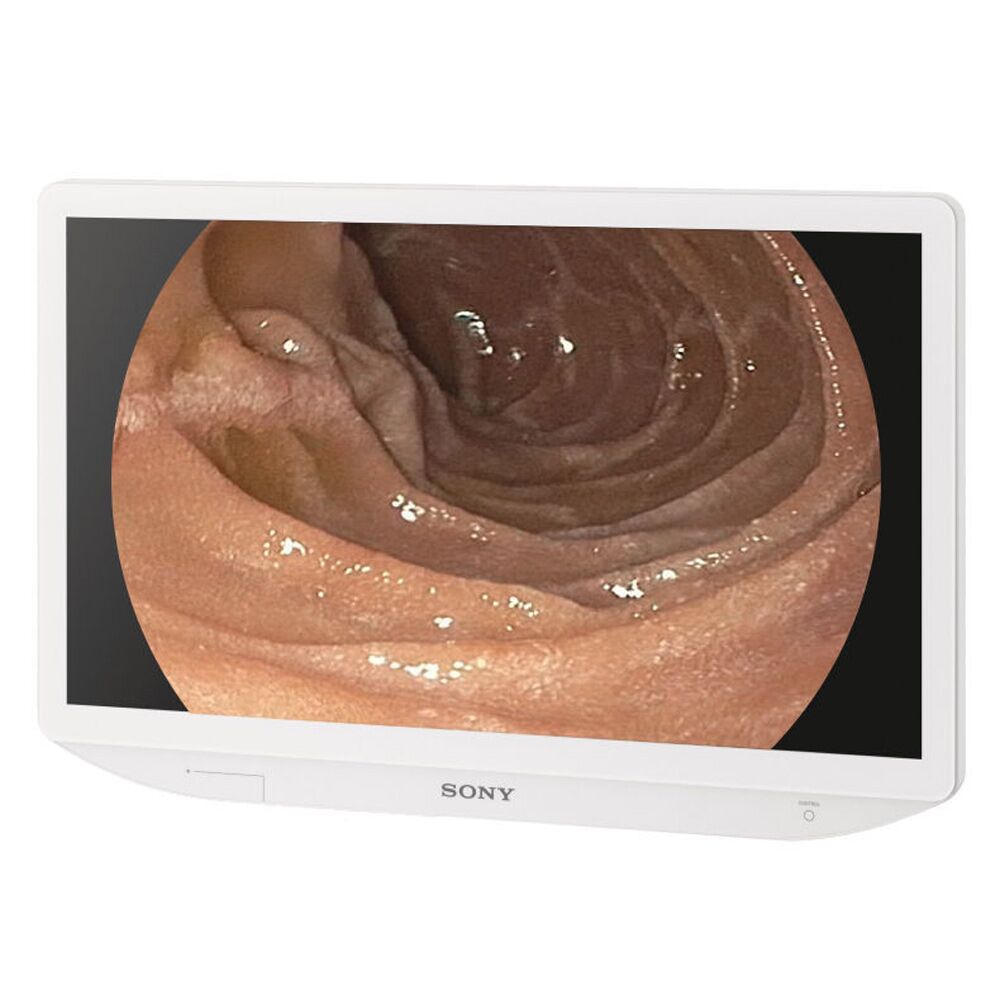

Sony LMD-2435MD 24″ FHD Surgical Display

  • LMD2435MD Clear, high resolution 24-inch Full HD images
  • Ergonomic easy-grip design
  • Smaller bezel, larger screen
  • Easy, intuitive operation
  • Easy clean edge-to-edge flush design
  • Wide range of digital and analog signal inputs
  • Choice of display formats
  • Resists moisture and water
  • Compliance with medical standards

Contact us directly for Volume Order Pricing and Shipping Rates. We offer special pricing and discounts on custom requirements and requests from Healthcare & Health System, Government, Purchasing Group facilities and OEM’s (Original Equipment Manufacturers).



SKU: SONY-LMD2435MD Categories: , , , , , , , Tags: , , , , Brand:

Description

Sony LMD-2435MD 24-inch Surgical Display Monitor

The Sony LMD-2435MD 24” full HD widescreen LCD monitor to its comprehensive medical-grade display line-up. Built upon the same platform as the popular LMD-2451MD. It offers a superb quality WUXGA (1920 X 1200) LCD panel. As well as 10-bit signal processing, Sony ChromaTRU color balance technology and new integration friendly features. It also has enhanced DVI interface and multi-modality support capabilities.

The LMD-2435MD is equipped with two unique built-in option slots. It is designed to accept a variety of option boards (including two new option boards) to easily expand, select, and change input/output signals for integration into virtually any system environment. Installation of the new BKM-256DD option board expands the monitor’s capability to accept up to two DVI inputs and one DVI loop-through output.

For optical fiber transmission, the 5V power required to power a DVI-D to fiber optic converter is supplied from both DVI-D input and output connectors of the BKM-256DD option board. This enables easy integration of optional DVI-D to fiber optic extension converters. Installation of the new BKM-250TG option board enables the Sony LMD-2435MD to accept a 3G input 1080/60p signal via a single SDI cable.

It Incorporates the Industry-leading Sony HD technology and versatile input/output signal capability. The Sony LMD-2435MD is the perfect addition to today’s HD operating rooms. This well designed display is one of the best 24″ medical displays on the market. Its image quality and slim design is on par with today’s technologies. The Sony LMD-2435MD is also backed with a 3 year warranty to give you a piece of mind in terms of quality and functionality of the product. Give us a call to discuss your requirements and so we can also offer you the best solution to your needs.

Our service and repair center offers expert repairs!
Model: LMD-2435MD
Sony Support

Specifications

Picture Performance
Panel a-Si TFT Active Matrix LCD
Picture Size (Diagonal) 604.7mm
Effective Picture Size (H x V) 527.0 x 296.5 mm
20 3/4×11 3/4 inches
Pixel pitch 0.2745 x 0.2745 mm
Resolution (H x V) 1920 x 1080 pixels (Full HD)
Aspect 16:09
Pixel Efficiency 0.9999
Backlight LED
Panel Technology LCD with IPS
Luminance (Panel Specification) 300 cd/m² (typical)
Contrast Ratio 1000 : 1
Colors Approx.16.7 million colors
Viewing Angle (Panel Specification) 89°/89°/89°/89° (typical) (up/down/left/right contrast > 10:1)
Gamma 1.8, 2.0, 2.2, 2.4, 2.6, DICOM
Input
Composite Input BNC (x1)
Y/C Input Mini-DIN 4-pin (x1)
Y: 1.0 Vp-p (75 Ω)
C: 0.286 Vp-p (75 Ω, NTSC burst)
0.3 Vp-p (75 Ω, PAL burst)
RGB, Component Input

RGB: Via HD-15 connector (D-sub 15-pin)*
0.7 Vp-p (75 Ω) (when Sync On Green, 0.3 Vp-p sync)
* Needs SMF-405 sold separately

Component: Via HD-15 connector (D-sub 15-pin)*
Y: 1.0 Vp-p (75 Ω) (including 0.3 Vp-p sync)
Pb: 0.7 Vp-p (75 Ω), Pr: 0.7 Vp-p (75 Ω)
* Needs SMF-405 sold separately
DVI-D Input DVI-D (x1)
TMDS single link
SDI Input BNC (x1)
HD/SD-SDI
HD15 Input D-sub 15-pin (x1)
RGB: 0.7 Vp-p (75 Ω)
H/V Sync: Total level (polarity free)
Plug & Play function : corresponds to DDC2B
External Sync Input Via HD-15 connector
(D-sub 15-pin) *
* Needs SMF-405 sold separately
0.3 Vp-p to 4.0 Vp-p (75 Ω)
Serial Remote (LAN) D-sub 9-pin (RS-232C) (x1), RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
DC Input XLR-type 3-pin (male) (x1), 24 V DC (output impedance 0.05 ohms or less)
Output
DVI-D Output DVI-D (x1)
DC 5 V Output (x1), up to 2.0 A
General
Power Requirements AC Input: 100-240V, 50-60Hz, 0.6A
DC Input: 24 V, 2.2A (Supplied from AC adapter)
AC adapter (Sony, AC-120MD): Optional
Power Consumption Approx. 57 W (max.)
Operating Temperature 0°C to 35°C
32°F to 95°F
Operating Humidity 30% to 85% (no condensation)
Storage/Transport Temperature -20°C to +60°C
-4°F to +140°F
Storage/Transport Humidity 20% to 90%
Operating/Storage/Transport Pressure 700 hPa to 1060 hPa
Dimensions (W x H x D) 572 x 376 x 78 mm / 22 5/8 x 14 7/8 x 3 1/8 inches
572 x 481 x 319 mm / 22 5/8 x 19 x 12 5/8 inches (with SU-600MD optional stand)
Mass Approx. 6.7 kg
Approx. 14 lb 12 oz
Mounting 100 x 100 mm VESA
Supplied Accessories AC plug holder (2)
Before Using This Unit (1)
CD-ROM (1)
Service Contact List (1)
Optional Accessories SU-600MD Monitor stand
SMF-405
AC-120MD AC Adaptor

Additional information

Manufacturer

SONY
Model

LMD2435MD
GTIN

04548736035195
