Sony LMD-2451MD

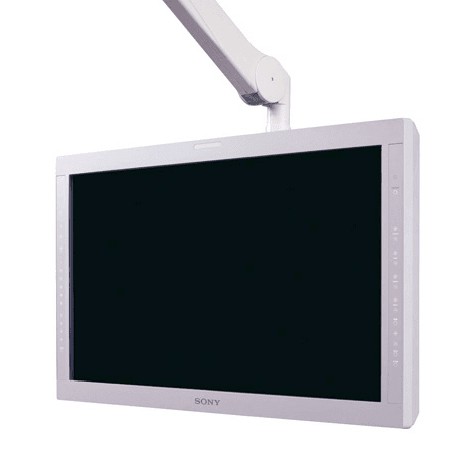

Sony LMD-2451MD 24″ FHD Surgical Display

  • LMD2451MD Excellent Brightness and Contrast
  • Natural Gradation and Accurate Color Reproduction
  • Sophisticated I/P (Interlace to Progressive) Conversion
  • Input Versatility (Multi-format Signal Support)
  • Multiple Display Modes
  • Mirror Image
  • Protected Controls
  • Compliance with medical standards
  • Limited refurbished units available!
  • Hiliex also offers a Repair/Service and Exchange Program
SKU: SONY-LMD2451MD-R Categories: , , , , , Tags: , , Brand:

Description

Sony LMD-2451MD 24-inch FHD Surgical Display Monitor

The Sony LMD-2451MD 24” full HD widescreen surgical LCD monitor to its comprehensive medical-grade display line-up. Built upon the same platform as the popular LMD-2450MD. It offers a superb quality WUXGA (1920 X 1200) LCD panel. As well as 10-bit signal processing, Sony ChromaTRU color balance technology and new integration friendly features. It also has enhanced DVI interface and multi-modality support capabilities.

The Sony LMD-2451MD surgical display is equipped with two unique built-in option slots. It is designed to accept a variety of option boards (including two new option boards) to easily expand, select, and change input/output signals for integration into virtually any system environment. Installation of the new BKM-256DD option board expands the monitor’s capability to accept up to two DVI inputs and one DVI loop-through output.

For optical fiber transmission, the 5V power required to power a DVI-D to fiber optic converter is supplied from both DVI-D input and output connectors of the BKM-256DD option board. This enables easy integration of optional DVI-D to fiber optic extension converters. Installation of the new BKM-250TG option board enables the Sony LMD-2451MD surgical display to accept a 3G input 1080/60p signal via a single SDI cable.

It Incorporates the Industry-leading Sony HD technology and versatile input/output signal capability. The Sony LMD-2451MD surgical display is the perfect addition to today’s HD operating rooms. This well designed display is one of the best 24″ medical displays on the market. Its image quality and slim design is on par with today’s technologies.

The Sony LMD-2451MD surgical display is also backed with a 3 year warranty to give you a piece of mind in terms of quality and functionality of the product. Give us a call to discuss your requirements and so we can also offer you the best solution to your needs.

Our service and repair center offers expert repairs!
Model: LMD-2451MD
Sony Support

Specifications

Picture Performance
LCD Panel Type a-Si TFT Active Matrix
Resolution WUXGA (1920 X 1200)
Effective Picture Size (W x H) Approx. 518 x 324 mm (20 1/2 x 12 7/8 inches) Diagonal 609 mm (24 inches)
Aspect 16:10
Colors Approx. 16,770,000 colors
Viewing Angle 89°/89°/89°/89° (typical) (up/down/left/right contrast > 10:1)
Input/Output
Input Composite
BNC (x 1), 1.0 Vp-p ±3dB, sync negative
Y/C
4pin Mini DIN (x 1) Y: 1.0 Vp-p ±3dB, sync negative
C: 0.286 Vp-p ±3dB (NTSC), 0.3 Vp-p ±3dB (PAL)
Component/RGB BNC
(x 3)
Component: 0.7 Vp-p ±3dB (75% chrominance standard color bar signal)
RGB: 0.7 Vp-p ±3dB (Sync On Green, 0.3 Vp-p, sync negative)
Ext. Sync
BNC (x 1)
0.3 to 4.0 Vp-p ±bipolarity ternary or negative polarity binary
Computer
DVI-D (x 1): TMDS single link
HD15
D-sub 15pin (x 1)
0.7 Vp-p, sync positive (Sync On Green, 0.3 Vp-p, sync negative)
Sync: TTL level (polarity free, H/V separate sync)
Plug & Play function: corresponds to DDC-2B
Optional
1 slot Signal format: H 15 to 45 kHz, V 48 to 60 Hz
DC IN
DC 5 V/24 V (output impedance 0.05Ω or less)
Remote Parallel
Modular 8-pin (x 1)
Serial
D-sub 9-pin (RS-232C) (x 1)
RJ-45 modular (ETHERNET) (x 1)
Output Composite
BNC (x 1), Loop-through, 75Ω automatic termination
Y/C
4-pin mini-DIN (x 1), Loop-through, 75Ω automatic termination
Component/RGB
BNC (x 3), Loop-through, 75Ω automatic termination
Ext. Sync
BNC (x 1), Loop-through, 75Ω automatic termination
General
Power Consumption Maximum: Approx. 115 W (with 2 x BKM-229X)
Power Requirements AC 100 to 240 V, 50/60 Hz, 1.2~0.6 A,
DC 24 V 3.5 A, 5 V 0.030 A
Operating Temperature 0 to 35 °C (32 to 95 °F), Recommended: 20 to 30 °C (68 to 86 °F)
Operating Humidity 30 to 85 % (no condensation)
Storage & Transport Temperature -20 to 60 °C (-4 to 140 °F)
Storage & Transport Humidity 0 to 90 % (no condensation)
Operating, Storage, and Transport Pressure 700 to 1060 hPa
Dimensions (W x H x D) Approx. 602 x 386 x 110 mm (23 3/4 x 15 1/4 x 4 3/8 inches) (including projections)
Mass Approx.8.5 Kg (18lb 12oz) (with BKM-243HS pre-installed)
Supplied Accessories
  AC adaptor
AC power cord
AC plug holder
Instructions for Use
CD-ROM (Operating instructions)
Using the CD-ROM manual
Quick reference
When You First Use The Monitor booklet
Sales company guide
Warranty card

Additional information

Manufacturer

SONY
Model

LMD2451MD
