Sony LMD-2451MT

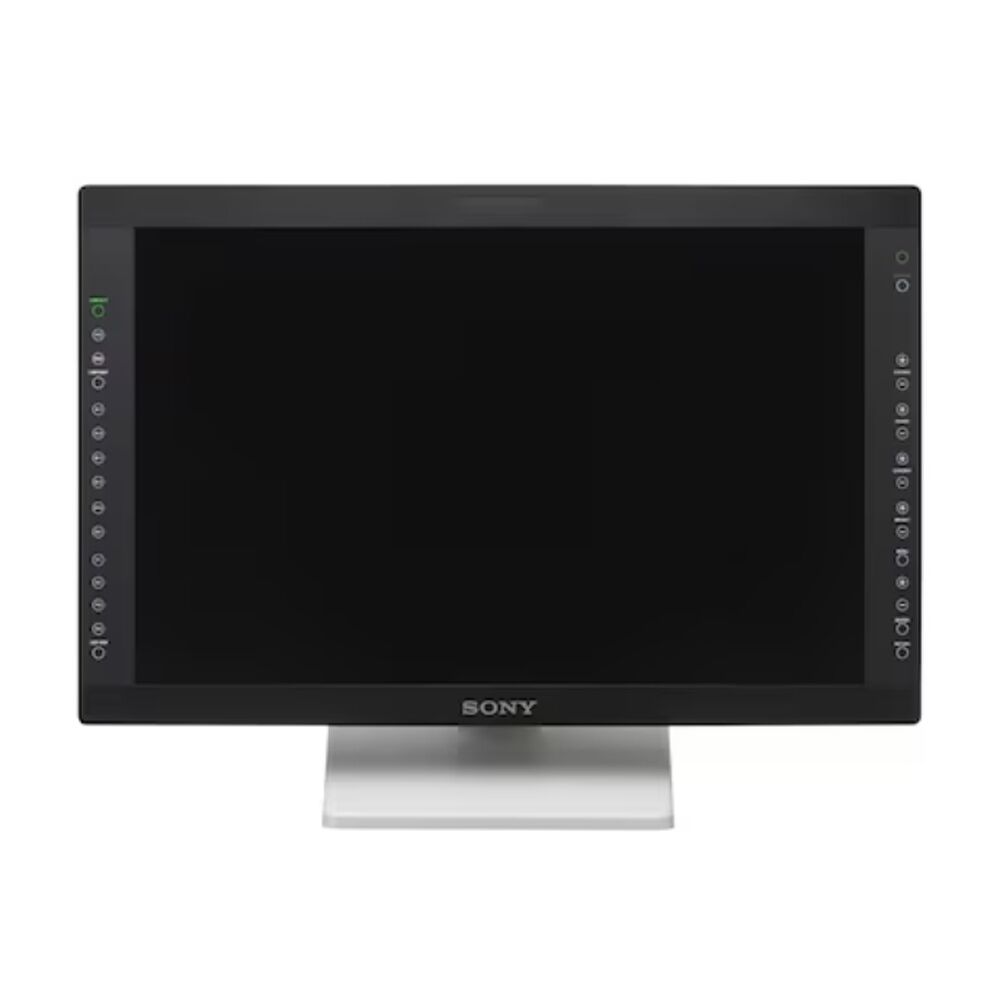

Sony LMD-2451MT 24″ 3D HD Surgical Display

  • Pioneering 3D quality
  • Multiple 3D formats
  • Sony unique color matching technology ChromaTRU
  • High brightness and contrast through super-wide WUXGA
  • Natural gradation and accurate color reproduction
  • Gamma curve selection
  • Multiple display modes
  • Mirror image
  • Protected controls
  • Compliance with medical standards

Limited refurbished units available!
Hiliex also offers a Repair/Service and Exchange Program

SKU: SONY-LMD2451MT-R Categories: , , , , , Tags: , Brand:

Description

Sony LMD-2451MT 24-inch 3D HD Surgical Display Monitor

The Sony LMD-2451MT, a  high-performance medical 3D LCD monitor – 24-inch WUXGA (1920 x 1200 pixels) resolution monitor medical-grade display.

In recent years, digital technologies for stereoscopic three dimensional (3D) image processing and monitoring have progressed rapidly. This is particularly true of 3D imaging for medical use.

Some types of 3D monitoring systems are already used in medical modality applications. However, most of these are based on SD (standard-definition) resolution. Today’s users are unhappy with this level of 3D picture quality and the way it compromises the usability of conventional 3D monitoring systems for endoscopic surgery. Newer systems which incorporate improved digital technologies for 3D monitoring, including HD (high-definition) resolution, are of greater value in medical modality applications.

The LMD-2451MT incorporates a circular-micro polarizer filter attached to the LCD panel, and is supplied with circular-polarizer 3D eye shield. Wearing these lightweight 3D eye shield, users experience a feeling of natural depth, and smooth, uninterrupted viewing of multiple monitors and flicker-free 3D images. This image quality helps users to engage in 3D operations with minimal stress.

Installing an optional BKM-250TGM 3G-SDI input adaptor, this 3D monitor offers a variety of 3D display functions such as Disparity Simulation, a Checkerboard Display, L/R Switch, and more to support optimum 3D settings and adjustments.

Not only does the LMD-2451MT deliver 3D imaging capabilities, but it also can be used as a 2D monitor and its features are upper-compatible with those of the current LMD-2450MD and LMD-2451MD medical monitors.

With these features and benefits, the LMD-2451MT is ideal for 3D endoscopic surgery and suited to a wide range of medical settings, such as conferences, education, and training, where critical high-quality 3D monitoring is required.

Our service and repair center offers expert repairs!
Sony Support

Specifications

Picture Performance
Type a-Si TFT Active Matrix LCD with an AR-coated protection panel
Resolution 1920 x 1200 pixels (WUXGA)
Effective picture size (H x W) 518.4 x 324.0 mm (20 1/2 x 12 7/8 inches)
Effective picture size (diagonal) 613.2 mm (24 1/4 inches)
Aspect 16:10
Colors Approx. 16.7 million colors (8-bit)
2D Viewing angle 89°/89°/89°/89° (typical) (up/down/left/right contrast >10:1)
3D Viewing angle 50° at a viewing distance more than 300 mm, crosstalk less than 7% (typical)
Input
Composite BNC (x1), 1.0 Vp-p ±3dB sync negative
Y/C Mini DIN 4-pin (x1)
Y: 1.0 Vp-p ±3dB sync negative,
C: 0.286 Vp-p ±3dB (NTSC burst signal level),
0.3 Vp-p ±3dB (PAL burst signal level)
RGB, Component BNC (x3)
RGB : 0.7 Vp-p ±3dB (sync on green, 0.3 Vp-p sync negative)
Component : 0.7 Vp-p ±3dB (75% chrominance standard color bar signal)
DVI-D DVI-D (x1)
TMDS single link
HD15 D-sub 15-pin (x1),
RGB: 0.7 Vp-p sync positive (sync on green, 0.3 Vp-p sync negative)
Sync : Total level (polarity free, H/V separate sync)
Plug & Play function : corresponds to DDC2B
External sync BNC (x1)
0.3 Vp-p to 4.0 Vp-p ±bipolarity ternary or negative polarity binary
Option slot 2 slots
Parallel remote Modular connector 8-pin (x1) (pin-assignable)
Serial remote D-sub 9-pin (RS-232C) (x1), RJ-45 modular connector (Ethernet) (x1) (10BASE-T/100BASE-TX)
DC in DC 5V / 24V (output impedance 0.05 ohms or less)
Output
Composite BNC (x1), loop-through, with 75 ohms automatic termination
Y/C Mini DIN 4-pin (x1) loop-through, with 75 ohms automatic termination
RGB, Component BNC (x3), loop-through, with 75 ohms automatic termination
External sync BNC (x1), loop-through, with 75 ohms automatic termination
General
Power requirements DC IN: 24 V 5.0 A, 5 V 0.030 A (supplied from AC adapter)
AC adapter (Sony, AC-110MD)
AC IN: 100 V to 240 V, 50/60 Hz, 1.53 A to 0.58 A
DC OUT: 24 V 5.0 A, 5 V 0.060 A
Power consumption Maximum: approx. 136 W (with 2 x BKM-229X)
Operating temperature 0°C to 35°C (32°F to 95°F)
Recommended 20°C to 30°C (68°F to 86°F)
Operating humidity 30% to 85% (no condensation)
Storage and transport temperature -20°C to +60°C (-4°F to +140°F)
Storage and transport humidity 0% to 90% (no condensation)
Operating, storage, and transport pressure 700 hPa to 1060 hPa
Dimensions (W x H x D) 602.4 x 386.2 x 110 mm (23 3/4 x 15 1/4 x 4 3/8 inches) (including projections)
Mass 8.7 kg (19 lb 3 oz) (with 2 x BKM-229X) AC adapter (AC-110MD) 1.2 kg (2 lb 10 oz)
Supplied Accessories
  AC Adaptor (AC-110MD) (1)
AC power cord (1)
AC plug holder (2)
3D Eye Shield Kit (CFV-E30SK) (1) • Frame (1) • 3D shield (3)
Instructions for use of the 3D Eye Shield Kit (1)
L/R labels (1)
Before Using This Unit (1)
CD-ROM (including the Instructions for Use) (1)
Service Contact List (1)
Information for customers in Europe (1)

Additional information

Manufacturer

SONY
Model

LMD2451MT
