Sony LMD-2765MD 27″ FHD Surgical Display

  • LMD2765MD Large and Bright Full HD Screen
  • User-friendly Control Panel
  • A.I.M.E.™ (Advanced Image Multiple Enhancer)
  • Variety of Display Modes
  • Clear and High-contrast View
  • Easy to Clean
  • Ergonomic Design
  • Installation-friendly Cabling
  • VESA Mounting
  • Compliance with Standards
  • Limited refurbished units available!
  • Hiliex also offers a Repair/Service and Exchange Program



SKU: SONY-LMD2765MD-R Categories: , , , , , , , Tags: , , Brand:

Description

Sony LMD-2765MD 27-inch Surgical Display Monitor

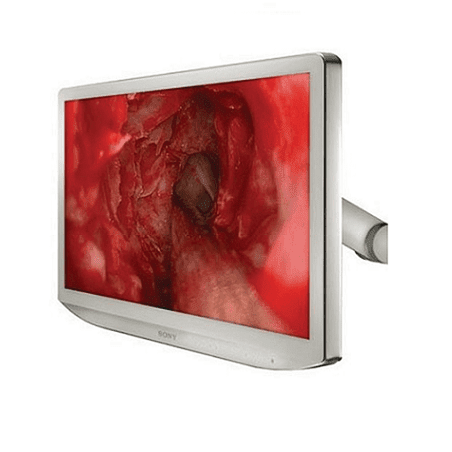

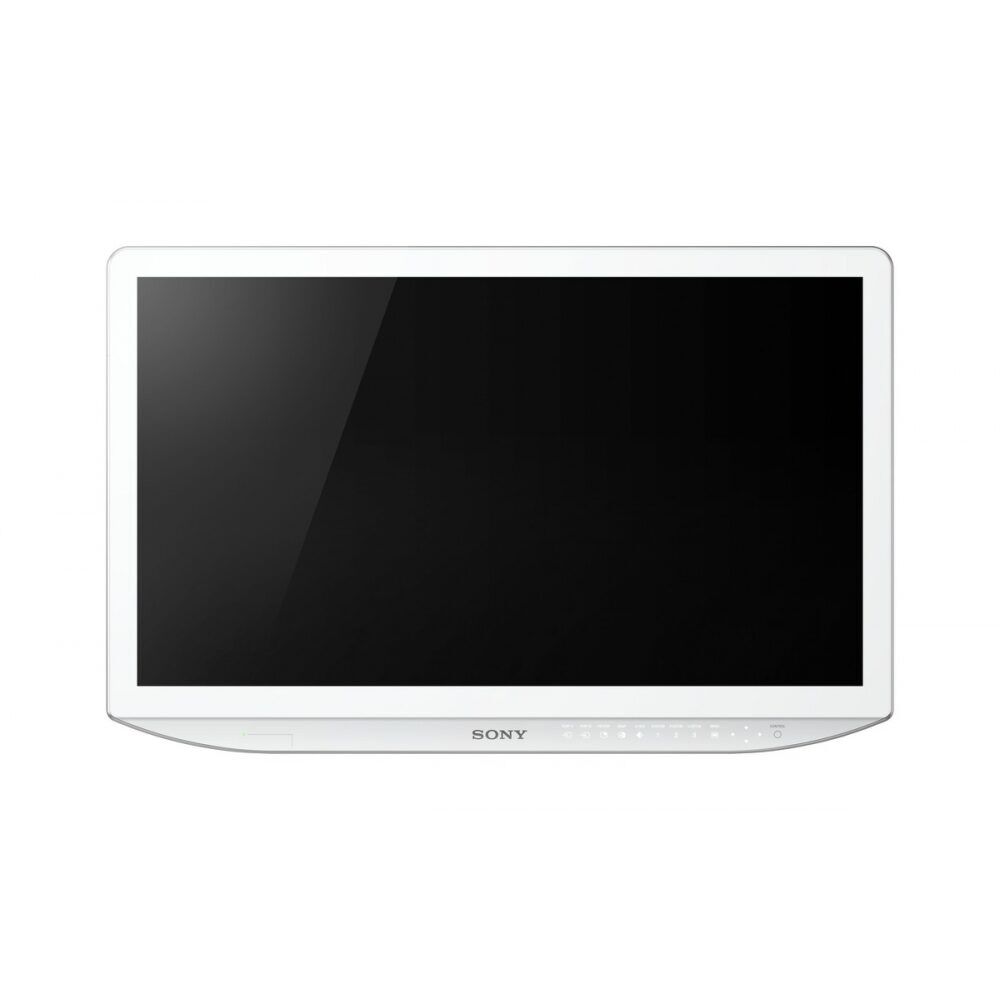

Introducing the Sony LMD-2765MD 27-inch surgical medical monitor! Design meets technology. The first thing you notice is the LMD-2765MD ‘s unique design. The uncommonly slender chassis and front bezel are truly eye catching. Next you’re captivated by the high brightness of the display. The robust edge-to-edge Opti-Contrast Panel protects the screen while reducing glare and reflection, while the 27-inch screen provides a larger full HD (1980 x 1080 pixels) viewing area and fits onto the same carts and boom arms that currently take 26-inch models.

The Sony LMD-2765MD 27-inch display is ideal for most medical imaging applications. Both in and out of the OR, including hospital operating rooms, surgical centers, clinics, and doctor’s offices. The LMD-2765MD features digital and analog interface (Video, S Video and HD-15 inputs). This newly designed display is one of the most current displays on the market. Its image quality and slim design is on par with today’s technologies. The LMD-2765MD is also backed with a 3 year warranty to give you piece of mind in terms of quality and functionality of the product.

Surgeons and operating room staff can view Full HD images from a wide range of medical imaging systems with this high quality LCD monitor.

The stylish LMD-2765MD displays High Definition 2D color images from surgical endoscopic/laparoscopic cameras and other compatible medical imaging systems.

Flexible operation is enhanced with a choice of PIP/POP picture modes and a convenient image flip function. An intuitive guided user interface assists with simple fingertip operation.

Analogue and digital interfaces simplify connection with a wide range of High Definition and Standard Definition imaging sources.

Our service and repair center offers expert repairs!
Model: LMD-2765MD
Sony Support

Specifications

Picture Performance
Panel a-Si TFT Active Matrix LCD
Picture Size (Diagonal) 686 mm
27 inches
Effective Picture Size (H x V) 597.9 x 336.3 mm
23 5/8 x 13 1/4 inches
Pixel pitch 0.3114 x 0.3114 mm
Resolution (H x V) 1920 x 1080 pixels (Full HD)
Aspect 16:9
Pixel Efficiency 0.9999
Backlight LED
Panel Technology LCD with IPS
Luminance (Panel Specification) 1000 cd/m² (typical)
Contrast Ratio 1000:1
Colors Approx.16.7 million colors
Viewing Angle (Panel Specification) 89°/89°/89°/89° (typical)
Gamma 1.8, 2.0, 2.2, 2.4, 2.6, DICOM
Input
Composite Input BNC (x1)
Y/C Input Mini-DIN 4-pin (x1)
Y: 1.0 Vp-p (75 Ω)
C: 0.286 Vp-p (75 Ω, NTSC burst)
0.3 Vp-p (75 Ω, PAL burst)
RGB, Component Input RGB: Via HD-15 connector (D-sub 15 pin)*
0.7 Vp-p (75 Ω) (when Sync On Green, 0.3 Vp-p sync)
*Needs SMF-405 sold separately
Component: Via HD-15 connector (D-sub 15 pin)*
Y: 1.0 Vp-p (75 Ω) (including 0.3 Vp-p sync)
Pb: 0.7 Vp-p (75 Ω), Pr: 0.7 Vp-p (75 Ω)
*Needs SMF-405 sold separately
DVI-D Input DVI-D (x2)
TMDS single link
3G-SDI Input BNC (x2)
3G/HD/SD-SDI
HD15 Input D-sub 15-pin (x1)
RGB: 0.7 Vp-p (75 Ω)
H/V Sync: Total level (polarity free)
Plug & Play function : corresponds to DDC2B
External Sync Input Via HD-15 connector
(D-sub 15-pin) *
* Needs SMF-405 sold separately
0.3 Vp-p to 4.0 Vp-p (75 Ω)
Serial Remote (LAN) D-sub 9-pin (RS-232C) (x1), RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
DC Input XLR-type 3-pin (male) (x1), 24 V DC (output impedance 0.05 ohms or less)
Output
DVI-D Output DVI-D (x1)
3G-SDI Output BNC (x1)
DC 5V Output (x1), up to 1.2 A
General
Power Requirements LCD monitor
- DC Input: 24 V, 6.25 A
AC adaptor: 85 (W) x 170 (L) x 40 (H) mm
AC IN: 100 V - 240 V, 50/60 Hz, 2.5 A - 1 A
Power Consumption Approx. 102 W (max.)
Operating Temperature 0°C to 35°C (Recommended: 20°C to 30°C)
32°F to 95°F (Recommended: 68°F to 86°F)
Operating Humidity 30% to 85% (no condensation)
Storage/Transport Temperature -20°C to +60°C (-4°F to +140°F)
Storage/Transport Humidity 0% to 90%
Operating/Storage/Transport Pressure 700 hPa to 1060 hPa
Dimensions (W x H x D) 650×419×58 (Slimmest D 29mm)
650×474×302 mm (with SU-560 optional stand)
25 5/8 x 16 1/2 x 2 3/8 inches
25 5/8 x 18 3/4 x 12 inches (with SU-560 optional stand)
Mass Target Approx, 8.5kg
Target Approx 18.75 lb
Mounting 100 x 100 mm VESA
Supplied Accessories AC adaptor (AC-120MD) (1)
AC power cord (1)
Optional Accessories SU-560 Monitor stand
SMF-405
Analog component exchange cable

Additional information

Manufacturer

SONY
Model

LMD2765MD
