Sony LMD-X2710MD

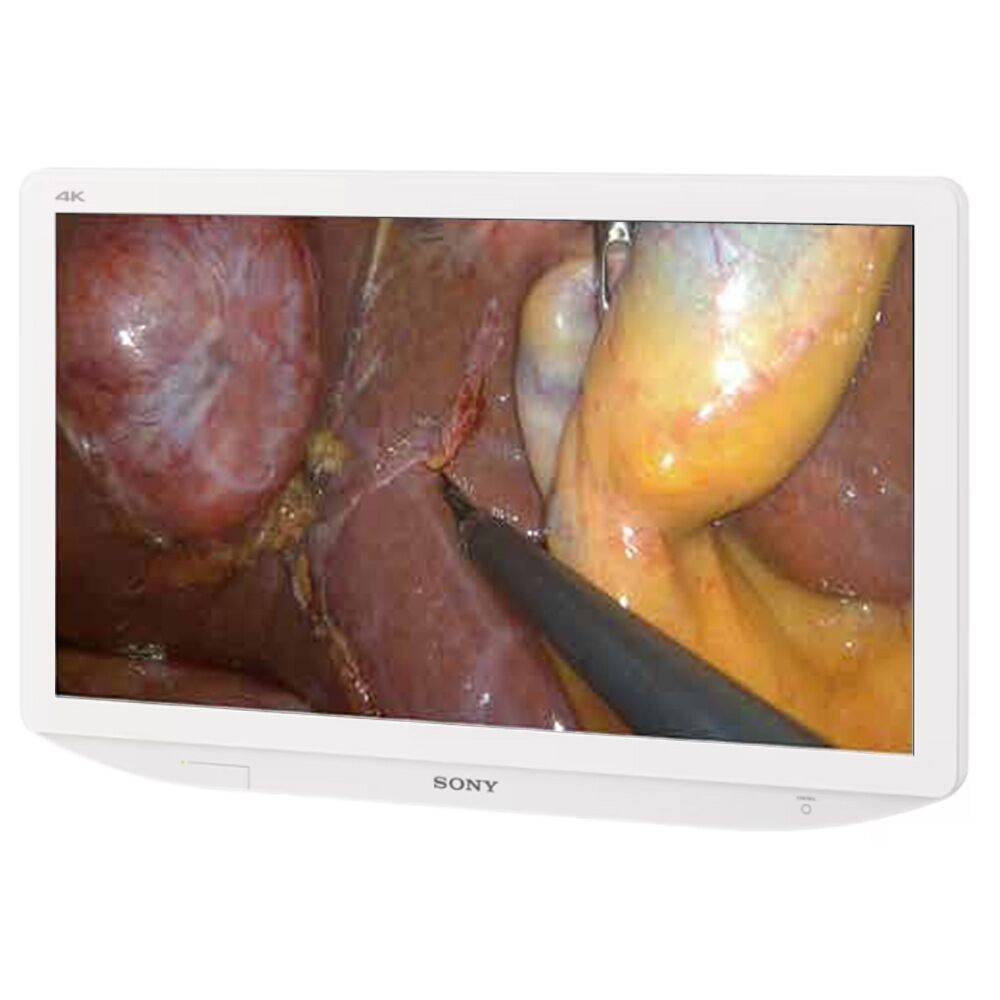

Sony LMD-X2710MD 27″ 4K Surgical Display

  • Bright, high-quality 4K images
  • Auto signal detect and fail-safe modes
  • HD/SD to 4K upscaling
  • Compact, practical design and easy cleaning
  • Wide color gamut
  • Choice of signal inputs/outputs
  • HDR gamma support with HLG
  • Installation-friendly cabling
  • Compact and ergonomic with easy-clean design
  • Greater installation flexibility via direct AC input or AC adaptor
  • Range of display modes
  • Easy-to-use control panel with LED lighting navigation and custom buttons
  • Compliance with medical standards
SKU: SONY-LMDX2710MD Categories: , , , , Tags: , , , , Brand:

Description

Sony LMD-X2710MD 27-inch 4K Surgical Display Monitor with 12G-SDI

The Sony LMD-X2710MD is a 27‑inch (diag.) 4K LCD medical-grade surgical monitor intended for use in hospital operating rooms, surgical centers, clinics, doctors; offices, and similar medical environments. Suitable for use in minimally invasive surgical procedures, it displays bright, high-quality 2D color images with true 4K resolution from endoscopic/laparoscopic cameras and other compatible medical imaging systems.

4K picture quality is enhanced further by HDR gamma support and a wide color gamut for clearer viewing of fine details and subtle tonal differences. Thanks to Sony’s unique technology, HD/SD resolution signals are automatically upscaled to a 4K view with four times the pixel count of Full HD. This makes the LMD-X2710MD ideal for users of HD surgical imaging systems, who can enjoy improved image quality today while being ready for future upgrades to a 4K system.

Operation is simplified by the monitor’s intuitive control panel and LED navigation. There’s a wide range of input and output signal options; DP, HDMI, DVI, 12G/3G/HD/SD-SDI. For greater flexibility, images can be displayed from multiple sources quickly from the menu in a variety of display modes.

Compact and easy to clean, the ergonomic design of the LMD-X2710MD is ideal for integration in modern clinical environments. Installation is simplified with a choice of AC or DC powering options and neat cable management.

Experience unparalleled clarity and precision with the Sony LMD-X2710MD 27″ 4K surgical display monitor. Designed specifically for medical environments, this monitor delivers stunning 4K resolution, ensuring every detail is visible during critical procedures. Its advanced color accuracy and high brightness levels provide exceptional image quality, making it an essential tool for surgeons and medical professionals. With a sleek design and robust build, the LMD-X2710MD is not only reliable but also easy to integrate into any surgical setup. Elevate your surgical experience and make informed decisions with this state-of-the-art display.

Model: LMDX2710MD
Our service and repair center offers expert repairs!
Sony LMD-X2710MD Support

Specifications

Picture Performance
LCD Panel a-Si TFT Active Matrix LCD
Picture Size (Diagonal) 684 mm (26.93 in)
Effective Picture Size 23.50 x 13.25 inches (596.2 x 335.3 mm)
Pixel pitch 0.15525 x 0.15525 mm
Resolution 3840 x 2160 pixels
Aspect Ratio 16:9
Pixel Efficiency 99.99%
Backlight LED
Luminance (Panel Specification) 800 cd/m² (typical)
Contrast Ratio 1000:1
Colors Approx.1.07 billion colors
Viewing Angle (Panel Specification) 89°/89°/89°/89° (typical) (up/down/left/right, contrast > 10:1)
Gamma 1.8, 2.0, 2.2, 2.4, 2.6, DICOM, HLG
Input
HDMI Input HDMI connector (x1), HDCP1.4 correspondence
DVI-D Input DVI-D connector (x1), TMDS single link
SDI Input 12G/3G/HD/SD-SDI connector, BNC type (x1)
Display Port Input Display Port connector (x2),1.2, SST, HDCP1.3 correspondence
Serial Remote (LAN) D-sub 9-pin (RS-232C) (x1), RJ-45 modular connector (ETHERNET) (x1)
Remote Stereo mini jack (x1)
AC input AC input connector (x1), 100 V to 240 V, 50/60 Hz
DC Input DC input connector (x1), DC 26 V
Output
DVI-D Output DVI-D connector (x1)
SDI Output 12G/3G/HD/SD-SDI connector, BNC type (x1)
Display Port Output Display Port connector (x1)
DC 5 V/ 12V Output 5‑V Output (x1) up to 2 A, Round-type pin (female) (x1)
12‑V Output (x1) up to 2.5 A, Round-type pin (female) (x1)
General
Power Requirements AC IN
 100 V–240 V, 50/60 Hz, 1.5 A–0.7 A
Power Requirements DC IN 26 V, 5.2 A (supplied from AC adaptor)
Power Consumption Approx. 149 W (max.)
Operating Temperature 0°C to 35°C (32°F to 95°F)
Operating Humidity 30% to 85% (no condensation allowed)
Storage/Transport Temperature -20°C to +60°C (-4°F to +140°F)
Storage/Transport Humidity 20% to 90%
Operating/Storage/Transport Pressure 700 hPa to 1060 hPa
Dimensions (W x H x D) 26 x 16.88 x 3.25 inches (658.8 x 426.8 x 80 mm) 26 x 20.13 x 12.63 inches (658.8 x 508.6 x 319 mm) (with SU-600 optional stand)
Mass Approx. 20 lb 4.5 oz (Approx. 9.2 kg) (when the optional stand is not installed)
Mounting 100 x 100 mm VESA
Supplied Accessories AC plug holder (x2)
Before Using This Unit (x1)
CD-ROM (including the Instructions for Use) (x1)
Service Contact List (x1)
