Sony MCC-500MD Medical Grade 2D Camera

1/2.9-type Exmor Full HD Image Sensor
Compact and Lightweight Camera Head Unit
Wide Variety of Video Formats – from SD to Full HD (1080/60p)
Camera Synchronization for 3D Shooting
Flexible Choice of Camera Cable Length
Compliance with Medical Safety Standards
RS-232C Interface
Model: MCC500MD

Description

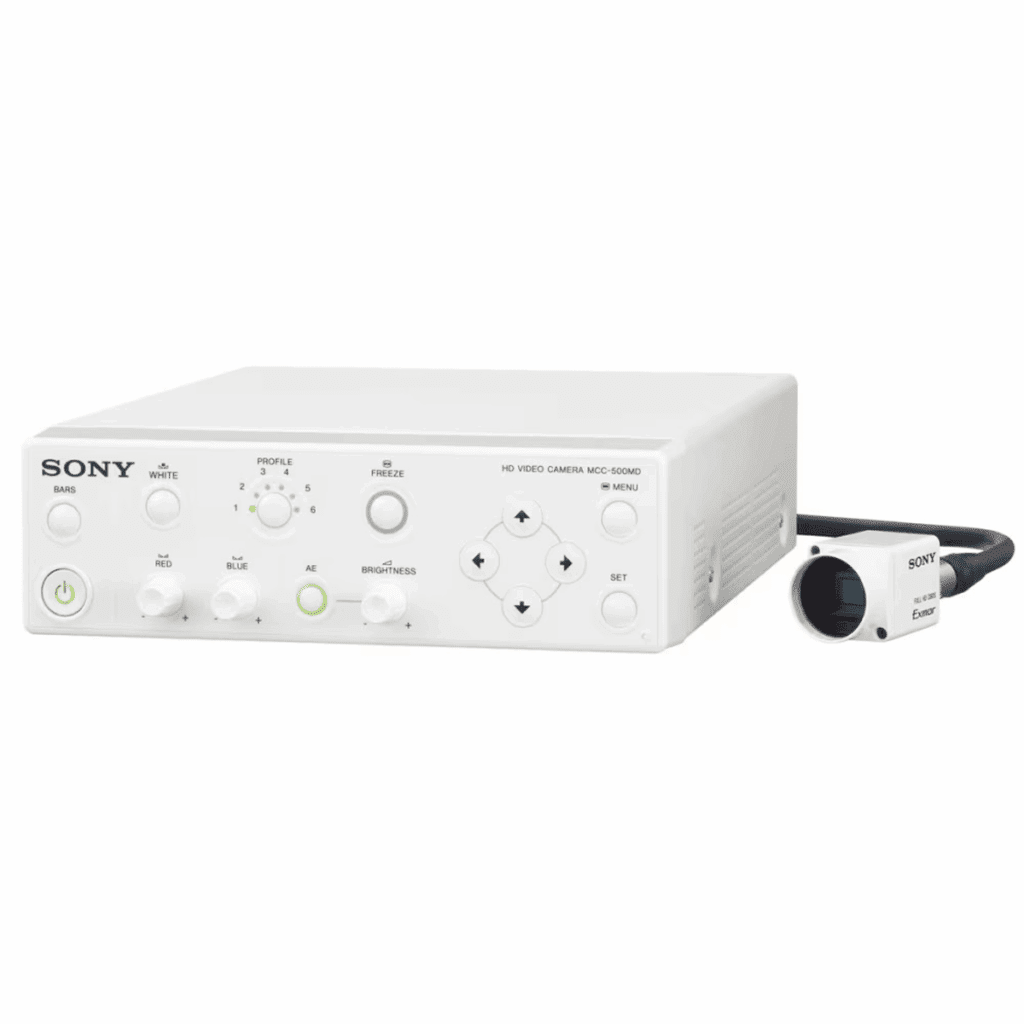

Sony MCC-500MD Medical Grade 2D Camera

The Sony MCC-500MD medical video camera is the latest edition to Sony’s comprehensive line-up. This affordably priced camera features the latest generation image sensor technology for better low light sensitivity than traditional 1/3 sized image sensor technology for superb image reproduction capability.

The camera consists of a compact camera control unit and one camera head with 1/2.9-type single (1920 x 1080) Exmor™ CMOS sensor, featuring 2.07 million pixels. By combining the Exmor image sensor with Sony’s image processing technologies, the Sony MCC-500MD provides an excellent sensitivity of F5.6, a remarkable signal-to noise ratio of 55db, and a high horizontal resolution of 900 TV lines or more.

The MCC-500MD has enough output flexibility to fit a range of medical environments, with HDMI, HD-SDI (3G-SDI), S Video, and Composite video connectivity. Furthermore, Full HD (1920 x 1080) quality 60-fps progressive scan technology results in smooth images with reduced blur when HDMI or HD-SDI is used – ideal for viewing fast- moving images. All of the camera’s outputs are active simultaneously, so it is ideal for use with 2nd or 3rd monitors in the operating room.

Together with Sony’s medical-grade recorders and monitors, the Sony MCC-500MD is the ideal solution for capturing and recording microsurgery applications. The Sony MCC-500MD ‘s compact and light-weight design allows the camera’s C-mount head to be easily mounted on most existing surgical microscopes.

Our service and repair center offers expert repairs!
Model: MCC-500MD
Sony Support

Specifications

Camera Head
Image Device	1/2.9 type ""Exmor"" CMOS image sensor, single chip type
Effective Pixels	1920 (H) x 1080(V)
Lens Mount	C-mount
Sensitivity	F5.6 (Typical) (At 1080/59.94i, 89.9% reflections, 2000 lx)
Picture S/N	55dB (Y) (Typical)
Horizontal Resolution	900TV lines or more
Gain	0dB to 27dB
Shutter Speed	1/60 to 1/10000
Camera Cable Connector	20-pin, round
Camera Features
HD-SDI Video Format	1080/60P, 1080/60i, 1080/30P 1080/50P, 1080/50i, 1080/25P
HDMI Video Format	1080/60P, 1080/60i, 1080/30P, 480/60P 1080/50P, 1080/50i, 1080/25P, 576/50P
DVI Video Format	No
Picture Profile	Yes (Six settings)
Picture Flip	Yes
Freeze Function	Yes (outputting a still image)
Color Bar	Yes It cannot be used for image quality adjustment.
Camera Synchronization for 3D-shooting	Yes
Fluorescein Mode	Yes
AC Power Operation	Yes
Connectors
Input Connectors	Remote contact switch 1, 2 (Stereo mini jack)
Output Connectors	VIDEO OUT (x1) (BNC) S VIDEO OUT (x1) (4-pin mini DIN connector) HDMI OUT (x1) (HDMI connector) HD-SDI OUT (x1)
Input/Output Connectors	CAMERA (x1) (20-pin, round) RS-232C (x1) (D-sub 9-pin) 3D SYNC IN (x1), OUT(x1) (BNC)
Other Connector	Equipotential ground connector(x1)
General
Power Requirements	100 to 240V AC, 50/60Hz
Input current	0.27A - 0.18A
Operating Temperature	0°C to 40° C 32°F to 104°F
Operating Humidity	20% to 80% (without condensation)
Operating Pressure	700 hPa to 1060 hPa
Storage and transport temperature	-20°C to +60°C -4°F to +140°F
Storage and transport humidity	20% to 90% (without condensation)
Storage and transport pressure	700 hPa to 1060 hPa
Mass (Camera Head)	approx. 40 g approx. 1.4 oz
Mass (Camera control unit)	approx. 2.3 kg approx. 5 lb. 1.1 oz
Dimensions (Camera Head) (WHD, excluding longest protrusions)	approx. 27 x 28 x 49 mm approx. 1 1/8 x 1 1/8 x 1 15/16 in.
Dimensions (Camera control unit) (WHD, excluding longest protrusions)	approx. 200 x 62 x 240 mm approx. 7 7/8 x 2 1/2 x 9 1/2 in.
Supplied Items	AC power cord (x1) Tripod adaptor (x1) Tripod adaptor locking screws (x2) Lens mount cap (x1) Before Using This Unit (x1) CD-ROM (Instruction for Use in PDF format (x1) Warranty Booklet (x1) Service Contact List (x1)
Separately-Sold Accessories	Camera Cable CCMC-SA06 (standard 6m (19.6ft)) CCMC-SA10 (standard 10m (32.8ft)) CCMC-SA15 (standard 15m (49.2ft)) CCMC-EA05 (extension 5m (16.4ft)) Foot Switch (FS-24) The FS-24 has an Ingress Protection rating of IPx3.Therefore, do not operate it in environments exposed to splashing liquids(e.g. surgical operating rooms). For safety, use a device with a rating of IPx6 or higher when operating in such environments.

Additional information

Manufacturer	SONY
Model	MCC-500MD
