Description

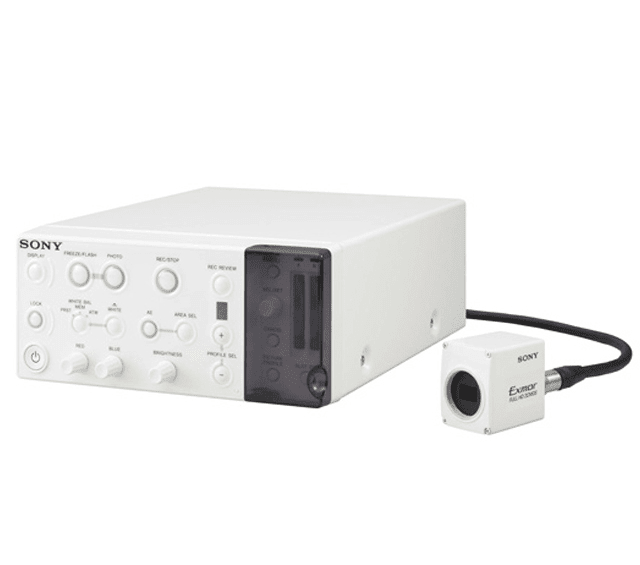

Sony PMW-10MD Medical HD Camera

The Sony PMW-10MD Full HD Medical Grade camera system combines outstanding image quality with the convenience of a built-in HD recorder. Its compact size and remote head design allow for simple integration into a wide variety of medical and scientific applications.

The camera is equipped with 3 one half-inch (1920 x 1080) Exmor™ CMOS sensors, each delivering over 2 million pixels. Although small in size, the Sony PMW-10MD delivers a superb video image, excellent sensitivity of F10, and a remarkable signal to noise ratio of 54 dB. Combine these specifications with a high horizontal resolution of 1,000 TV lines and a wide dynamic range of 450%, the Sony PMW-10MD stands out as one of the best camera systems available for medical applications.

Experience the cutting-edge technology of the Sony PMW-10MD medical HD camera, designed specifically for the healthcare industry. This high-definition camera delivers crystal-clear imaging, ensuring that every detail is captured with precision. Whether you’re documenting procedures or conducting remote consultations, the PMW-10MD provides the reliability and quality you need.

With its user-friendly interface and robust build, this camera is perfect for both seasoned professionals and newcomers alike. Its lightweight design allows for easy maneuverability, while advanced features like low-light performance and high dynamic range make it versatile for various medical environments. Plus, the camera is compatible with a range of medical equipment, enhancing its functionality in any setting.

Don’t miss out on the opportunity to elevate your medical practice with the Sony PMW-10MD. Our sales and repair services ensure that you have the support you need to keep your equipment running smoothly. Invest in quality and reliability today—your patients deserve the best!

Model: PMW10MD
Our service and repair center offers expert repairs!
About Sony Medical

Sony Electronics Inc. is a leading provider of innovative medical products designed for use in a wide range of applications as a stand-alone hardware solution, or for incorporation into integrated medical systems. Medical imaging offerings include dry film imagers, printers, cameras, recorders and medical grade monitors for a full range of modalities.

Specifications

General
Mass	CHU : Approx. 90 g (3.2 oz) CCU : Approx. 2.8 kg (6 lb 3 oz)
Dimensions	CHU : 35 x 45 x 50mm (1 7/16 x 1 13/16 x 2 inches) without projection CCU : 200 x 88 x 240 mm (7 7/8 x 3 1/2 x 9 1/2 inches) without projection
Power Requirements	AC 100 to 240 V, 50/60 Hz
Power Consumption	0.6-0.36 A (Max.30 W)
Operational Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Camera Head Unit
Image Device	3-chip 1/2-inch type Exmor CMOS
Effective Picture Elements	1920 (H) × 1080 (V)
Lens Mount	C-mount
Optical system	F2.2 prism system
Sensitivity	F10 typical (in 1920 x 1080/59.94i mode)
Minimum Illumination	0.14 lx (in 1920 x 1080/59.94i mode, F2.2, +21 dB gain, with 64-frame slow shutter)
S/N Ratio	54 dB (Y) (typical)
Horizontal Resolution	1000TV lines (in 1920 x 1080/59.94i ;through HD-SDI)
White Balance	PRESET/MEMORY/ATW
AE	ON/OFF
AE Area	Multi/Large/Medium/Spot/Slit Selectable
Connector	Camera output: 20-pin (x1)
Camera Control Unit
Picture Profile	PictureProfile 1-6
Output Signals	HD-SDI, Composite, S-Video (Y/C), Y,Pb,Pr, DVI-D
DVI-D output	1080i/1080P
Color Bars	Multifomat/75%/100%/Off
Downconvert Mode	Squeeze/Letterbox/EdgeCrop
Flash Trigger output	CMOS/Open-Collector
Serial Data	RS-232C
Connectors	Camera input : 36-pin (x1) MIC input : Stereo mini-jack (x1) Composite output : BNC (x1) S-Video output : mini DIN 4-pin (x1) Component output : D-Sub 15-pin (x 1) DVI-D output : DVI connector 19-pin (x1) HD SDI output : BNC (x 2) EXT SYNC input : BNC (x1) FS,TRIG IO : Stereo mini-jack (x1) Remote : D-sub 9-pin (x1)
Freeze function	OFF/ON
Recording Media	SxS Pro Memory Card
Recording Format (Video)	HQ mode : 35Mbps (VBR) MPEG-2 MP@HL - 1920 x 1080 / 59.94i, 50i SP mode : 25Mbps (CBR) MPEG-2 MP@H-14 - 1440 x 1080 / 59.94i, 50i
Recording Format (Audio)	LPCM (16 bits, 48 kHz, 2Ch)
Recording Capacity	HQ mode : Approx. 100 min. with SBP-32 (32 GB) memory card Approx. 50 min. with SBP-16 (16 GB) memory card Approx. 25 min. with SBP-8 (8 GB) memory card SP mode : Approx. 140 min. with SBP-32 (32 GB) memory card Approx. 70 min. with SBP-16 (16 GB) memory card Approx. 35 min. with SBP-8 (8 GB) memory card
Optional Accessories
Optional Accessories	MEAD-SD02 (Not for medical use)
