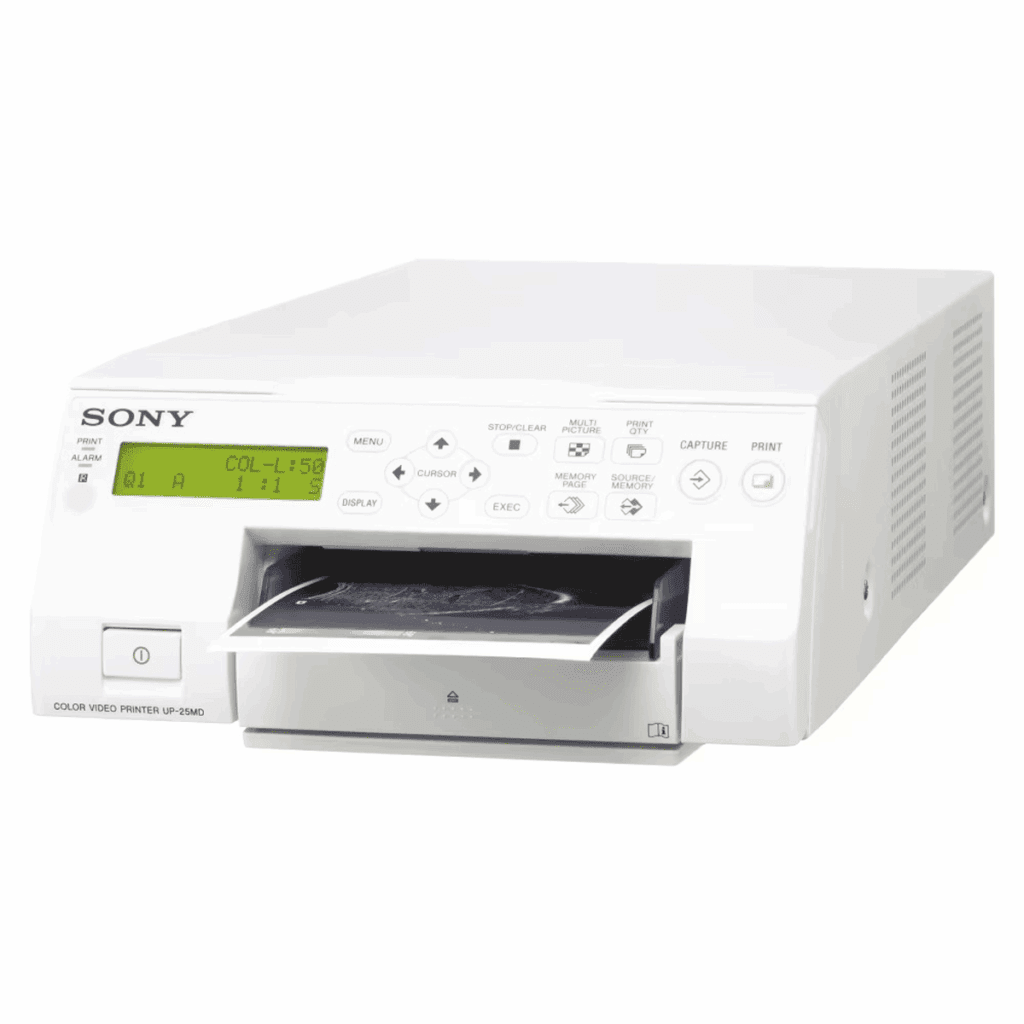

Sony UP-25MD

Sony UP-25MD A6 Analog Color Printer

  • Slim Compact Design
  • Ideal for Medical Carts; Easily Integrated
  • Versatile Analog Video Inputs and Outputs
  • HDTV signal support – 1080i and 720p automatically
  • PAL & NTSC compatible, all standard interfaces
  • RS-232 Control
  • High resolution – 423 dpi, New LCD Front Panel Screen design
  • Two color settings can be set from the front panel
  • LED indicates data transmission and ribbon cartridge status

Contact us directly for Volume Order Pricing and Shipping Rates. We offer special pricing and discounts on custom requirements and requests from Healthcare & Health System, Government, Purchasing Group facilities and OEM’s (Original Equipment Manufacturers).

SKU: SONY UP25MD Categories: , Tags: , , , , Brand:

Description

Sony UP-25MD A6 Analog Color Printer

Sony UP-25MD is a high quality printer designed for medical applications such as ultrasound and dental applications. The Sony UP-25MD features a variety of analog video inputs for standard definition as well as high definition signals and is compatible with a wide range of medical imaging devices.

The Sony UP25MD printer’s photo-quality dye sublimation technology ensures that prints are durable and long-lasting. It is compatible with our traditional UPC-21S/L media series and the self-laminating media UPC-24SA/LA. It seals and protects printed images against environmental hazards. Colors can be adjusted using RGB or HSV color spaces to match monitor output and to optimize color reproduction accuracy.

About Sony Medical

Sony Electronics Inc. is a leading provider of innovative medical products designed for use in a wide range of applications as a stand-alone hardware solution, or for incorporation into integrated medical systems. Medical imaging offerings include dry film imagers, printers, cameras, recorders and medical grade monitors for a full range of modalities.

Specifications



Printing method Dye sublimation thermal transfer
Resolution 423 dpi
Gradations 256 levels (8 bits) each for Yellow, Cyan, Magenta
Picture elements UPC-21L/24LA: 2,132 x 1,600 dots
UPC-21S/24SA: 1,600 x 1,260 dots
Picture area UPC-21L/24LA: 127.9 x 96.0 mm (5 1/8 x 3 3/4 inches)
UPC-21S/24SA: 96.0 x 75.6 mm (3 3/4 x 3 inches)
Printing time* UPC-21L: Approx. 29 sec
UPC-21S: Approx. 19 sec
UPC-24LA: Approx. 36 sec
UPC-24SA: Approx. 25 sec
TV system Select from NTSC/PAL signal system (using NTSC/PAL switch)
HDTV IN/OUT signals 1080i/59.94i, 1080/50i (2:1 interlace)
720/59.94p, 720/50p (progressive)
Paper tray capacity L size: max. 50 sheets
S size: max. 80 sheets
Interface RGB/Y/Pb/Pr (BNC) (×3): 0.7 Vp-p
SYNC ON G: 0.3 Vp-p, sync negative
SYNC (BNC) (×1): 0.3 to 4 Vp-p, sync negative
S VIDEO (4-pin mini-DIN) (×1):
Y: 1 Vp-p, sync negative
C: 0.286 Vp-p (NTSC), 0.3 Vp-p (PAL)
VIDEO (BNC) (×1) : 1 Vp-p, sync negative
Control connectors REMOTE 1: special mini jack (×1) for RM-5500 Remote Control Unit (not supplied)
REMOTE 2 (automatic printing connector)
: Stereo mini jack: (×1) for optional RM-91 Remote Control Unit or FS-24 Foot Switch
RS-232C (Computer control interface)
: D-sub 25-pin connector (×1)
Power requirements AC 100 V to 240 V, 50/60Hz
Input current 1.7 A to 1.0 A
Operating temperature 5°C to 35°C (41°F to 95°F)
Operating humidity 20% to 80% (no condensation allowed)
Storage and transport temperature -20°C to +60°C (-4°F to +140°F)
Storage and transport humidity 20% to 80% (no condensation allowed)
Dimensions 212 (W) x 98 (H) x 398 (D) mm, (8 3/8 x 3 7/8 x 15 5/8 inches)
Mass 5.7 kg (12 lb 6 oz)

Additional information

Weight 30 lbs
Dimensions 20 × 13 × 12 in
