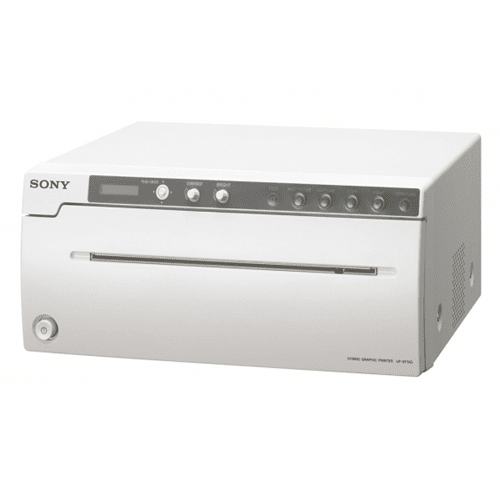

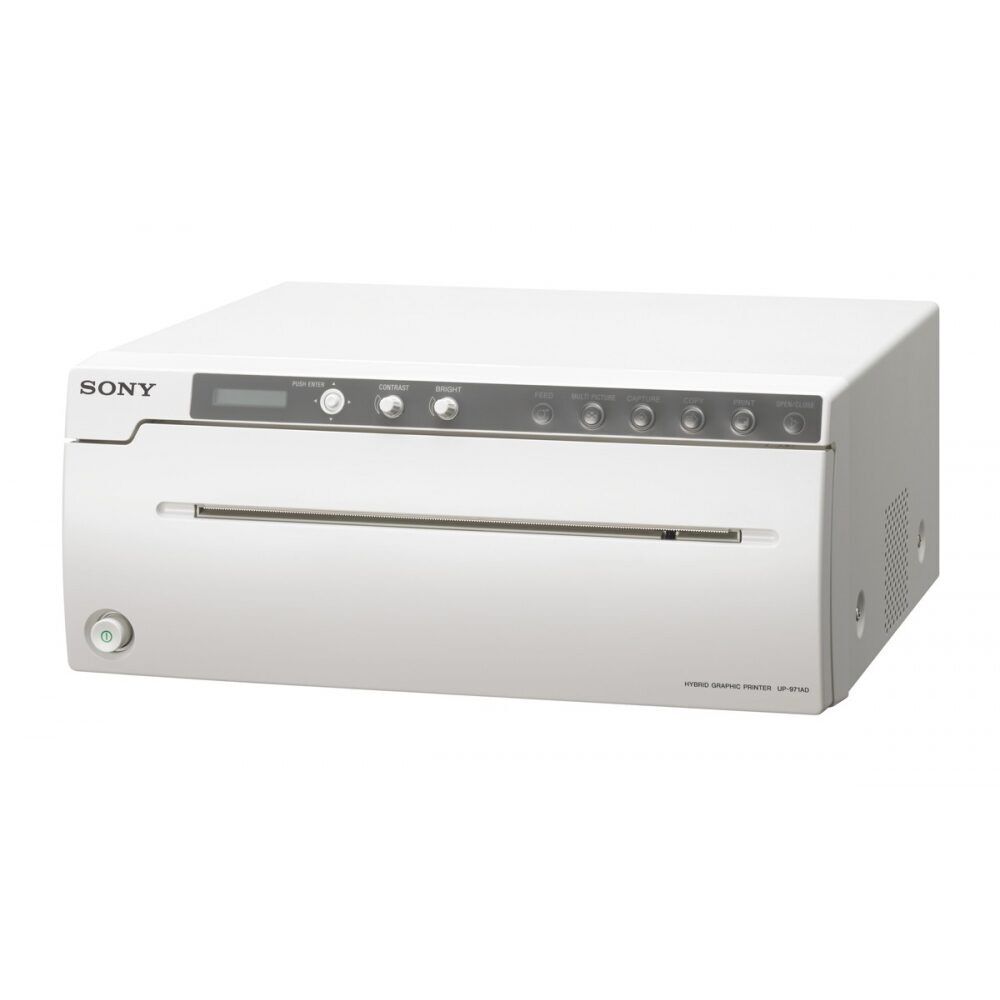

Sony UP-971AD A4 Black and White Hybrid Graphic Printer – Sales, Repair Service & Exchange
The Sony UP-971AD is a compact black and white printer designed for use with both analog and digital radiology imaging systems such as mobile C-arm, ultrasound, cardiac catheterization laboratory and other compatible medical imaging systems.
Sony UP-971AD Fast, high quality black & white printing from both analog and digital imaging inputs onto paper
The UP-971AD is smaller than its predecessor the UP-970AD. It provides high-quality hard copies of still images captured by the imaging system, that can then be used as reference prints for patient record purposes or referrals. (Please note that images printed from the Sony UP-971AD are not to be used for diagnosis).
Fast, high quality black & white printing from both analog and digital imaging inputs onto paper
Printing options are expanded with a choice of Multi-picture modes for multiple images on a single sheet, plus a panoramic printing capability to produce extra-wide images.
Sony UP-971AD Accepts both digital and analog video input signals
The Sony UP-971AD can receive digital as well as analog signals, allowing the printer to support both types of C-arm system. It also can receive signals from two different integrated systems – i.e. analog from a C-arm and digital from an ultrasound system.
High quality printing
Using Sony’s direct thermal printing technology, the Sony UP-971AD delivers photo-quality black & white prints with a high resolution of approximately 325 dpi. Print media options include UPP-210HD high-density paper or UPP-210SE standard paper.
Sony UP-971AD High speed printing
In standard mode, the Sony UP-971AD can deliver a print in approximately 8 seconds.
More compact, more visible
The Sony UP-971AD has a compact design with dimensions of approximately 316 (W) x 132.5 (H) x 265 (D) mm (12 1/2 x 5 1/4 x 12 inches) – 40mm smaller in depth than its predecessor. At the same time, the size of the LCD display panel is increased, and the control panel features a white LED backlight that offers clear visibility regardless of ambient light levels.
Enhanced operability
All function keys of the Sony UP-971AD are located on the front panel, allowing easy setup and operation when the printer is installed in a medical cart. In addition, separate knobs on the front panel allow easy adjustment of both contrast and brightness and an auto lock function that prevents inadvertent alteration of settings.
Multi-picture modes
As well as printing a single picture, the Sony UP-971AD also offers a choice of two-, four- and six-way split printing of images on a single sheet when connected to an analog video signal. The ‘Multi’ button on the front panel allows quick switching between ’Single-picture’ and ‘Multi-picture’ modes. With digital input signals, the printer can provide two or four split pictures on one sheet (NB: Multi button does not function with digital input).
Sony UP-971AD Panoramic printing
When connected to a digital signal, the Sony UP-971AD can produce panoramic prints up to a maximum of 600mm long.
Visual print quality control
Optimum print settings can be compared and chosen from a ‘collage’ print of nine pictures with different values for brightness, contrast, tone or sharpness.
Quick guide print
Quick instruction guides for different print operations can be selected, via the front control panel, and printed out for your easy reference so that you do not need to refer to the user manual.
Sony UP-971AD Wireless Printing Capability
The optional UPA-WU10 Wireless Print System allows cable-free connection between the UP-971AD and surgical endoscopes, ultrasound systems, and other hospital imaging modalities. This is ideal for busy clinical environments, where modalities are constantly being moved between different operating rooms and treatment rooms. This all-in-one wireless printing solution also resolves the problem of limited space on medical carts, allowing connection between a medical imaging modality and an “off-cart” printer without requiring a lengthy USB cable.
Compliance with Medical Safety Standards
This product is distributed to the US and EU as a medical device and satisfies product safety standards (e.g. IEC 60601-1).
