Description

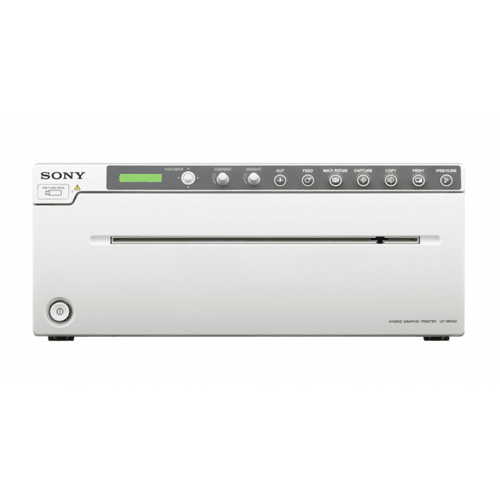

Sony UP-991AD A4 Analog and Digital Printer
Sony UP-991AD is a fast, high quality black & white printer that prints from both analog and digital imaging inputs onto paper or blue transparent film, with USB storage
The Sony UP-991AD is a compact black and white printer designed for use with both analogue and digital radiology imaging systems such as mobile C-arm, ultrasound, cardiac catheterization laboratory and other compatible medical imaging systems.
Smaller than its predecessor the UP-990AD, it provides high-quality hard copies of still images captured by the imaging system, that can then be used as reference prints for patient record purposes or referrals. (Please note that images printed from the Sony UP-991AD are not to be used for diagnosis).
Sony UP-991AD Accepts both digital and analog video input signals
The Sony UP-991AD can receive digital as well as analog signals, allowing the printer to support both types of C-arm system. It also can receive signals from two different integrated systems – i.e. analog from a C-arm and digital from an ultrasound system.
High quality printing
Using Sony’s direct thermal printing technology, the Sony UP-991AD delivers photo-quality black & white prints with a high resolution of approximately 325 dpi.
Sony UP-991AD High speed printing
In standard mode, the Sony UP-991AD can deliver a print in approximately 8 seconds.
More compact, more visible
The Sony UP-991AD has a compact design with dimensions of approximately 316 (W) x 132.5 (H) x 265 (D) mm (12 1/2 x 5 1/4 x 10 1/2 inches) – 40mm smaller in depth than its predecessor. At the same time, the size of the LCD display panel is increased, and the control panel features a white LED backlight that offers clear visibility regardless of ambient light levels.
Sony UP-991AD Enhanced operability
All function keys of the Sony UP-991AD are located on the front panel, allowing easy setup and operation when the printer is installed in a medical cart. In addition, separate knobs on the front panel allow easy adjustment of both contrast and brightness and an auto lock function that prevents inadvertent alteration of settings.
Automatic media cutter
The printer automatically cuts paper to size when printing is completed.
Sony UP-991AD Multi-picture modes
As well as printing a single picture, the Sony UP-991AD also offers a choice of two-, four- and six-way split printing of images on a single sheet when connected to an analog video signal. The ‘Multi’ button on the front panel allows quick switching between ’Single-picture’ and ‘Multi-picture’ modes. With digital input signals, the printer can provide two or four split pictures on one sheet (NB: Multi button does not function with digital input).
Panoramic printing
When connected to a digital signal, the Sony UP-991AD can produce panoramic prints up to a maximum of 600mm long.
Visual print quality control
Optimum print settings can be compared and chosen from a ‘collage’ print of nine pictures with different values for brightness, contrast, tone or sharpness.
Quick guide print
Quick instruction guides for different print operations can be selected via the front control panel. They can be printed out for easy reference without needing to refer to the user manual.**English only.
Sony UP-991AD USB flash drive storage
Offering even more flexible workflow than the UP-971AD, the Sony UP-991AD can store images on a connected USB flash drive and also print on UPT-210BL transparent blue film media as well as UPP-210SE standard paper or UPP-210HD high density print media.
Added convenience is provided by automatic detection of media type and an integrated media cutter, together with the same Multi-picture mode and panoramic print features of the UP-971AD.
Wireless Printing Capability*
The optional UPA-WU10 Wireless Print System allows cable-free connection between the UP-991AD and surgical endoscopes, ultrasound systems, and other hospital imaging modalities. This is ideal for busy clinical environments, where modalities are constantly being moved between different operating rooms and treatment rooms. This all-in-one wireless printing solution also resolves the problem of limited space on medical carts, allowing connection between a medical imaging modality and an “off-cart” printer without requiring a lengthy USB cable.
* This function is available to Sony digital printers with a 5-V USB-A output port. For more information regarding compatibility, please contact your nearest Sony office or an authorized dealer.
Sony UP-991AD Compliance with Medical Safety Standards
This product is distributed to the US and EU as a medical device and satisfies product safety standards (e.g. IEC 60601-1).
Sony Electronics Inc. is a leading provider of innovative medical products designed for use in a wide range of applications as a stand-alone hardware solution, or for incorporation into integrated medical systems. Medical imaging offerings include dry film imagers, printers, cameras, recorders and medical grade monitors for a full range of modalities.
Model: UP-991AD (UP991AD)
