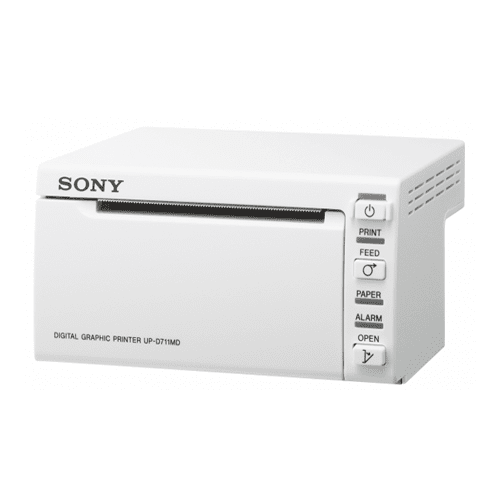

Sony UP-D711MD A7 Digital Black and White Thermal Printer – Sales, Repair Service & Exchange
Light, compact and easy to integrate, the Sony UP-D711MD monochrome digital graphic printer allows medical professionals to produce high-quality hard copies of ultrasound scans.
With a footprint of 140(W) × 70(H) mm and weighing just 1kg, the Sony UP-D711MD A7-size printer reflects latest industry trends towards size reduction of medical systems.
The Sony UP-D711MD is ideal for installation in clinical environments where space is limited or easy portability is required. UP-D711MD printing on easily-replaceable roll paper, it assures extremely high image quality to assist with clear, accurate analysis and interpretation of ultrasound scans.
Sony UP-D711MD Medical Grade Thermal Printer is Compact, Reliable and Economical and Offers Printing Convenience to Your Portable System
Compact, space-saving design for easy installation
Dimensions of the Sony UP-D711MD printer is just 140 (W) × 70 (H) × 125 (D) mm and a weight of just 1kg give greater installation freedom in a wide range of medical environments. Recessed space for cable connectors simplifies installation, even in tight spaces where access is limited.
High quality imaging
Proven thermal printing technology by Sony assures high quality monochrome prints with a resolution of approximately 300 dpi and 8-bit (256 levels) processing.
DC input
The Sony UP-D711MD printer is powered directly from a connected ultrasound system’s 12-24V DC source, eliminating the need for additional AC outlets.
Sony UP-D711MD energy efficient design with low power consumption
Energy consumption during printing and in standby is reduced by more than 50% compared with the previous model (UP-D897) – reducing power supply requirements in medical installations.
Choice of print media
Choose the most appropriate printing media for your needs. UPP-84HG High Glossy Printing Paper assures premium, near-photographic quality results. Reduce operating costs with UPP-84S High Quality Printing Paper that delivers excellent image quality at affordable cost.
Fast, easy paper loading
Open the paper door and drop in a new paper roll. Then simply close the door, and the printer’s ready to use in moments.
Sony UP-D711MD choice of print modes
Select from a choice of print sizes including 4:3 aspect ratio and panoramic 3:1 images that are ideal for dental applications. Print modes (including image orientation and reverse printing) can be set easily in the printer driver menu. Paper saving mode reduces media consumption when printing multiple images.
Image resize
Image data can be automatically enlarged to fit a preset printing area, reducing data transfer times with small image file sizes.
Print information
Print information – including contrast, brightness, gamma and sharpness information – can be optionally added above each printed image.
Sony UP-D711MD compliance with medical standards
This product is distributed to the US and EU as a medical device and satisfies product safety standards (e.g. IEC 60601-1).
Drawing on more than two decades of experience in medical printing, the Sony UP-D711MD shares the image quality, economy and reliability that are hallmarks of other printers in the Sony range.
Support
Model: UP-D711MD
