Sony UP-D897 Digital Graphic Printer

High-speed printing
Superior operability
Compact, small footprint design
Superb print quality and color at approximately 325-dpi resolution
Various printing paper line-ups

Limited Refurbished available!
Hiliex also offers a Repair/Service and Exchange Program

Description

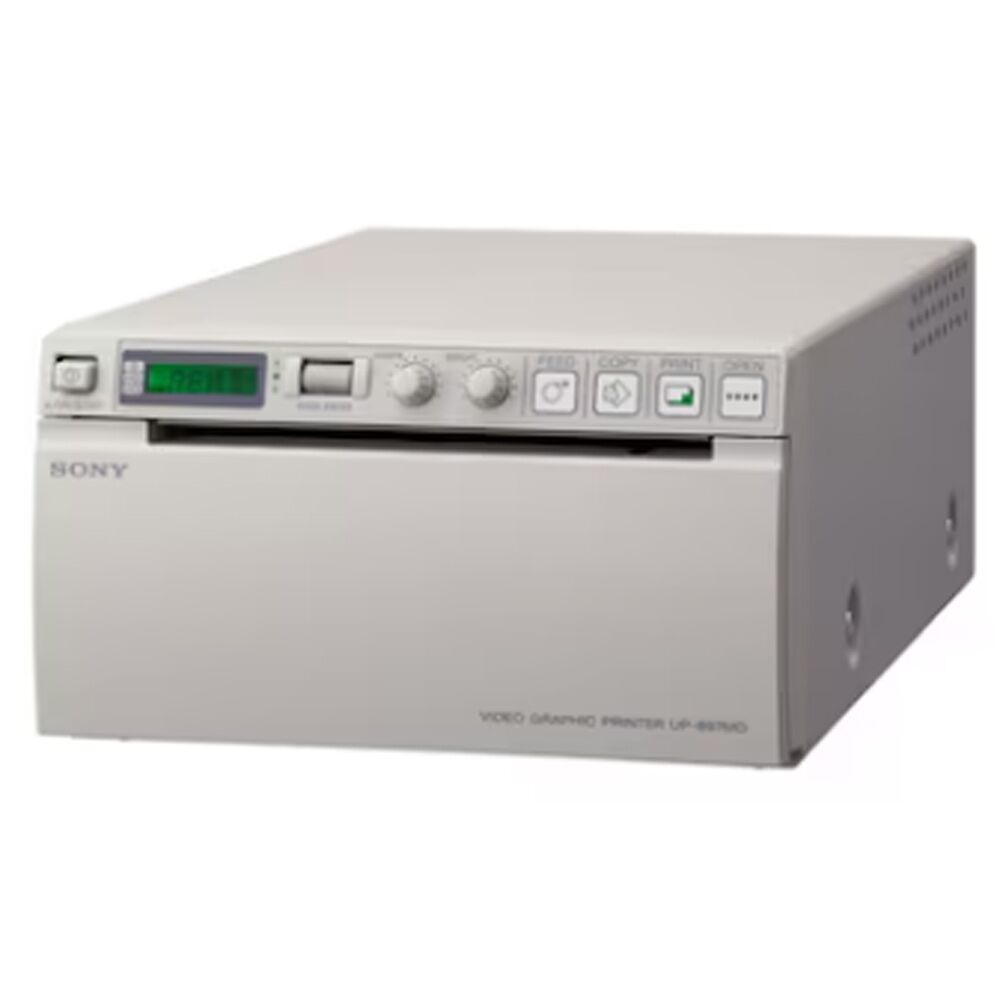

Sony UP-D897 Digital Graphic Printer

The Sony UP-D897 monochrome digital graphic printer – the successor to the well-received UP-D895 medical printer.

High-speed printing
The UP-D897 can produce A6-size prints with stunning speed in approximately two seconds. That is half the speed of conventional printers, making the UPD897 and the UP-897MD the fastest printers in its class.

Superior operability
A convenient front LCD display panel and Jog dial offer easy maintenance and flexible set up. Users can operate almost all settings, including designation of print paper type, by using the Jog dial on the front panel. Error messages and the type of print paper selected are displayed on the LCD, from which users can confirm them easily.

Compact, small footprint design
The UP-D897 have a compact and space-saving design with dimensions of approximately 154 (W) x 88 (H) x 240 (D) mm (6 1/6 x 3 1/2 x 9 1/2 inches). It’s approximately 23% smaller than conventional models, which enables them to fit easily into medical carts.

Superb print quality and color at approximately 325-dpi resolution
Incorporating Sony dye sublimation printing technology and a high print-head density, the UP-D897 can produce photo-quality prints with a high resolution of approximately 325 dpi and a gray level of 256 steps.

Various printing paper line-ups
Three types of printing paper have been prepared to meet the demands of various customers. One of them, the UPP-110HG High Glossy Printing Paper can produce high-quality, glossy, and near-photographic printing.

Medical regulations
The UP-D897 and the UP-897MD comply with medical regulations that are applicable to medical devices.

Universal powering system
The UP-D897 can operate with AC 100 V to 240 V power supplies, making them suitable for use all around the world.

Model: UPD897
Our service and repair center offers expert repairs!
Sony Support

Specifications

Thermal head	Thin-film thermal head, 1280 dots
Gradation	8-bit (256 levels) processing
Resolution	325 dpi
Picture elements	4096 x 1280 dots (max.)
Dot density	H: 12.8 dots /mm = 0.078 V: 12.8 dots /mm = 0.078 Square dots
Picture size	320 x 100 mm (max.)
Printing speed	Approx. 2 seconds/image (960 x 1280 dots) (printing at the high speed) Approx. 3.3 seconds/image (960 x 1280 dots) (printing at the normal speed)
Memory capacity	4096 x 1280 x 8 (bit)
Interface	Hi-Speed USB (USB 2.0)
Power requirement	100 to 240 V AC, 50/60 Hz
Input current	1.5 A to 0.8 A
Operating temperature	5 °C to 35 °C (41 °F to 176 °F)
Operating humidity	20% to 80%
Storage and transport temperature	-20 °C to 60 °C (-4 °F to 140 °F)
Storage and transport temperature	20% to 90%
Dimensions (W x H x D)	154 x 88 x 240 mm (6 1/6 x 3 1/2 x 9 1/2 inches)
Mass	2.6 kg (5 lb 11 oz) (printer only)
Safety standards	UL60950-1+CSA C22.2No.60950.1 +UL60601-1+CSA No.60601-1 FCC/IC Class A Digital Device EN60950-1+EN60601-1 EN55024+EN55022: Class B + EN60601-1-2 IEC60950-1+60601-1 C-Tick AS4252.1+AS3548 : Class B GB4943(IEC 950)+GB9254(CISPR 22) VCCI Class A +mains harmonic current regulation
Supplied accessories	Thermal head cleaning sheet (1) CD-ROM (including multi-lingual operating instructions Readme and printer driver) (1) USB cable (1)
