Sony UP-DF500 FilmStation Dry Film Imager – Sales, Repair Service & Exchange

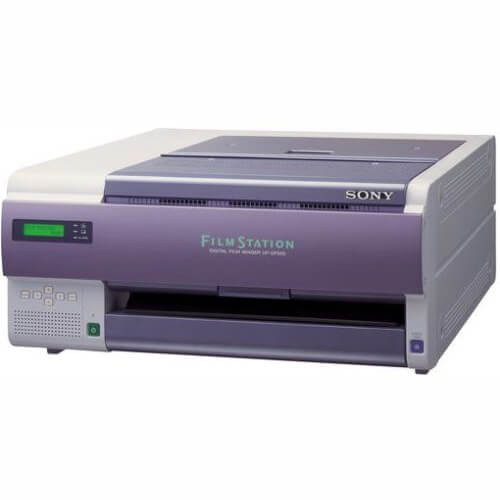

The Sony UP-DF500 FilmStation Dry Film Imager is the only imager of its kind to give you an installation choice of horizontal or vertical. Thanks to its compact size and vertical adaptability, this imager can be easily integrated into any radiology environment particularly where space is at a premium. In fact the Sony UP-DF500 FilmStation unit is so compact that it can be placed on a desktop in a traditional X-ray viewing room or in an empty slot beneath a doctor’s desk.
RELIABLE DIAGNOSTIC IMAGE QUALITY
Flexible design is only one of the enhanced features of the Sony UP-DF500 FilmStation printer. As a result of high-resolution 320dpi thermal head technology, Sony UP-DF500 FilmStation images are excellent in quality. 4,096 shades of gray contribute to the accuracy of every diagnosis, and a maximum density (D-Max) rating of greater than 3.2 produces outstanding contrast ratio and exceptional black levels. An automatic calibration feature delivers consistent image quality. Manual access to full calibration functions via the front panel controls adds user flexibility. These innovative features, plus a combination of default-fixed and user-programmable gamma settings, provide precise, diagnostic image output.
A WINNING COMBINATION OF FEATURES
By combining a newly developed print head with Sony’s new blue thermal film UPT-517BL, the Sony UP-DF500 Sony FilmStation unit offers an elevated level of image quality that was virtually impossible to achieve on a thermal printer – until now. Sony-engineered UPT-517BL thermal film media was specifically designed for use with the Sony Film Station printer. This newly formulized 14″x17″ Sony film maintains a careful balance of transparency and density to reproduce precise and stable diagnostic images. And with edge-to-edge printing, the Sony UP-DF500 Film Station imager maximizes the entire film surface for the most complete image coverage. An added feature called full-time head protection positions the Sony FilmStation imager’s print head in a park mode when idle, a feature that is ideal for mobile applications.
PLUS
FilmStation can hold up to 1,112 Images with it’s 7 gigabyte HD for image spooling ( 1,112 films of 12 up (512×512) 667 films of 20 Up (512×512))
THE FINISHING TOUCH: BUILT-IN DICOM COMPATIBILITY
The Sony UP-DF500 FilmStation imager was designed with a built-in Dicom 3.0 interface that can be accessed using a Windows® Laptop with an internet browser, making installation fast and simple. This interface also features an e-mail notification system that can automatically send out an e-mail when the Sony FilmStation unit has a technical problem.
Support
Model: UP-DF500
Contact Hiliex for Sony UP-DF500 Repair Service
Hiliex proudly presents Sony Medical Displays that range from full HD up to 4K resolution in 3D and 2D offering exceptional clarity, rich color and enhanced image structure. These Sony Surgical Displays help surgeons and OR staff see more details of complex surgical procedures.
Sony medical video cameras enable surgeons and clinical staff to capture color images during microscopy and open* surgical procedures. Surgeons in the OR can benefit from HD image quality in a compact camera head that integrates efficiently with modern surgical microscopes and slit lamp systems. Sony 3D medical cameras capture stereoscopic images in Full HD to provide improved depth perception and spatial orientation compared with 2D imaging.
Sony medical recorders and archiving solutions enable you to record, store and access surgical footage on the hospital network and beyond.
Sony medical printers delivers high-quality, lasting prints in applications, including ultrasound, radiology, endoscopy, ophthalmology and microsurgery. Sony print paper thermal media is designed to be a perfect match for your Sony medical printer. You’ll appreciate the difference with excellent image quality, contrast and smooth tonal gradations, while maximizing your Sony printer’s working life.
Sony medical delivers innovation across the imaging workflow, from leading 4K, 4K3D and 3D technologies – to the very latest in IP conversion to create smart digital operating rooms. We offer a wide range of medical devices to capture and view medical images, from cameras to 4K surgical monitors. For documentation, we provide recorders, printers and print media. This equipment is intended for use by qualified medical professionals only. Registration status as a medical device may vary, depending on country.
Additionally, our dedicated service and repair center ensures expert maintenance and repairs for all advanced medical imaging monitors, guaranteeing your equipment remains in peak condition for optimal patient care.
Ensure the optimal performance of your Sony UP-DF500 dry film imager with our comprehensive service and repair solutions. Our specialized technicians in our service and repair center are equipped to handle a wide range of peripherals, including Medical LCD’s, printers, cameras and recorders. Trust us to service & repair your imaging periphials to peak condition. To minimizing downtime ask about our exchange program.
