WIDE CW60N 6MP Diagnostic Color Display

  • 14-bits Grayscales for Precise Expression
  • Built-in IQ Sensor® II for DICOM Calibration
  • Luminance Uniformity Control (LUC)
  • Digital Ambient Control (DAC)

Description

WIDE CW60N 6MP Diagnostic Color Display – Sales, Repair Service & Exchange

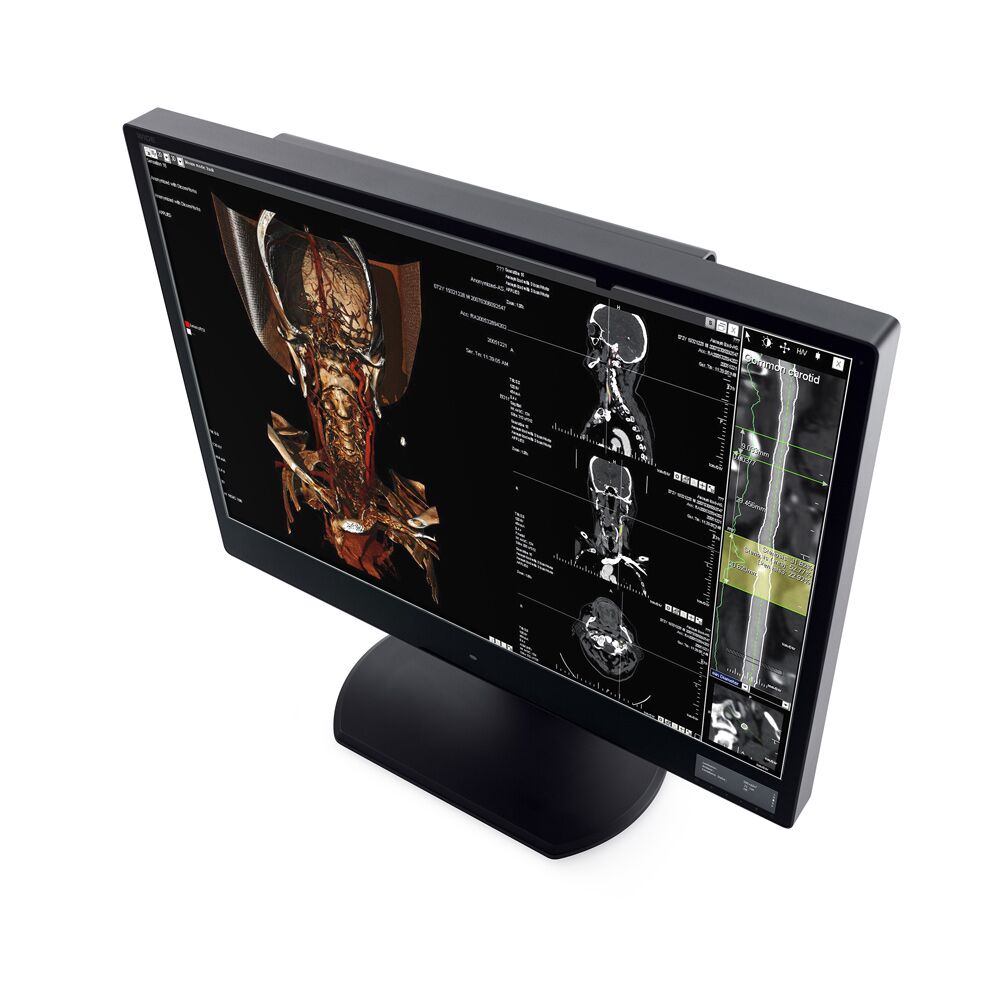

Experience unparalleled clarity and precision with the WIDE CW60N 6MP Diagnostic Color Display. Designed for medical professionals, this high-resolution display offers exceptional image quality, ensuring accurate diagnostics and enhanced patient care. Its user-friendly interface and robust build make it an essential tool for any clinical setting, while the advanced color calibration technology guarantees consistent and reliable performance. Elevate your diagnostic capabilities with the WIDE CW60N, where quality meets innovation.

Support

Model: CW60N
WIDE USA

Ensure the optimal performance of your WIDE IF1901MP 1MP diagnostic radiology display monitor with our comprehensive service and repair solutions. Our specialized technicians in our service and repair center are equipped to handle a wide range of peripherals, including Medical LCD’s, printers, cameras and recorders. Trust us to service & repair your imaging periphials to peak condition. To minimizing downtime ask about our exchange program.

Specifications

Model CW60N
LCD Panel TFT AMLCD IPS Color
Native Resolution 3280(H) x 2048(V)
Pixel Pitch 0.197mm x 0.197mm
Active Display Area 645.504mm x 403.0464mm (25.4” x 15.9”)
Active Screen Size (Diagonal) 761.0mm (30.0”)
Viewing Angle (Typ) 178º,178º at 10:1 Contrast Ratio
Brightness Max. (Typ) 1300cd/m²
Brightness Calibrated (Typ) 500cd/m²
Contrast Ratio (Typ) 2000:1
Bit Rate for Look-Up Table 14-bit
Digital Video Input DisplayPort x 2
Display Communication DDC2B (VESA Standard Compliance)
Universal Serial Bus (USB) 1 up and 2 down-streams
Power Supply AC Input 100-240Volt±10%/60Hz/50Hz±3Hz | DC Output +24V
Built-in Sensors IQ Sensor®, SBC¹, DAC², Human Sensor
Luminance Uniformity Control (LUC) Yes
Display Adjustments Menu, Enter, Down, Up, Lamp, Power
OSD Languages English
LED Light (AmbientLite®) Yes
LED Light (PrivateLite®) Yes
Power Consumption Max: 180W, Typcal : 110W
Tilt/Swivel/Height Adjustments -3º,+15º/±20º/110mm
Mounting Hole VESA Standard (100mm x 100mm)
Weight 19.66Kg (43.35lb) with Stand
Dimension 692.0mm(W) x 642.7mm(H) x 283.0mm(D)
Operational Temperature 0ºC to 40ºC (32ºF to 104ºF)
Operational Humidity 8% to 80%
Storage Temperature -20ºC to 60ºC (-4ºF to 140ºF)
Certifications and Standards ANSI/AAMI ES 60601-1, EN60601-1, IEC60601-1, CE, VCCI, KC, C-Tick, FCC
Screen Protection Protective Glass

Additional information

Manufacturer

WIDE

Model

CW60N
